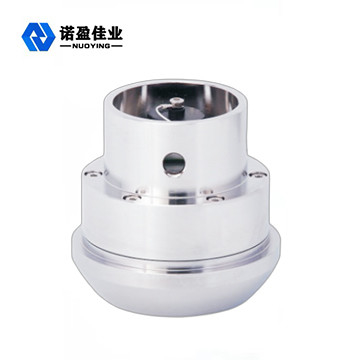

Corrosion Resistant IP66 NY660 Pressure Sensor Transmitter For Fracturing Truck

Corrosion Resistant IP66 NY660 Pressure Sensor Transmitter For Fracturing Truck
Corrosion Resistant IP66 NY660 Pressure Sensor Transmitter For Fracturing Truck

Large Image :  Corrosion Resistant IP66 NY660 Pressure Sensor Transmitter For Fracturing Truck

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NY660
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Corrosion Resistant IP66 NY660 Pressure Sensor Transmitter For Fracturing Truck

Description
Diaphragm Material: 316L Housing Material: 304, 316L Stainless Steel
Power Supply: 24(12-36)VDC Signal Output: 4-20mA , 0-5V, 0-10V, 0.5-4.5V
Environment Temperature: -30~+85℃ Overload Pressure: 150%FS
Electrical Connection: Six-core, Four-core Pressure Range: 200bar,400bar,600bar,1000bar,1200bar,1500bar
High Light:

Fracturing Truck Pressure Sensor Transmitter

,

Corrosion Resistant Level Sensor Transmitter

,

IP66 Tank Pressure Transmitter

Corrosion Resistant IP66 NY660 Pressure Transmitter For Fracturing Truck





NY660 pressure transmitter for fracturing truck is made of high quality imported elastomer and high precision pressure sensing core, encapsulated with stainless steel as a whole, with good moisture-proof sealing, factory tested for thousands of times fatigue impact, with fast dynamic response, high accuracy, anti-vibration, anti-fatigue, strong resistance to bias load, strong structure, corrosion resistance, etc.; the transmitter has built-in anti-interference amplification circuit, suitable for signal output under complex conditions. The product adopts spherical seal, easy to install, convenient to use and adapt to various exploration and mining working conditions.



NY660 Pressure Transmitter For Fracturing Truck Working Principle



The two pressures of the measured medium pass into the high and low pressure chamber and act on both sides of the isolation diaphragm of the δ element (i.e. sensitive element), which is transmitted to both sides of the pre-tensioned measuring wax piece through the diaphragm piece and the filling liquid inside the δ element, and the measuring diaphragm and the electrodes on both sides of the insulator each form a capacitor, and the measuring diaphragm is in the middle position when no pressure is passed into it or the two pressures are equal, and the capacitance of the two capacitors on both sides is equal.



NY660 Pressure Transmitter For Fracturing Truck Technical Parameters



Diaphragm material 316L
Housing material 304, 316L stainless steel
Power supply 24(12-36)VDC
Signal output 4-20mA , 0-5V, 0-10V, 0.5-4.5V
Environment temperature -30~+85℃
Medium temperature -25~+85℃
Storage temperature -40~+125℃
Compensation temperature 0~+65℃
Overload pressure 150%FS
Burst pressure 300%F.S
Response time ≤10ms
Electrical connection Six-core, four-core
Pressure range 200bar,400bar,600bar,1000bar,1200bar,1500bar
Comprehensive accuracy 0.25%FS ,0.5%FS ,1%FS
Protection level IP66



NY660 Pressure Transmitter For Fracturing Truck Design Feature



1. Anti-interference circuit, multiple signal outputs.

2. Stainless steel integral package, spherical seal.

3. Compact, corrosion resistant, and stable.

4. 316L all stainless steel, anti-clogging structure design.

5. Good anti-vibration, strong impact, good abrasion resistance.

6. Can replace similar imported products.
