Product Details:
|
| Protection Level: | IP67 | Medium Temperature: | -40~+140℃ |
|---|---|---|---|
| Process Pressure: | -0.1~4.0MPa | Power Supply: | 24VDC |
| Typical Application: | Conductive Liquid, Conductive Solid Powder, Can Be Installed Separately | Probe Type: | Insulated Flexible Cable PTFE,304 (optional) |
| Process Connection: | 3/4" BSPT Thread (standard) Flange Mount (optional) | ||
| High Light: | 24VDC RF Admittance Level Sensor,Anti Hanging RF Admittance Level Transmitter,Thread RF Admittance Type Level Sensor |
||

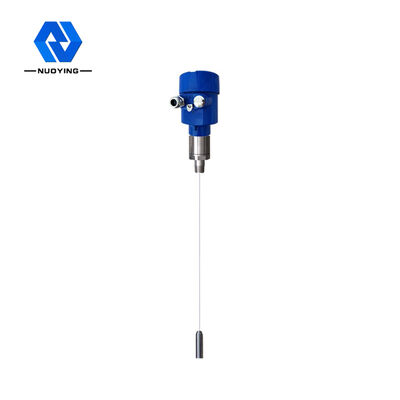

Anti-Hanging Material Maintenance-Free 24VDC NYSP-Z17 RF Admittance Level Transmitter
NYSP-Z17 RF Admittance Level Transmitter Working Principle
A change of the medium level will induce a change in the current of the applied sine wave.
From Z=1/2pfc, when the capacitance in the vessel increase, impedance will decrease and current will increase. Vice-versa, when the capacitance in the vessel is small, the impedance will increase and current will decrease accordingly.

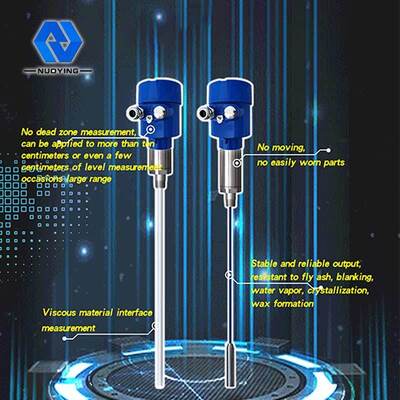

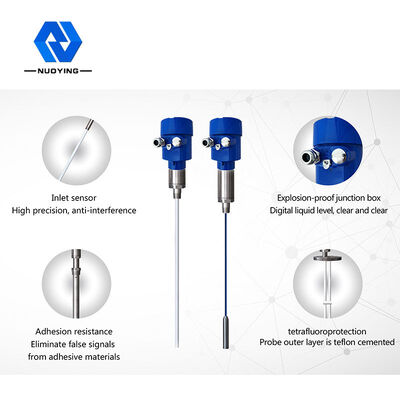

NYSP-Z17 RF Admittance Level Transmitter Design Feature
1. Anti-hanging material: Unique Driving-Shield circuit design improves anti-hanging material capability.
2. Power supply range: power supply operating range: 13 ~ 35VDC
3. Suitable for high temperature, high pressure and corrosive environment.
4. Not affected by noisy, dusty, misty and changes in the temperature.
5. No blind distance, ideal for different tanks.
6. Economic for large tanks.
NYSP-Z17 RF Admittance Level Transmitter Technical Parameters
| Typical application | Conductive liquid, conductive solid powder, can be installed separately |

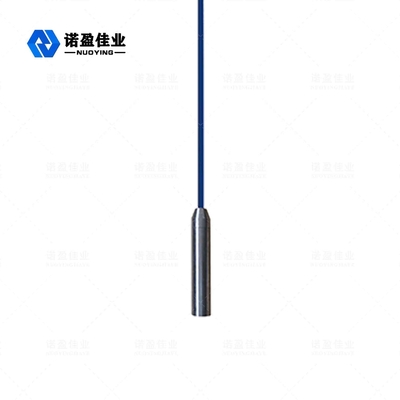

| Probe type | Insulated flexible cable PTFE,304 (optional) |
| Power supply | 24VDC |
| Medium temperature | -40~+140℃ |
| Process pressure | -0.1~4.0MPa |
| Process connection | 3/4" BSPT thread (standard) flange mount (optional) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT4 |
| Signal output | 4...20mA/HART/RS485/Modbus... |

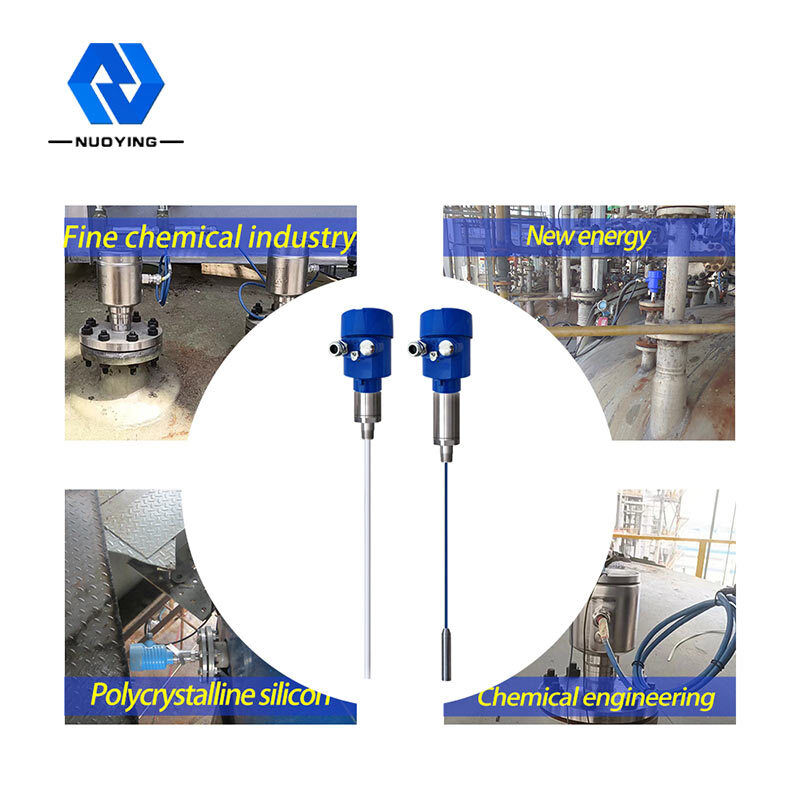

NYSP-Z17 RF Admittance Level Transmitter Application Field
1. Electrical and electronics industry, semiconductors, power plants.
2. Machinery, opto-electronics, process automation control.
3. Oil & Gas, petrochemicals,mining,iron and steel,cement.
4. Environmental protection water & wastewater treatment.
5. Food & Beverages, agriculture and feed stocks.
