Product Details:
|
| Typical Application: | Liquids | Measurement Range: | Upper Limit URL(0-4m;0-170m) |
|---|---|---|---|
| Power Supply: | 24VDC(±5%) | Process Temperature: | -10~+70℃ |
| Signal Output: | 4...20mADC/HART/RS485. | Damping Time: | 0.1～16s Adjustable |
| Diaphragm Material: | 316L, Ceramic Diaphragm (optional) | Explosion-proof Grade: | Exia II CT5、Exd II BT5(optional) |

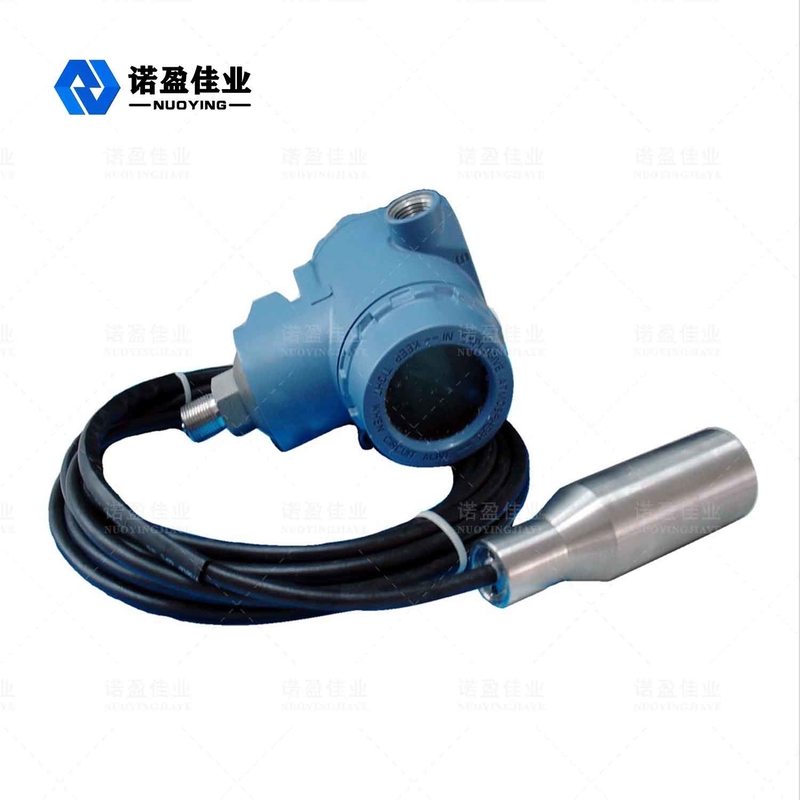

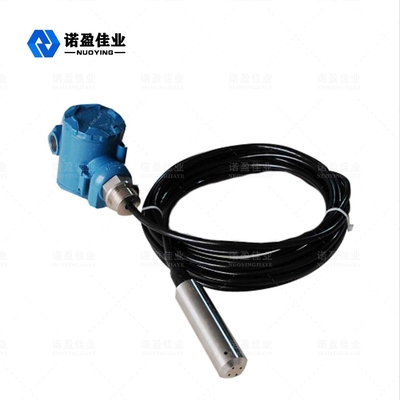

Hot Sale NH-93420-1 Liquid Level Transmitter Connected With Thread
NH-93420-1 Liquid Level Transmitter Working Principle
NH-93420 type is a submersible fuel level transducer suitable for differential fuel level and depth measurement. It consists of an imported TE piezoresistive sensing element encased in 316 SS housing. It’s all stainless steel, hermetically sealed housing make it suitable The given measuring ranges are also available in mbar, mFuel, mH2O, KPa and bar.for immersion in most industrial liquids and oils.
NH-93420-1 Liquid Level Transmitter Technical Parameters
| Typical application | Liquids (clean water, lubricants, corrosive liquids, etc.) |
| Measurement Range | upper limit URL(0-4m;0-170m) |
| Power supply | 24VDC(±5%) |
| Process temperature | -10~+70℃ |
| Signal Output | 4...20mADC/HART/RS485. |
| Damping time | 0.1～16s adjustable |
| Overload capacity | <(U-15)/0.02A |
| Diaphragm material | 316L, ceramic diaphragm (optional) |
| Case Material | Aluminum, stainless steel (optional) |
| Process connection | Flange, thread, Bracket installation (optional) |
| Protection level | IP68 |
| Explosion-proof grade | Exia II CT5,Exd II BT5(optional) |
| Stability performance | ±0.05%FS/year; ±0.1%FS/year |
| Live display | LCD (optional) |
NH-93420-1 Liquid Level Transmitter Design Feature
1. Good stability and high precision.
2. The structure is exquisite, it can be directly put into the measured medium to measure the liquid level, and it is very convenient to install and use.
3. Solid structure, no moving parts, high reliability and long service life. High-precision measurement can be performed from water, oil to paste with high viscosity, and is not affected by the foaming, deposition and electrical characteristics of the measured medium.
4. Wide range of temperature compensation.
5. With power supply reverse polarity protection and overload current limiting protection, anti-lightning, anti-radio frequency interference.
