Product Details:
|
| Typical Application: | -liquid | Probe Type: | P TFE |
|---|---|---|---|
| Power Supply: | 220VAC | Medium Temperature: | -184 ~+ 260℃ |
| Process Pressure: | -0.1~1.0 M Pa | Procedure Linkage: | Flange |
| Levels Of Protection: | IP 6 6 | Signal Output: | 4...20 MA |
| High Light: | PTFE Capacitance Level Gauge,RF Capacitance Level Gauge,220VAC Pressure Sensor Transmitter |
||

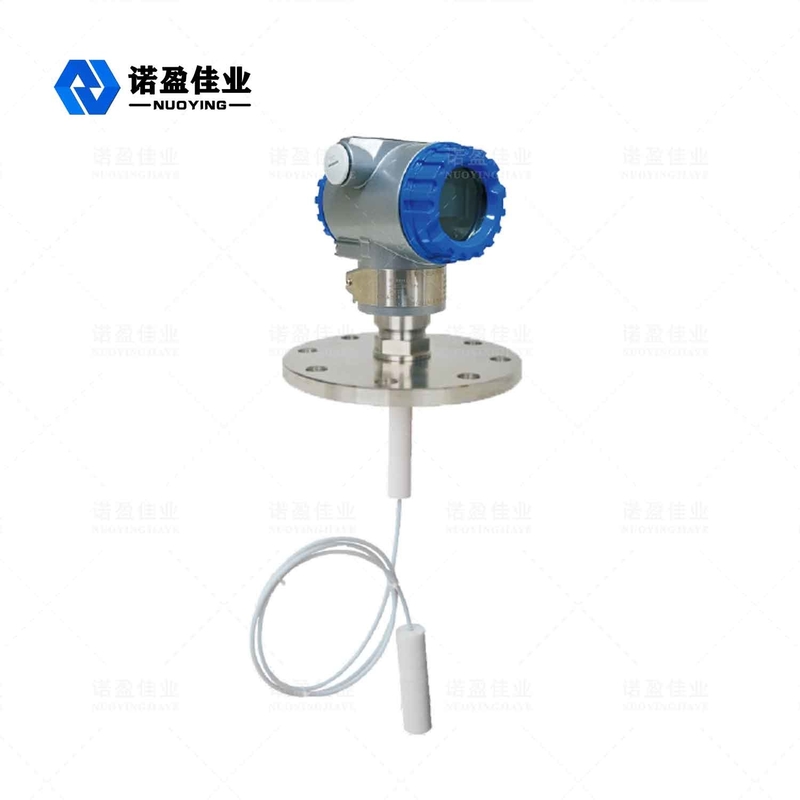

High Reliability RF Capacitance Level Gauge
The working Principle of High Reliability RF Capacitance Level Gauge
It can be used for the crossive liquid, the principle is that, it Applied a radio frequency to probe to determine impact of the surrounding. When air (dielectric constant is 1.0) is replaced by any other material (dielectric constant > 1.0), the change of capacitance value causes the change of impedance. This effect is measured by the circuit and then compared with the reference established by the sensitivity setting (circuit).
Design features of High Reliability RF Capacitance Level Gauge
◎ the modular converter is integrated with the sensor, with no moving parts, high reliability and strong anti-interference ability
◎ more widely applicable, with multiple probe forms, multiple process connection forms, and multiple manufacturing materials, which can be customized;
◎ installation, debugging and maintenance are extremely convenient
Technical parameters of RF Capacitance Level Gauge For Corrosive Liquid With Measuring Range 20m
| Typical application | Liquid, corrosive liquid, etc |
| product model | NYDR-3051 |
| Antenna Form | Cable,Rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 6m, 20m |
| Power Supply | 24VDC |
| signal output | 4...20mA/HART/ RS485/Modbus... |
| Process temperature | -40~+130℃,-184~+260℃ |
| Circuit temperature resistance | -40~+80℃ |
| Process pressure | -0.1~1.6MPa |
| Process connection | screw thread,flange(selectable) |
| time delay | 0-30s Continuously adjustable |
| Power loss protection | High /low mode, field adjustable |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68 |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
