4-20mA HART Diffused Silicon Pressure Transmitter for Petrochemical

4-20mA HART Diffused Silicon Pressure Transmitter for Petrochemical

Brand Name:	NUOYING
Model Number:	NY3051
MOQ:	1pcs
Price:	$218 to $269/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Applications:

Liquid, Gas, Steam

Process Temperature:

-25~+125°C

Power Supply:

24VDC(+30%)

Procedure Linkage:

Thread, Flange (optional)

Housing Material:

Aluminum, Stainless Steel(optional)

Protection/explosion Class:

Exia Ll CT6(optional)

Accuracy:

0.05%-0.1%FS

Process Pressure:

-0.1~2.0MPa

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

Digital Display Type 24VDC NP-93420-IX Pressure Sensor Transmitter Connected With Thread

NP-93420-IX Pressure Sensor Transmitter Working Principle

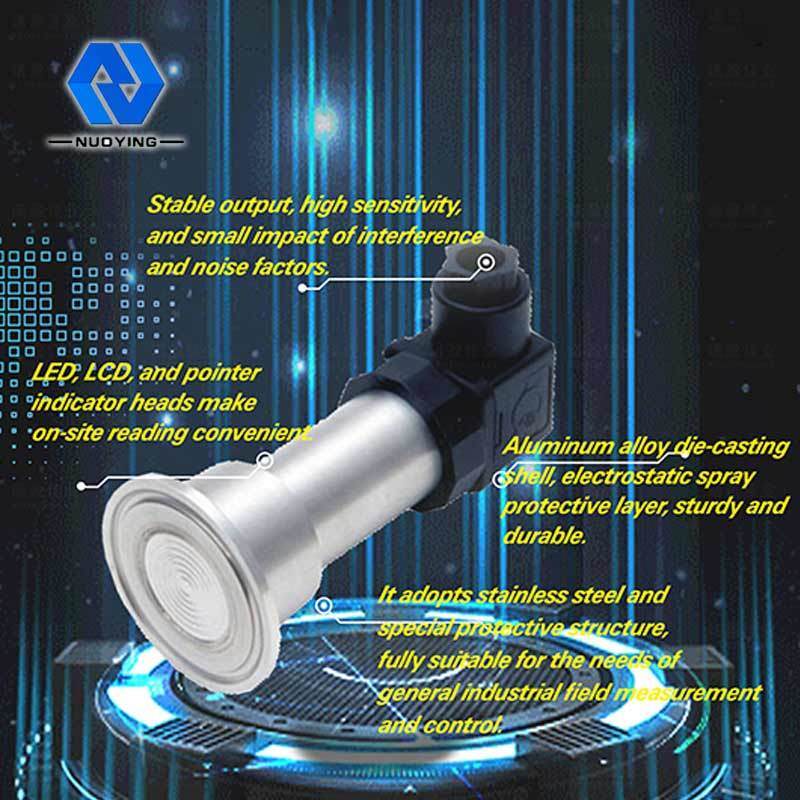

NP93420 series diffusion silicon pressure sensor all use imported chips, after careful structural design, signal processing and assembly, and in strict accordance with national standards for testing and production of a new generation of pressure sensors. The series of products have stable output, high sensitivity and accuracy, and good temperature characteristics, and strong anti-interference ability.

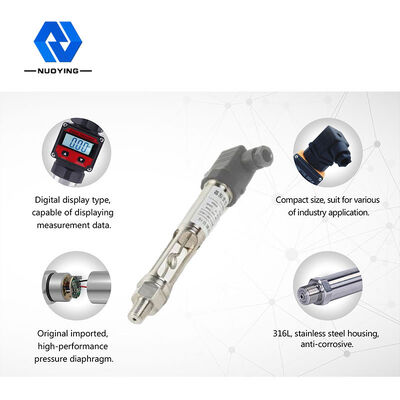

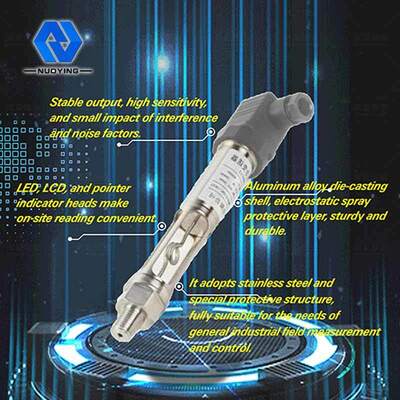

NP-93420-IX Pressure Sensor Transmitter Design Feature

1. 4-20mA DC two-wire signal transmission, strong anti-interference ability, long transmission distance.

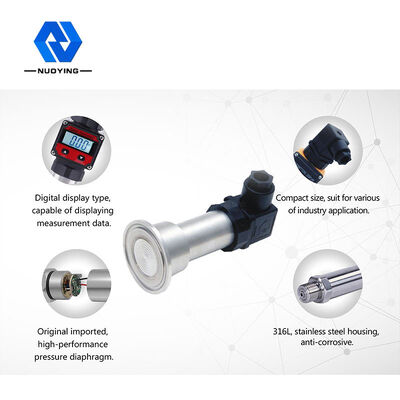

2. LED, LCD, pointer three kinds of indication meter head, field reading is very convenient. Can be used to measure viscous, crystalline and corrosive media.

3. When applied to dangerous and explosive fields, the diffusion silicon pressure transmitter is used, the product has the characteristics of low current, low voltage, low power consumption, etc. It is an intrinsically safe explosion-proof product, and is equipped with an explosion-proof certificate.

4. The use of stainless steel and special protective structure, and amplification circuit of lightning, anti-jamming, anti-over-voltage, over-current and a series of protection means to improve the reliable sealing corrosion and resistance to harsh working environment, fully suitable for general industrial site measurement and control needs.

NP-93420-IX Pressure Sensor Transmitter Techncial Parameters

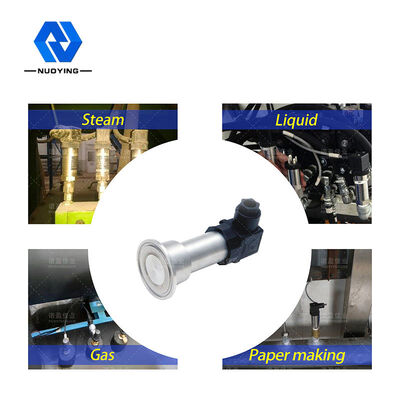

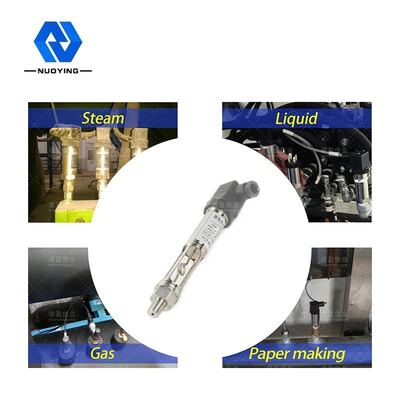

Typical application	liquid, gas, steam
Measurement Range	upper limit URL
Power supply	(12-36)VDC(±30%)
Environment temperature	-40~+85℃
Process temperature	-25~+125℃(>+125℃ can be customized)
Signal Output	4...20mADC/HART/RS485.
Damping time	0.1～16s adjustable
Allowable overload	Less than or equal to twice the rated range
Long-term stability	≤±0.2%F.S/year
Accuracy Level	0.1 grade,0.2 grade
Housing material	Aluminum, stainless steel (optional)
Process connection	Flange, thread (optional)
Protection level	IP65(optional)
Explosion-proof grade	Exia II CT6,Exd II BT5(optional)
