Product Details:
|
| Pressure Range: | 0-2000 Bar | Pressure Type: | Gauge Pressure Absolute Pressure Sealed Pressure |
|---|---|---|---|
| Output: | 4-20mA | Power Supply: | 24VDC |
| Process Connection: | Thread | Working Temp.: | 0℃-250℃ |
| Warranty: | One Year | Response Time: | ≤10 Ms |
| High Light: | 2000 Bar Pressure Sensor Transmitter,24VDC Thread Pressure Sensor Transmitter,2000 Bar DP Pressure Transmitter |
||

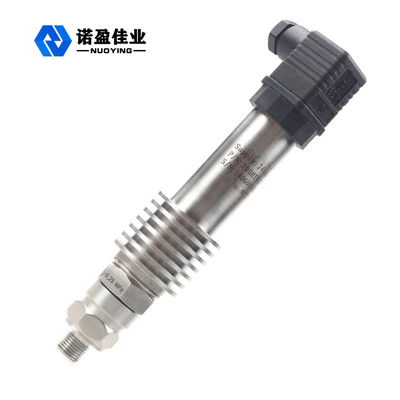

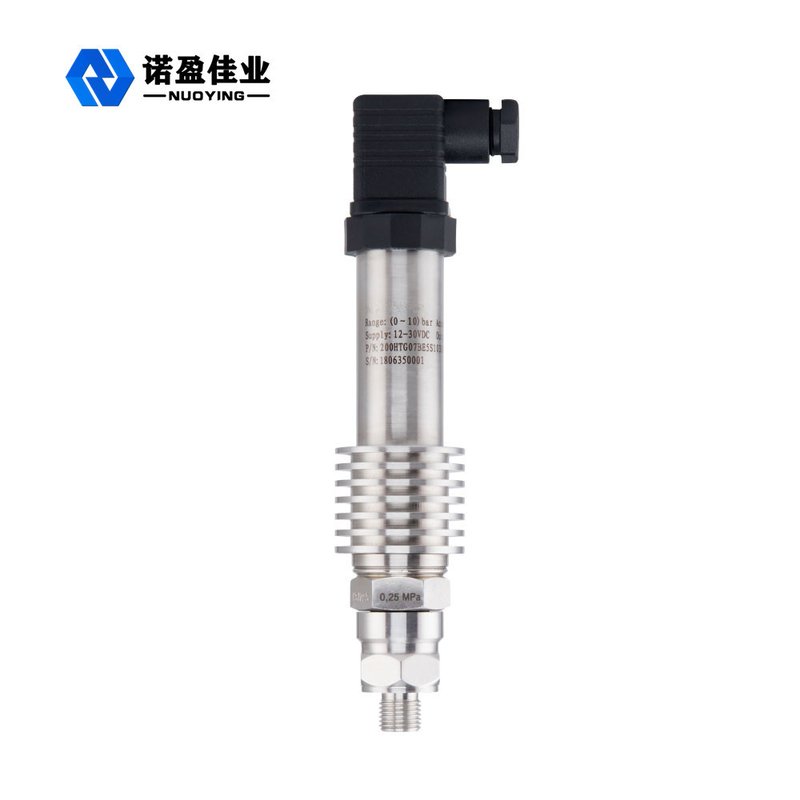

High Temperature Liquid 4-20mA Pressure Sensor Transmitter
High Temperature Liquid 4-20mA Pressure Sensor Transmitter Description:
High Temperature Liquid 4-20mA Pressure Sensor Transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.
High Temperature Liquid 4-20mA Pressure Sensor Transmitter Technical Parameters:
| Pressure range | 0~1 bar...2000 bar optional |
| Output | 4~20mA ,0〜5V/1~5V/0.5~4.5V |
| Power supply | 12VDC-30VDC |
| Accuracy | 0.5%F.S; 1%F.S optional |
| Pressure port | M20X1.5 male or by customized |
| Electronic Port | DIN Hirschman or directly cable IP67 |
| Working temperature | -10°C~+125°C ,-60°C~+200°C |
| Temp Compensation | 0~85°C; 0°C~100°C(customized) |
| Zero TGmp Drift | 0.03%FS/°C(<100kPa), 0.02%FS/°C(>100kPa) |
| Overload | 200%F.S |
| Burst Overload | 400%F.S |

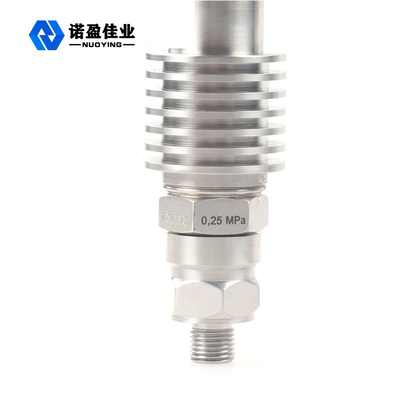

| Cooling device | with cooling device for max 125°C or 200°C |
High Temperature Liquid 4-20mA Pressure Sensor Transmitter Features:
1.DigitalASIC, accuracy and stability
2.Drift affect small
3.Excellent long-term stability
4.Excellent anti-jamming capability
5.Overvoltage overcurrent protection, reverse polarity protection
6.Excellent selection of imported sensors core
High Temperature Liquid 4-20mA Pressure Sensor Transmitter Other Specification:

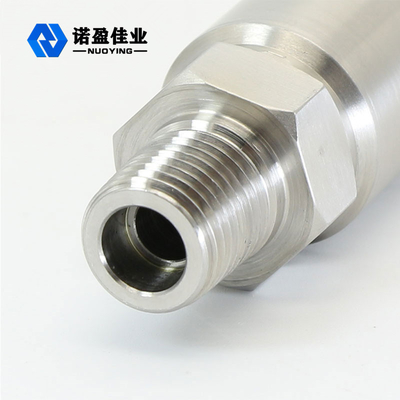

1.Process connection: M20 × 1.5 external thread (standard) (optional other connections)
2.Material: 316L stainless steel wetted materials; Shell: 304
3.Protection class: IP 65
4. Medium temperature: -30 ~ 80 ℃
5. Ambient temperature: -40 ~ 80 ℃
6. Storage temperature: -40 ~ 100 ℃
7. Earthquake: 108 RMS (25 ~ 2000HZ)
8.Ex: Ex ia IIC T6 intrinsically safe
9.Current Limit: The maximum current-24mA; voltage-largest 5mA 10.Certification: CE, ISO
11.Installation position: vertical installation is recommended, as there will be other installation extremely slight zero offset
High Temperature Liquid 4-20mA Pressure Sensor Transmitter Application:
Industrial field pressure control process, supporting the automotive, central air conditioning, refrigeration equipment, water treatment works, environmental purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media. Different pressure and electrical connections can be selected.
