Product Details:
|
| Output: | 4-20mA/0-5V/RS485 | Supply Power: | 12~30Vdc/7-30V |
|---|---|---|---|
| Accuracy: | 0.25%FS | Working Temp: | -20℃~+85℃ |
| Overload Pressure: | 200% F.S. | Burst Pressure: | 300% F.S. |
| Medium Compatible: | 316L SST, PTFE,Titanium Alloy Optional | Warranty: | One Year |
| Highlight: | 30VDC Liquid Pressure Transmitter,316L Liquid Pressure Transmitter,12VDC Stainless Steel Pressure Transmitter |
||

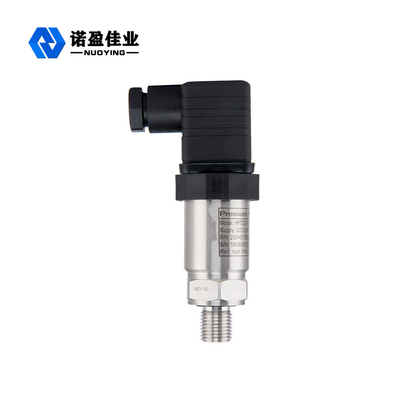

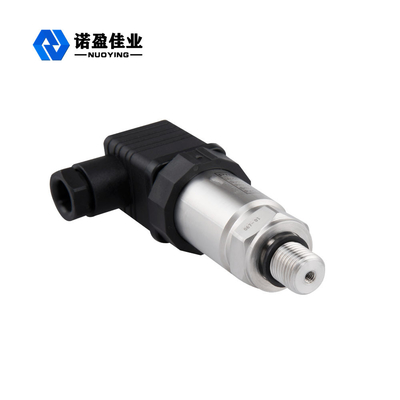

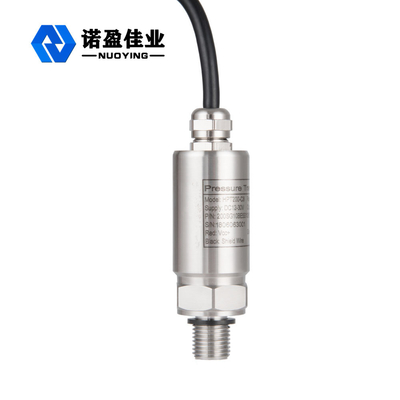

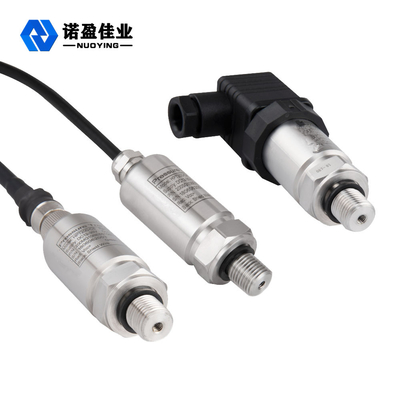

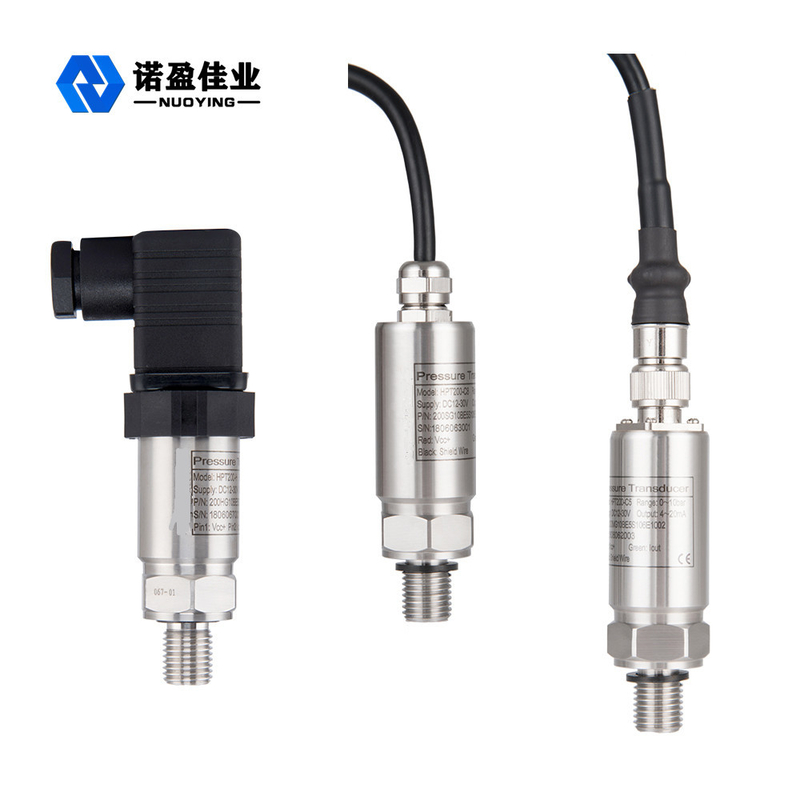

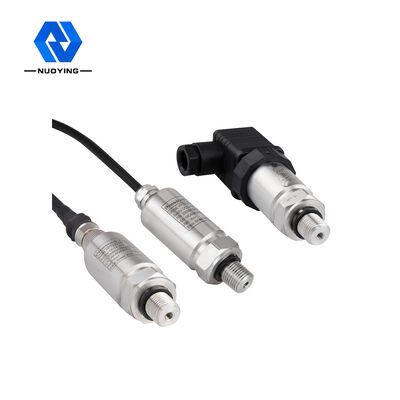

Low Cost Liquid Pressure Sensor Transmitter
Low Cost Liquid Pressure Sensor Transmitter Description:
Low Cost Liquid Pressure Sensor Transmitter use high quality imported U.S.A MEAS TE piezoresistive pressure sensor, ensure that the factory accuracy better than 0.25%F.S. and the service life is 2-3 times as long as the similar products. It is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.
Low Cost Liquid Pressure Sensor Transmitter Technical Parameters:
|
Pressure range: | -1-0-0.1 bar... 1000 bar optional |
| Output: | 4~20mA,0~5V/0~10V .Hart protocol | |
| Power supply: | 12VDC-30VDC | |
| Pressure port: | G1/4", 1/8"NPT, M20*1.5 or by customized | |
| Accuracy : | 0.25%F.S; 0.5%F.S optional | |
| Working temperature: | -40°C~+85°C | |
| Certificate: | CE.Exiall CT6 Ga ,ATEX, |
| Feature | Advantage | Benefit |
| It offers process connection ,electronical connection range accuracy options | All the standard industry output signals, the most common international process connections and a wide number of electrical connections | It can be suited to the widest range of applications. |
| Lightning surge reverse protection | Short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection | Running reliable and longlasting in harsh condition |
| The vent with a filter | Breath atmospher and protect moisture enter transducer | Without maintenance, even in the most humid environments. |
| USA TE Chip,Digital PCB board | High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure | Stability,keep sensor running longer by reducing downtime and maintenance costs |
| Lowe-Power output signals | Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V | energy-saving and environmental protection |
| 316L diaphragm | Anti-corrision ,wear resistance , shock resistance | Make it suitable for immersion for a long time in most industrial liquids |
| Suction water filter design | 8 pore design Anti-blocking Prevent plugging rate increases more than 80% | Simple maintenance ,easy to cleaning and installation |
Low Cost Liquid Pressure Sensor Transmitter Features:
