Product Details:
|
| Pressure Range:: | -0.1~100MPa | Output Signal: | 4-20mA,RS485 |
|---|---|---|---|
| Overload Pressure: | 200%F.S | Linearity: | 0.03% |
| Supply Power: | 9-36VDC | Long-term Stability: | ±0.2%F.S/y |
| Full Load Power: | 2W | Load Capacity: | ≤500Ω |
| High Light: | RS485 Pipe Pressure Sensor Transmitter,Pressure Sensor Transmitter 100MPa,100MPa RS485 Pressure Transmitter |
||

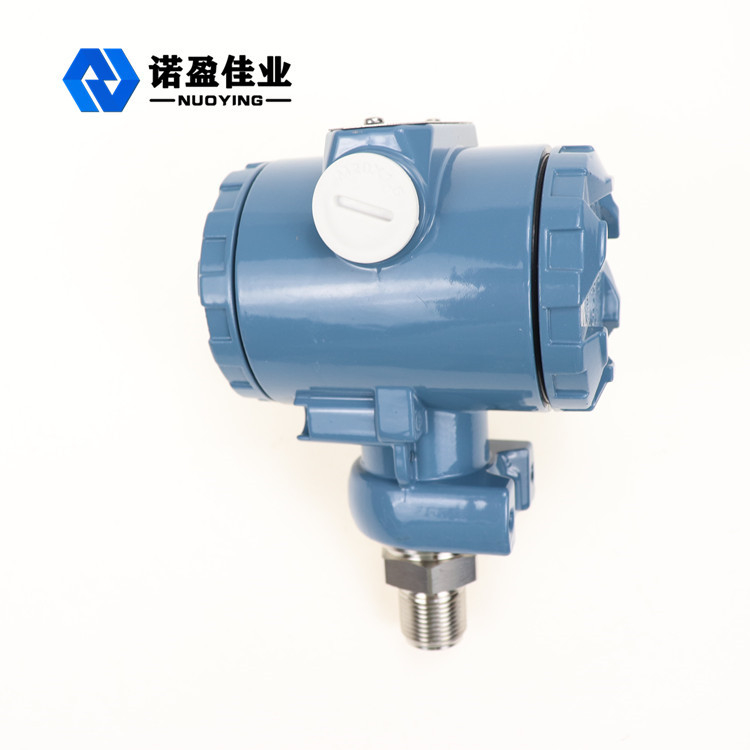

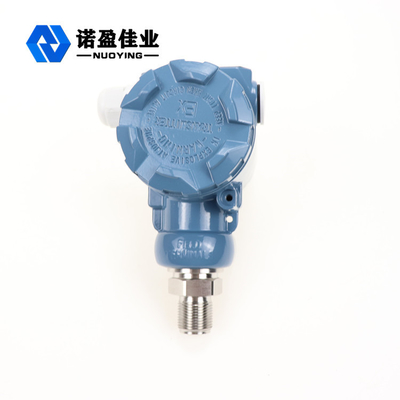

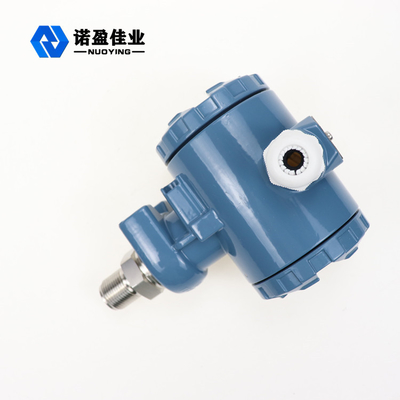

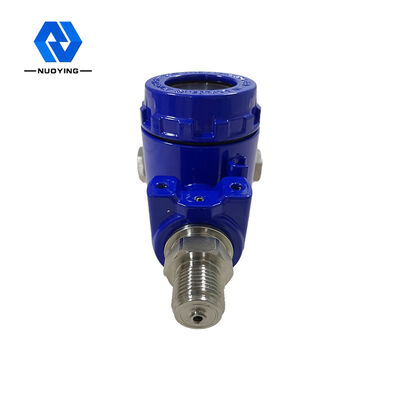

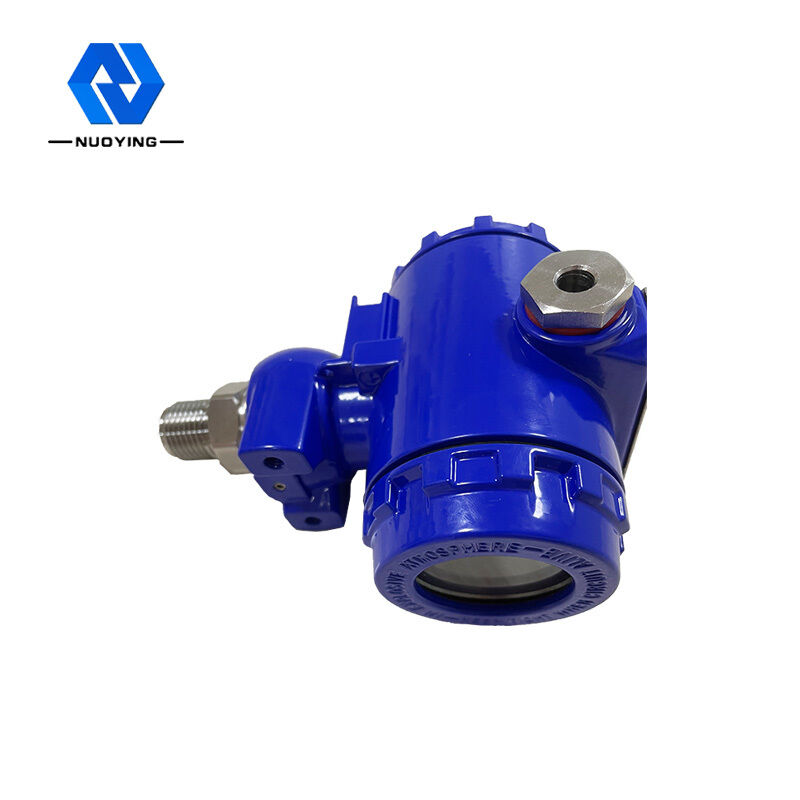

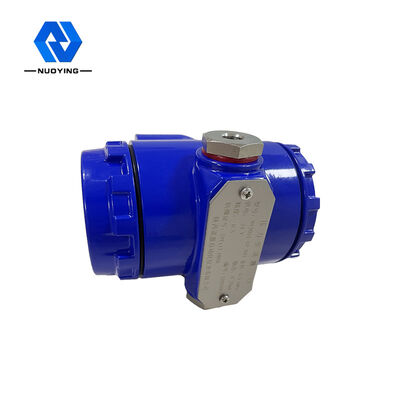

Water Pipe Explosion Proof Pressure Transmitter
Water Pipe Explosion Proof Pressure Transmitter Description:
Water Pipe Explosion Proof Pressure Transmitter series smart pressure transmitter with advanced, mature, reliable Piezoresistive Silicon Sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement techniques. Its LCD can display many physical parameters such as pressure, temperature, current. It can be realized zero adjustment, range settings and other features by key-press operation, and easy to on-site tests.

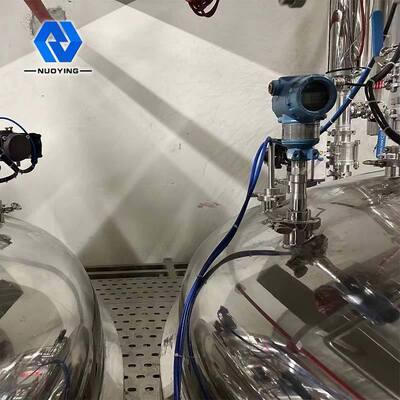

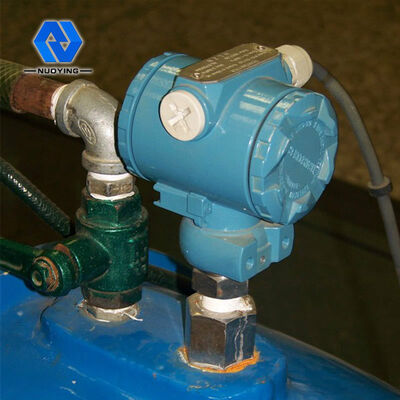

Water Pipe Explosion Proof Pressure Transmitter supports HART, FF H1, Profibus PA, Profibus DP protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.
Water Pipe Explosion Proof Pressure Transmitter Technical Parameters:
| Basic Parameter | |
| Measure object | liquid,gas,stream |
| Power | 9～32V dc (FF , PA) 9～17.5VDC (FF,PA; explosion-proof) 11.9～42VDC (HART) |
| 11.9～30VDC (HART; explosion-proof) | |
| Output | Analog:2 wire 4～20mA |
| Digital:HART,FF and PA signal | |
| Load resistant | 0～1500ohm (common) |
| 250～550ohm (use HART) | |
| Insulation | Voltage between terminal and housing:500Vrms (707VDC) |

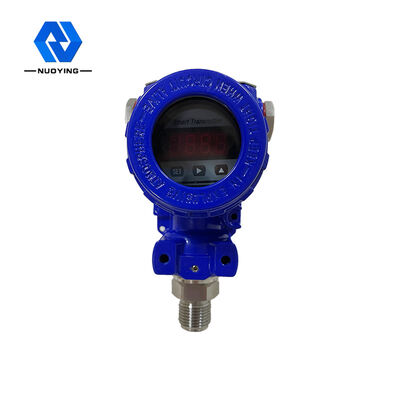

| Display | Optional 6 bits digital number or 5 bits characters LCD display |
| Temperature | Work temperature: -40 ～ 85℃ (without display) |
| -30 ～ 70℃ (with display) | |
| -30 ～ 60℃(explosion-proof IC) | |
| Store temperature: -40 ～ 100℃ (without display) | |
| -40 ～ 85℃ (with display) | |
| Humidity scale | 5%～100%RH |
| Start time | ≤ 5 seconds |
| Refresh time | 0.2 seconds |
| Dump adjusting | Constant of time 0～15 seconds |
| Performance Specification | |
| Precision | ±0.075% of the select range. If the select range <1/10 maximum of the range, the precision is ±[0.025+0.005× (maximum range/select |
| range)]% of select range | |
| Temperature Effect | Effect of every change of 28℃ (50℉) |
| Select range ≥0.1 maximum range:±[0.019% of maximum range +0.125% of select range] ; | |
| Select range ＜0.1 maximum range:±[0.025% of maximum range+0.125% | |
| of select range]. | |
| Long Time Stability | In 12 months, ±0.1% of maximum range |
| Static Pressure Effect | ±0.25%/13.8MPa of maximum range |
| Location Installed Effect | The maximum of the zero point movement is 0.24kPa |
| Power Effect | < 0.005%/V of range calibrated |
| Explosion-proof | intrinsically safety Ex ia II C T4 |
| Proof Level | IP65 |
| Vibration Effect | IEC 60068-2-6 Environmental testing - Part 2: Tests - Test Fc: Vibration (sinusoidal) |
| Electromagnetic Compatibility | IEC 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity |
| test | |
| IEC 61000-4-3 Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, | |
| electromagnetic field immunity test | |
| IEC 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst | |
| immunity test | |
| IEC 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted | |
| disturbances, induced by radio-frequency fields | |
| IEC 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field | |
| immunity test | |
Water Pipe Explosion Proof Pressure Transmitter Features:
