Product Details:
|
| Pressure Range: | 0-700Kpa | Accuracy: | 0.2%FS |
|---|---|---|---|
| Material: | 316sensor | Analog Output: | Two Wire 4-20mADC |
| Power Supply Supply Voltage: | 12.5-45VDC | Capability Change: | Less Than 0.16cm3 |
| Medium Temperature: | -40~104℃ | ||
| High Light: | CE Smart Differential Pressure Transmitter,Smart Differential Pressure Transmitter 45VDC,45VDC two wire Pressure Transmitter |
||

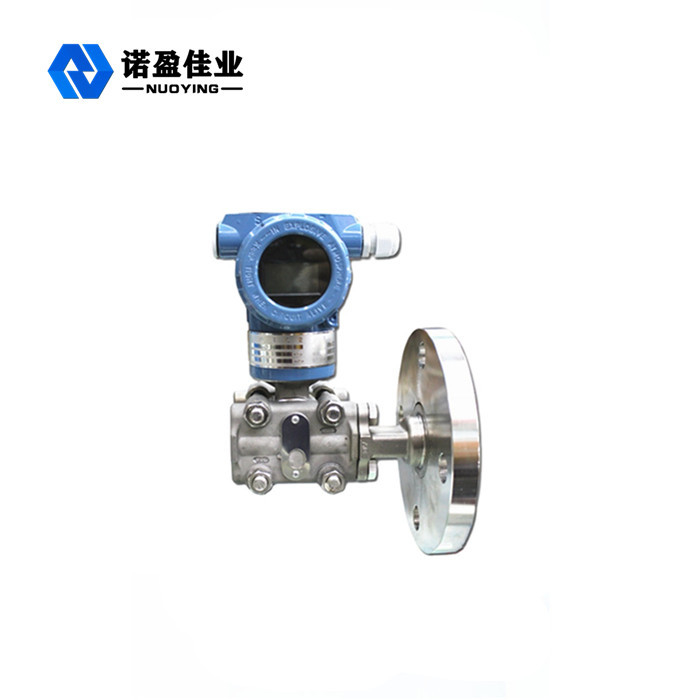

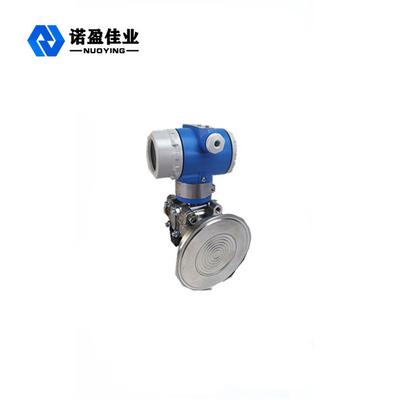

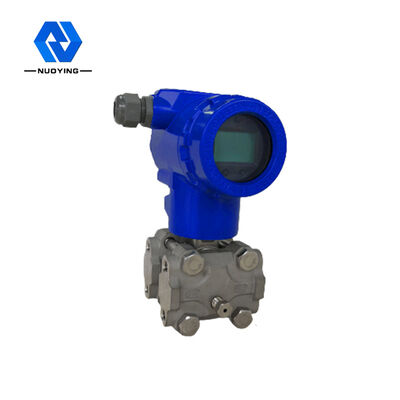

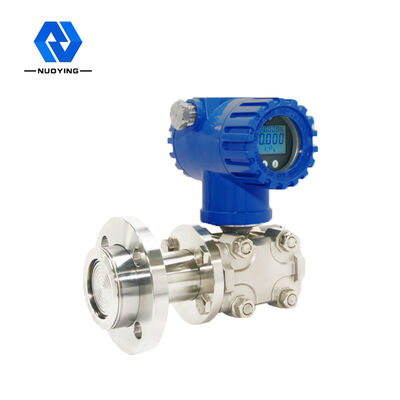

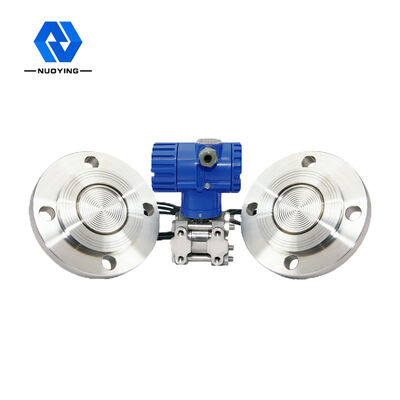

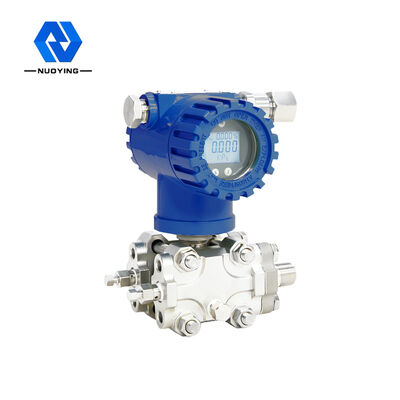

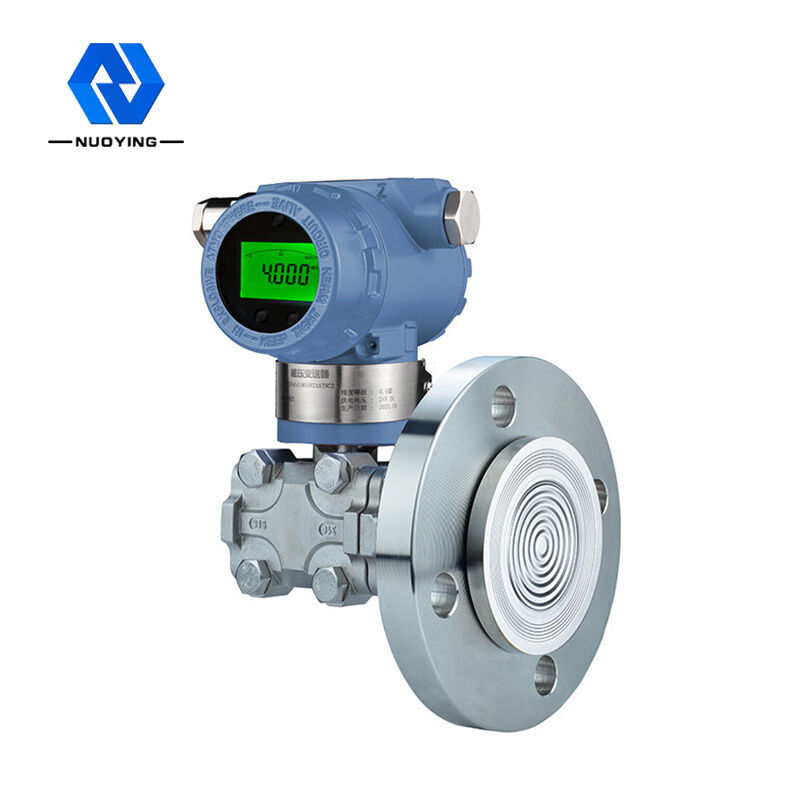

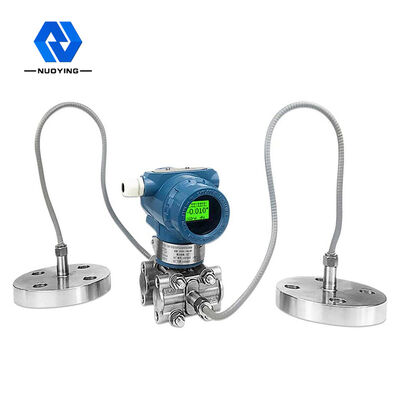

Liquid Smart Differential Pressure Transmitter Sensor
Liquid Smart Differential Pressure Transmitter Sensor Description:
Liquid Differential Pressure Transmitter Sensor is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.
Liquid Smart Differential Pressure Transmitter Sensor Parameters:
| Range code | Range | Measuring range | |
| Min. | Max. | ||
| 4 | 0.374KPa | 37.4KPa | -37.4~37.4KPa |
| 5 | 1.868KPa | 186.8KPa | -186.8~186.8KPa |
| 6 | 6.9KPa | 690KPa | -690~690KPa |
| 7 | 20.68KPa | 2068KPa | -2068~2068KPa |
| Output | Analog output: two -wire 4-20mADC |
| Digital output: two -wire 4-20mADC and superimposing variable digital signal accord with HART | |
| Power supply | supply voltage 24VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Q,not more than 600Q |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Display | 4 digital display,5 digit LCD display, pointer type. |
| Explosion-proof | ExiallCT5;explosion suppression type |
| Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
| Temperature | ambient temperature -40-85°C(When choose LCD : -20- 70© |
| Medium temperature | -40 〜104°C |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure)〜31.2MPa (gauge pressure) |
| Relative humidity | 5 〜98%RH |
| Run-up time | less than 5 sec. |
| Capability change | Less than 0.16cm3 |
| Damp adjust | 0.20 〜25 second |
| Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Configuration protection | To avoid the datas are modified random, can utilize software or protect switch lock the record data |
Liquid Smart Differential Pressure Transmitter Sensor Features:
Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times
Liquid Smart Differential Pressure Transmitter Sensor Application:
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
