Product Details:
|
| Pressure: | Normal Pressure | Connection: | DN25 |
|---|---|---|---|
| Output: | 4-20mA | Center To Center Distance: | 150mm-6000mm |
| Supply Power: | 24VDC | Temperature: | <120°C |
| Meterial: | 304 | Protection Class: | IP65 |
| High Light: | DN25 side mounted magnetic level indicator,magnetic level indicator IP65,SS304 magnetic oil level indicator |
||

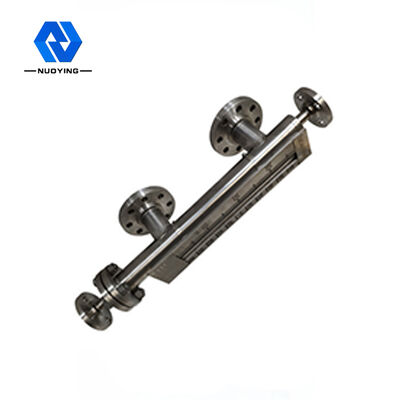

Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank
Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank Description:

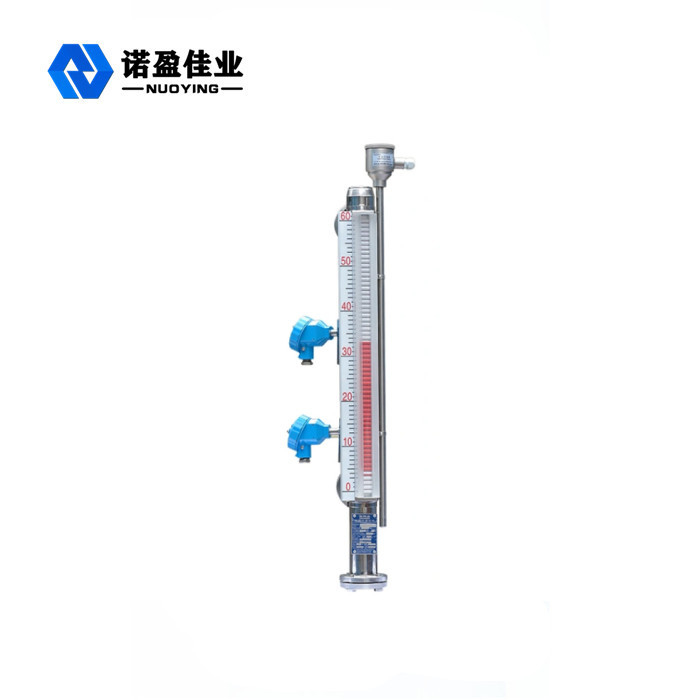

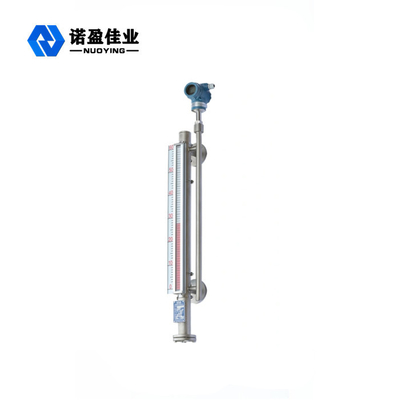

The NYUHZ-A type magnetic flap liquid level transmitter is made up of measuring body,dual-colored display cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). Based on buoyance principle, the magnetic ball in the body of the level indicator is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisym metric structures. The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level, it also could measure the interface of the two kinds of liquid.
Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank Parameters:
| Center-center distance: | 150~6000mm |
| Material: | SS304 |
| Process connection: | DN25 |

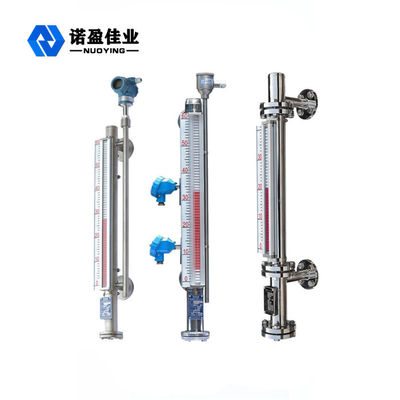

| Indicator types: | |
| A: Al &ABS flap cylinder | B: Al flap plate |
| C: PVC ABS flap cylinder | D: PP&ABS flap cylinder |
| E: AL &LED | F: PP&LED |
| Structure of top chamber: | 1.Welding cover |
| 2.flange with DN25 flange | |
| 3.welding cover with air valve | |
| 4.flange with air valve | |
| Structure of bottom chamber: | 1.flange cover |
| 2.flange with drain plug screw | |
| 3.with DN25 flange | |
| 4.with needle/ball valve | |
| Protection class: | IP65 |
Side Mounted Magnetic Oil Tank Level Sensor Water Tank Level Gauge Indicator For Tank Applications:
Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry,food, wine industry etc.,
suitable for level measurements under the environment of high/lowtemp., high pressure, strong corrosion, toxicity.
