Product Details:
|
| Range: | 300--5500mm | Pressure: | 2.0Mpa |
|---|---|---|---|
| Temp.: | -20--80°C | Protection: | IP65 |
| Display: | Local Display | Material: | SS |
| Medium Density: | ≥0.55g/cm3 | ||
| High Light: | 2Mpa Magnetic Level Transmitter,Vertical magnetic float type level gauge,2Mpa magnetic flap level gauge |
||

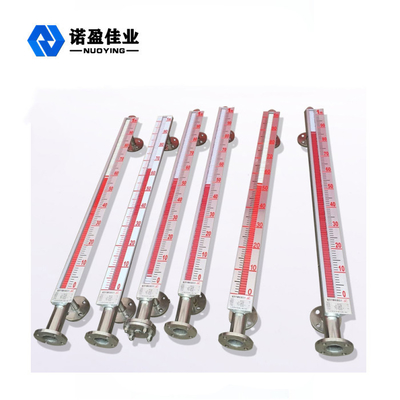

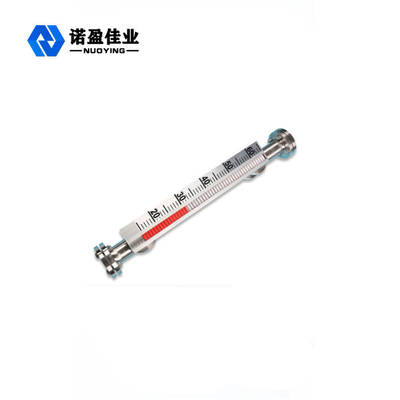

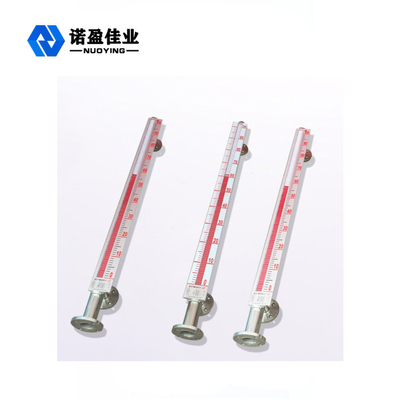

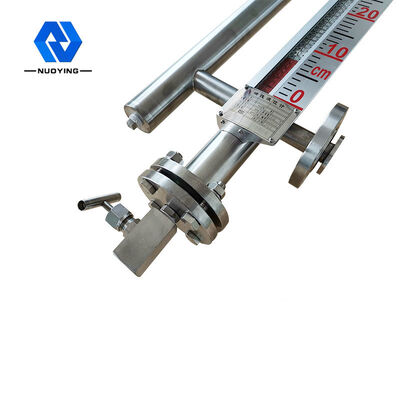

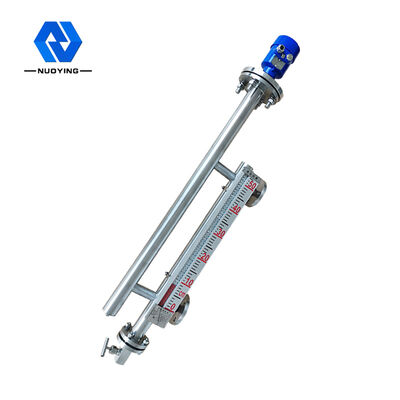

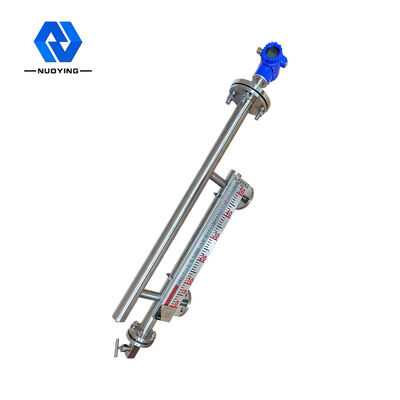

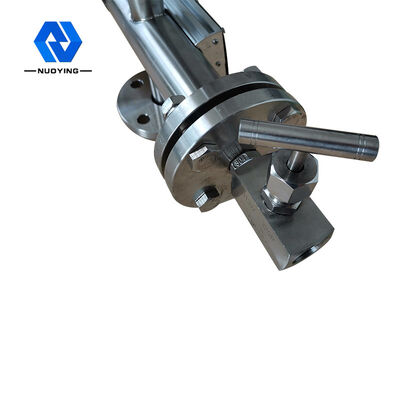

Magnetic Level MeterVertical Float Switch
Magnetic Level MeterVertical Float Switch Description:
Magnetic flap level gauge is widely used in petroleum,chemical industry,oil field ,pharmaceuticals industry,food,wine industry etc,suitable for level measurements under the environment of high/low temp, high pressure,strong corrosion,toxicity.
Magnetic Level MeterVertical Float Switch Parameters:
| Center-center distance | 150~6000mm |
| Medium density | 0.45g/cm3 |
| Nominal pressure | PN2.5~PN40 (x 0.1MPa) |
| Material | 304,0Cr18Ni9+PTFE, |
| Operating temperature | -190 ~ +200℃ |
| Process connection | DNxx/RF/14 |
| Bottom structure | Blind flange(please note if need PTFE liner valve) |
| Protection class | IP65 |
Magnetic Level MeterVertical Float Switch Features:
1.Simple structure, good stability, reliability and durability.
2.Isolated medium, indicator, transmitter and switch
3.Wide range of operating pressure: vacuum to 42Mpa
4.Wide range of operating temperature: -190°C to 425 °C
5.Independent of medium’s physical and chemical states.
6.SPST or SPDT available
7.Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or HART) and realize remote control and measurements.
8.Two-wire level transducer can be with 0.56" LED digital indicator for night observation.
9.It is available to form intergrated valve group with the base to save installation space.
