Product Details:
|
| Range: | 300~6000mm | Power Supply: | 24VDC |
|---|---|---|---|
| Work Pressure: | ≤ 10MPa | Material: | 316SS |
| Temperature: | -20~450℃ | Medium Density: | ≥0.45g/cm3 |
| Grade: | Industrial | ||
| Highlight: | 24VDC Magnetic Flapper Level Gauge,Magnetic Flapper Level Gauge 6000mm,24VDC magnetic fuel level indicator |
||

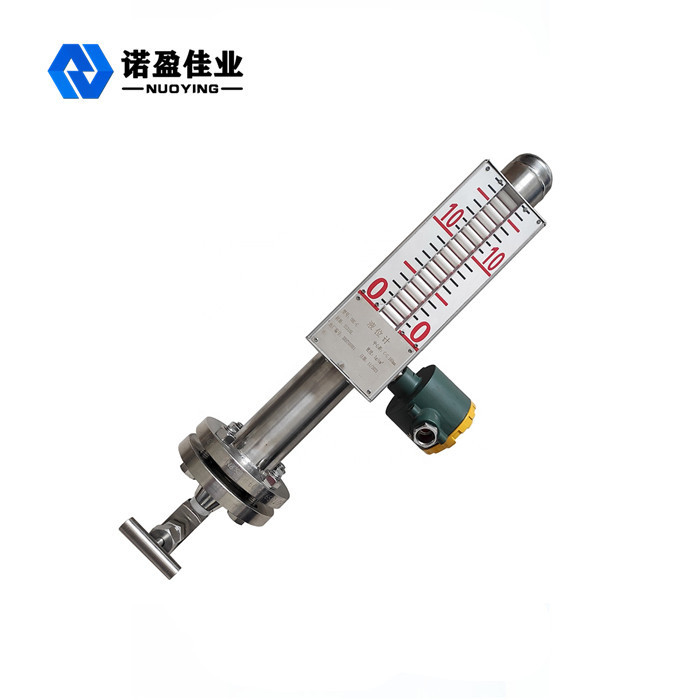

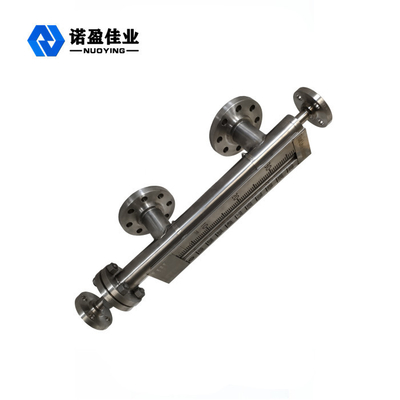

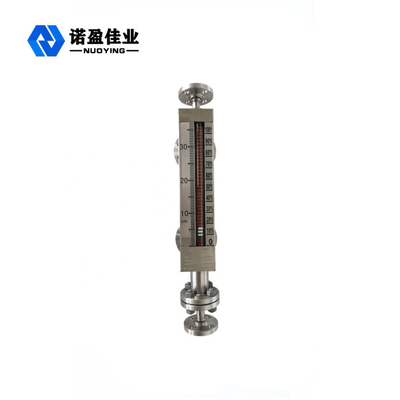

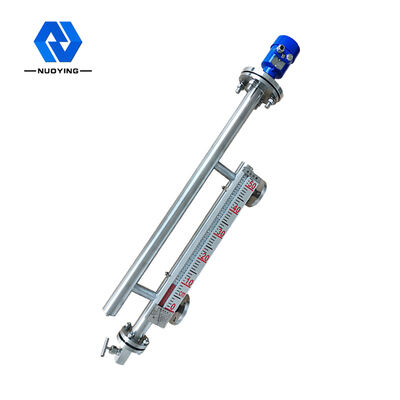

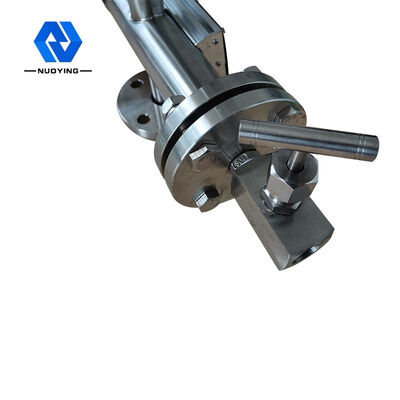

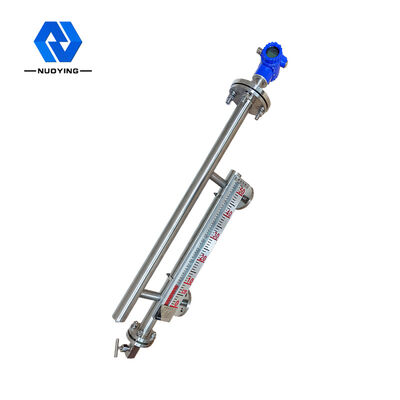

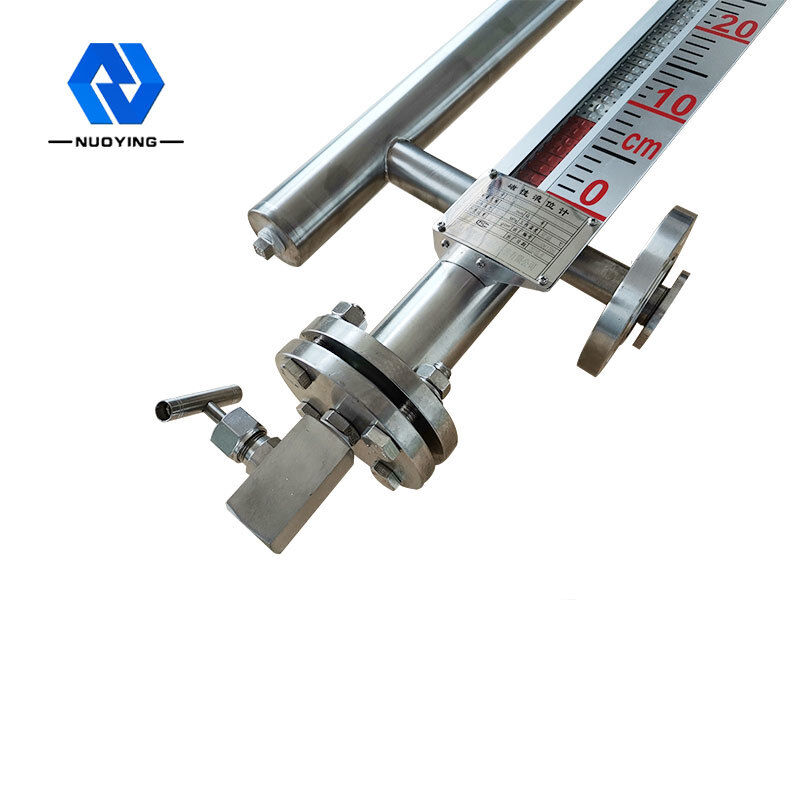

NYUHZ-C Series Level Gauge Magnetic Flapper Float Level Meter
NYUHZ-C Series Level Gauge Magnetic Flapper Float Level Meter Description:
Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges.XU KANG offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System.
NYUHZ-C Series Level Gauge Magnetic Flapper Float Level Meter Parameters:
| Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
| Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
| Connecting Flanges | According to DIN or ANSI B16.5 |
| Rated Pressure | <10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF Higher pressure rating can also be provided |
| Temperature of Liquid | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF 60ºC (Max.) for PVC, 50ºC (Max.) for PP |
| Specific Gravity | Min. 0.40g/cm³ |
| Scale | Graduated in cm, Aluminium or SS304 |
| Measuring Accuracy | +/- 5 mm |
| Explosion-proof mark | Exd II BT4 |
NYUHZ-C Series Level Gauge Magnetic Flapper Float Level Meter Features:
1. Highly visible level indication with no process fluid in contact with the glass.
2. All construction by code certified welders.
3. Float designed and weighted for maximum accuracy with 75 grams minimum upward buoyant force.
4. Transmitter and switch options which can be installed, adjusted and maintained with no process interruption.
5. Safe for corrosive, flammable, toxic, high-temperature and high-pressure applications.
6. Rugged design - low or no maintenance.
