Product Details:
|
| Material: | PP | Pressure: | 1.0Mpa |
|---|---|---|---|
| Temp.: | -20--65°C | Range: | 300~3000mm |
| Installation Method: | Side-mounted, Top-mounted, Bottom-mounted | Measuring Medium: | Liquid |
| Process Connection: | Flange | ||
| High Light: | 20mA Hydraulic Magnetic Level Transmitter,Oil Fuel Tank Level Indicator,20mA tank level gauge |
||

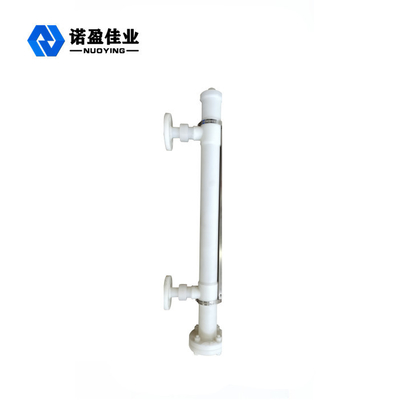

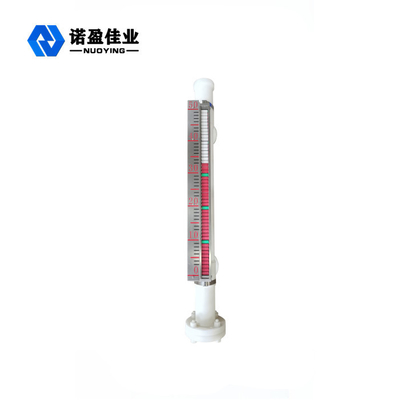

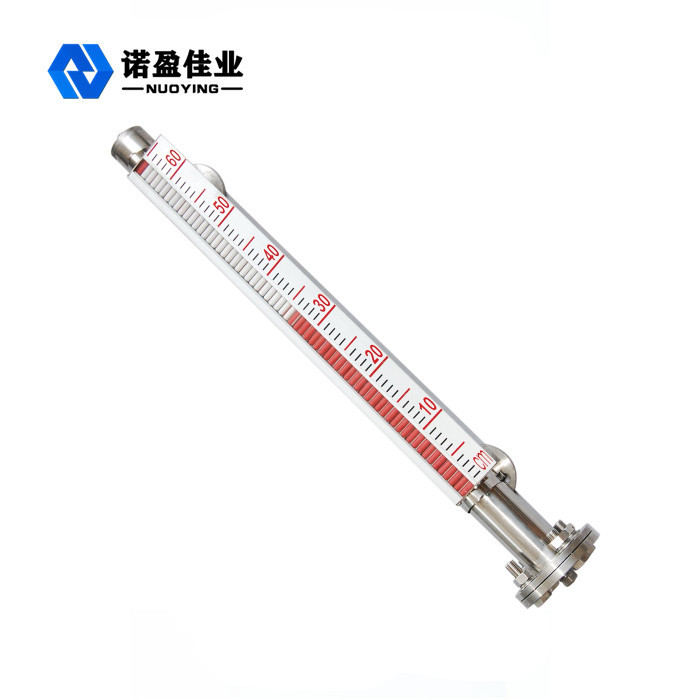

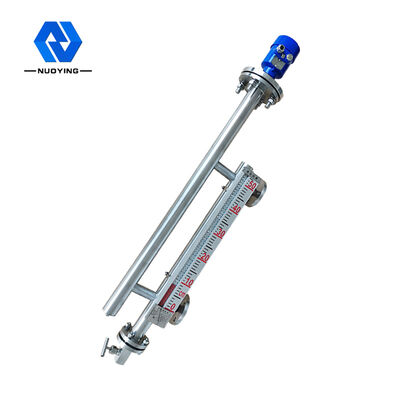

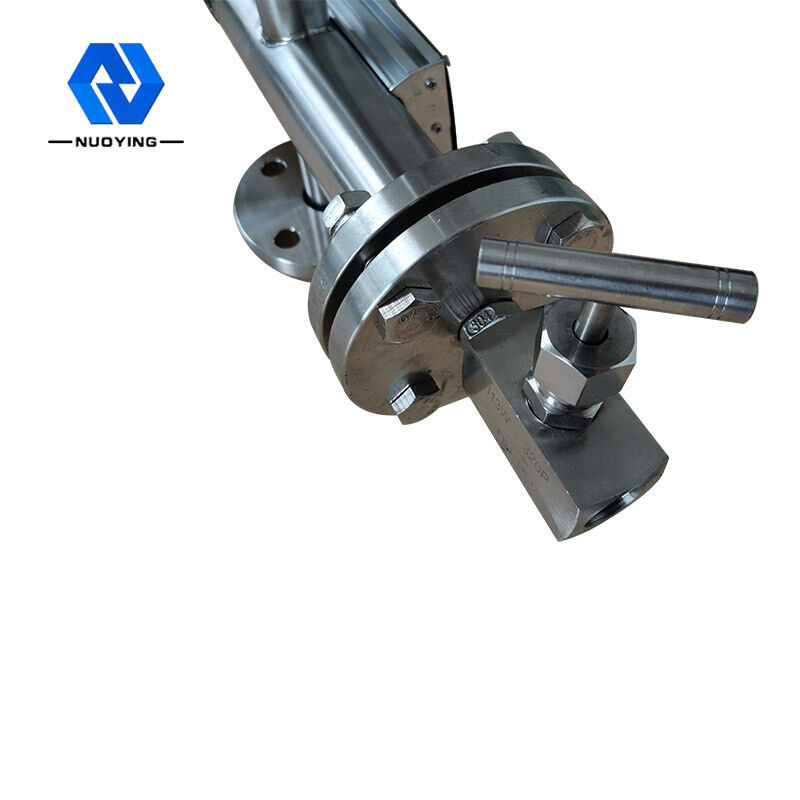

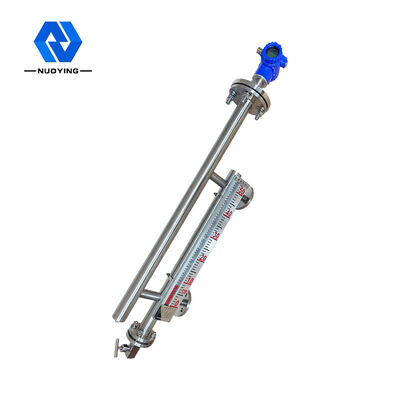

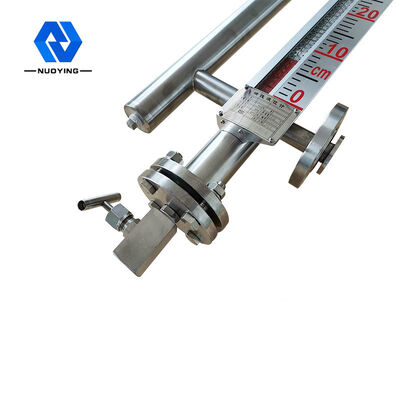

4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter
4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Description:
Mounted magnetic liquid level gauge, it can be used to measure the liquid level of kinds of vessels in the shapes of water tower, kettle, groove and ball as well as boiler furnace. It can be used under high-sealing, leak prevention, high pressure, high temperature and corrosion condition, which is safe and reliable. It makes up for the deficiency of fuzzy instruction and fragility of the glass plate level gauge. It is not affected by the revulsion of high/low temperature, which doesn’t need multi-group gauges. In the overall process of measurement, non-blind area, it instructs highlighting, reads directly and has a wide measurement range.
4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Parameters:
| Measurement range | 300-15000mm |
| Accuracy | ±10mm |
| Column diameter | 9mm |
| Operating pressure | ≤16.0Mpa (>16.0Mpa customized); anti-corrosion type ≤1.0Mpa |
| Medium density | ≥0.45g/cm3 |
| Medium density difference | ≥0.15g/cm3 |
| Medium viscosity | ≤0.4Pa·S |
| Equipment vibration | frequency≤25Hz, amplitude≤0.5mm |
| Follow speed | ≤0.08m/s |
| Connection flange | DN25, PN1.6 |
4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Features:
1.Simple structure, good stability, reliability and durability.
2.Isolated medium, indicator, transmitter and switch
3.Wide range of operating pressure: vacuum to 42Mpa
4.Wide range of operating temperature: -190°C to 425 °C
5.Independent of medium’s physical and chemical states.
6.SPST or SPDT available
7.Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or HART) and realize remote control and measurements.
