Product Details:
|
| Flange Material: | Stainless Steel | Body Material: | Stainless Steel |
|---|---|---|---|
| Medium Density: | ≥0.76g/cm3 | Medium Temperature: | 0~150℃ |
| Medium Viscosity: | ≤0.07Pa.S | Signal Output: | DC4-20mA |
| High Light: | Vertical Magnetic Level Indicator,20mA Magnetic Level Indicator,20mA Vertical magnetic water level sensor |
||

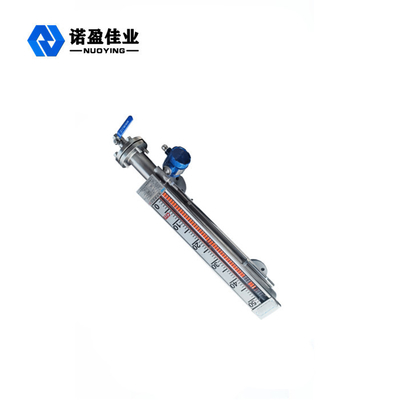

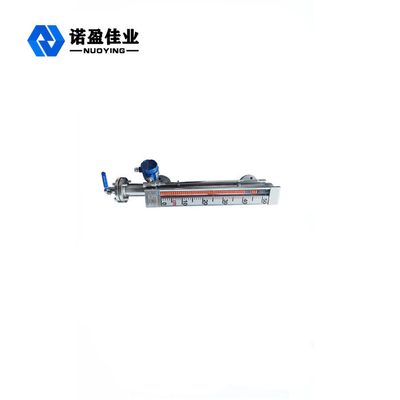

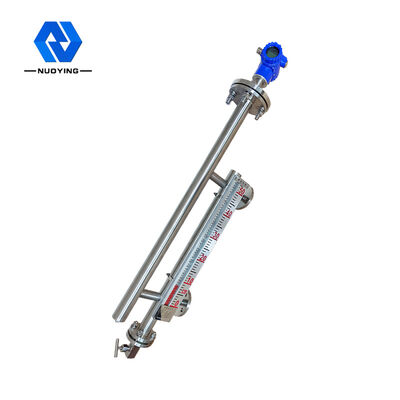

Vertical Magnetic Level Indicator Fuel Water Tank Sensor Magnetic Level Meter Gauge
Vertical Magnetic Level Indicator Fuel Water Tank Sensor Magnetic Level Meter Gauge Description:
Magnetic Level Gauge take float as measuring element. Magnetic steel drives column display, not requiring energy. UHZ is suitable for varies environment from low to high temperature, from vacuum to high pressure, which is ideal level measuring instrument for Petrochemical Industry and etc.
NYUHZ can realize remote alarm and limit control, configuring upper and lower limit switch output.
NYUHZ can realize distance instruction, testing and control of level, configuring transmitter.

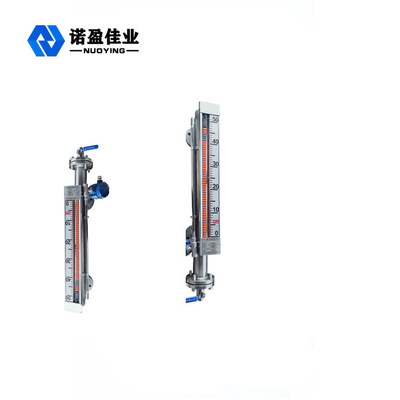

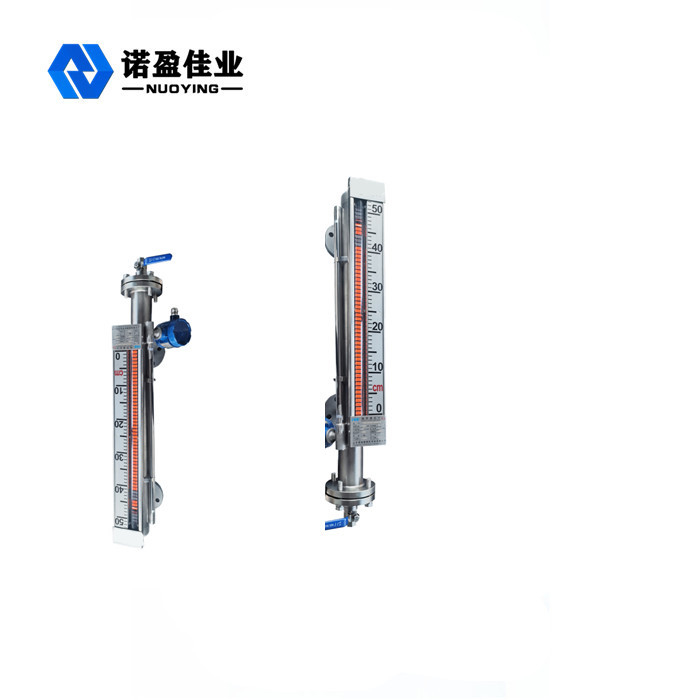

We provide Side-Mounted and Top-Mounted according to installation site in the container.
We provide stainless steel, PP plastic, stainless steel lining PTFE etc. according to medium. PP plastic and stainless steel lining PTFE are ideal for acid and alkali corrosive medium.
Vertical Magnetic Level Indicator Fuel Water Tank Sensor Magnetic Level Meter Gauge Parameters:
| Signal Output | DC4-20mA |
| Measuring Range | 2.5MPa |
| Accuracy | ±1.5％ |
| Flange Material | Stainless Steel |
| Body Material | Stainless Steel |
| Installation | Side-Mounted |
| Medium Density | ≥0.76g/cm3 |
| Medium Temperature | 0~150℃ |
| Ambient Temperature | -40～70℃ |
| Medium Viscosity | ≤0.07Pa.S |
| Indication Error | ±10mm |
Vertical Magnetic Level Indicator Fuel Water Tank Sensor Magnetic Level Meter Gauge Structure Characteristic:
1.Basic Model Float moves up and down with the elevation of level in the measuring tube, based on the principle of buoyancy. Permanent magnet steel in the float drives the red and white column roll over 180°by Magnetic Coupling effect. The column turns from white to red when the level rise, conversely, the column turns from red to white. Thus the level indication is realized.
2.Upper and Lower Limit Switch Output The alarm switch on the set position of standpipe acts according to the magnetic float moving with the elevation of level. Thus it can realize ON-OFF control or alarm.

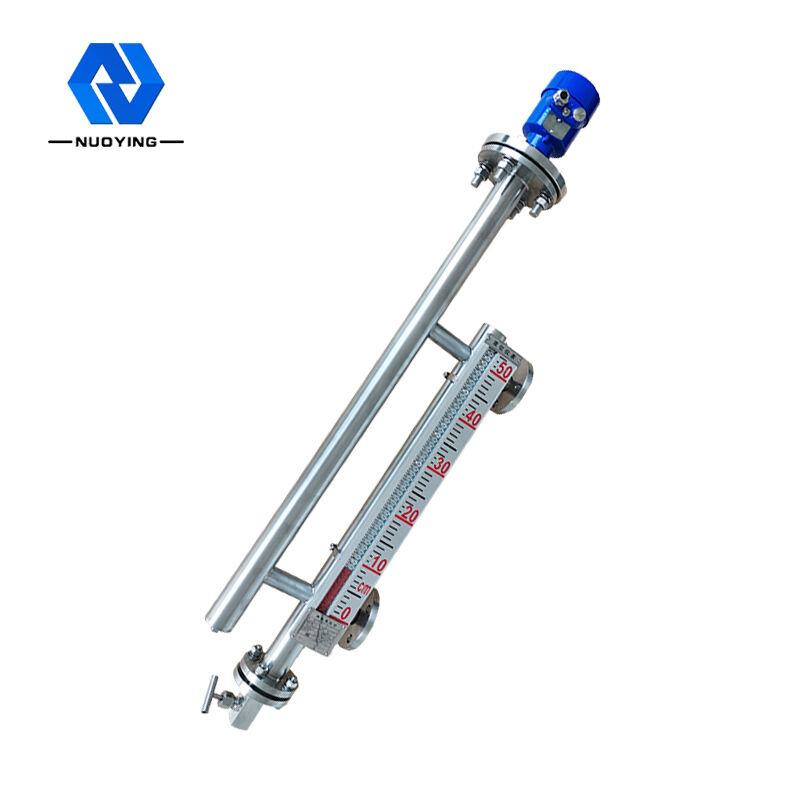

3.Electrical Remote Transmission Transmitter is mounted on the magnetic level meter. The transmitter consists of sensor and transducer. It moves up and down the magnetic sub measurement measuring element followed by action role within the catheter by the magnetic coupling resistance signal change converts the standard 4 ~ 20mA current signal output, so that the digital display instrument or computer connection, Remote Display.
