Product Details:
|
| Material: | 304SS | Output: | 4-20mA |
|---|---|---|---|
| Range: | 500--6000mm | Pressure: | Normal Pressure |
| Temp.: | Normal Temp. | Connection: | Flange |
| Warranty: | 1 Year | ||
| Highlight: | 304SS Magnetic Level Transmitter,25Mpa Water Tank Depth Gauge,25Mpa magnetic float gauge |
||

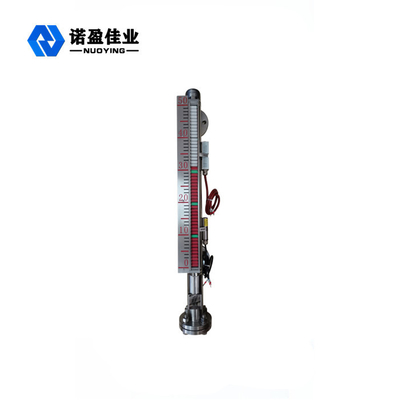

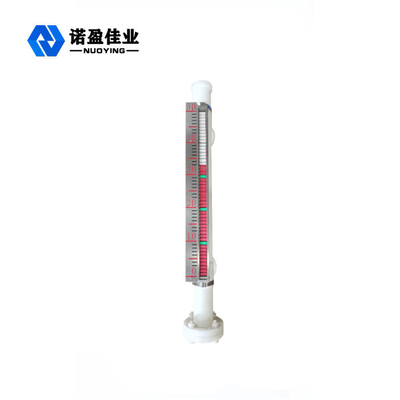

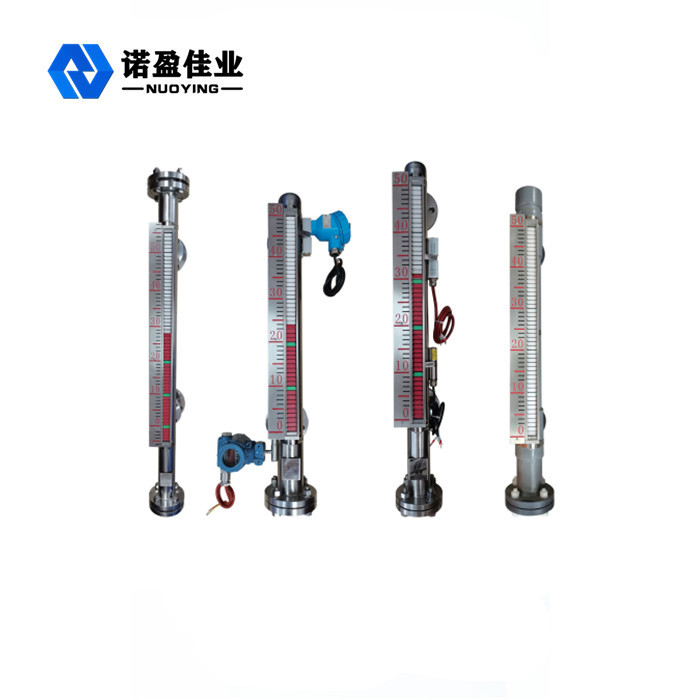

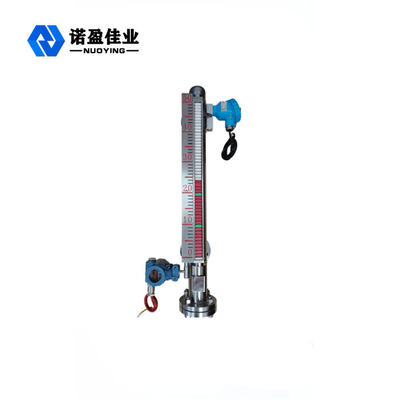

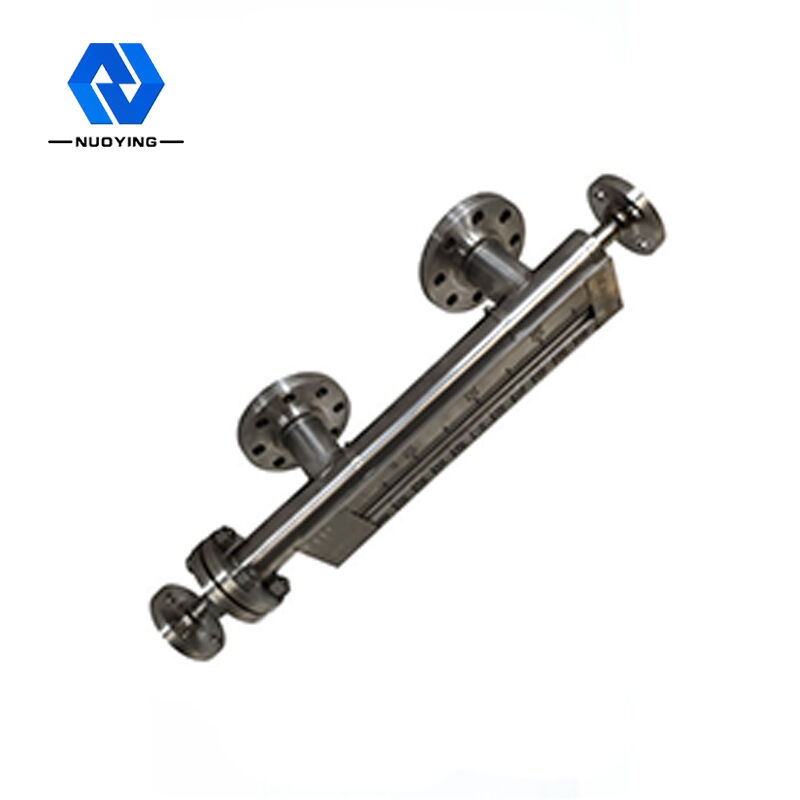

Magnetic Liquid Level Gauge Tank Depth Sensor Transmitter Gauge Meter Measure Indicator 4-20 MA
Magnetic Liquid Level Gauge Tank Depth Sensor Transmitter Gauge Meter Measure Indicator 4-20 MA Description:
NYUHZ-A standard, high performance magnetic level indicator. NYUHZ-A is a single chamber design with either 2", 2.5", or 3"chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models.
Magnetic Liquid Level Gauge Tank Depth Sensor Transmitter Gauge Meter Measure Indicator 4-20 MA Parameters:
| No | Item | Data |
| 1 | Medium Density | ≥ 0.5Kg / L |
| 2 | Medium pressure | ≤ 25.0Mpa |
| 3 | Medium temperature | -40 ~ 130 °C / 200 °C |
| 4 | Measuring range | 96kN |
| 5 | Accuracy | ± 8mm |
| 6 | Measuring tube material | SUS304/SUS316L/PP/PVDF |
| 7 | Float material | SUS304/SUS316L/Ti/PP |
| 8 | Limit switch | Customized |
Magnetic Liquid Level Gauge Tank Depth Sensor Transmitter Gauge Meter Measure Indicator 4-20 MA Features:
1. Numerous chamber styles (or configurations) for each design. Custom designs available.
2. Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar
3. Fabricated, non-magnetic chamber
4. ANSI and EN 1092 process connections available
5.Precision manufactured float with internal magnets and magnetic flux ring
6. Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level
7.Standard float stop springs at top and bottom of chamber
