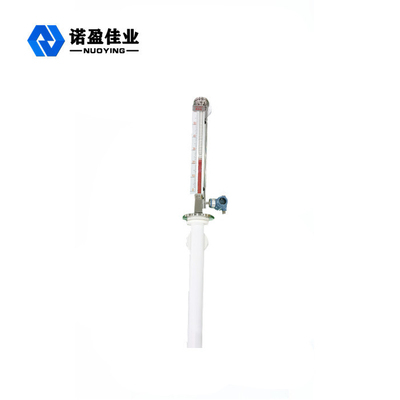

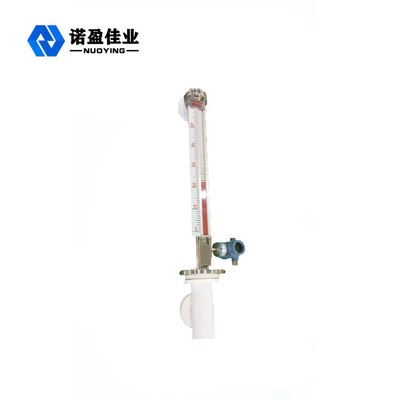

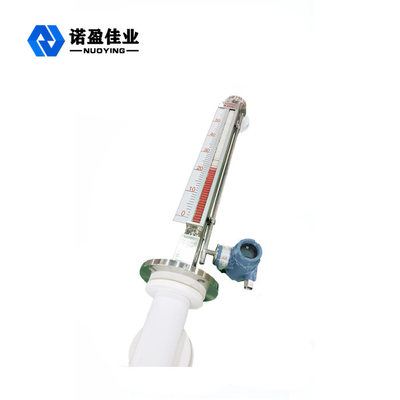

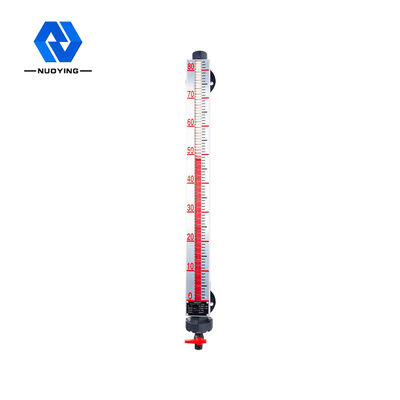

PP Magnetic Float Level Transmitter High Temperature High Pressure

PP Magnetic Float Level Transmitter High Temperature High Pressure

Brand Name: NUOYINGJIAYE
Model Number: NYUHZ-C
MOQ: 1pc
Price: $225.0~$285.0
Payment Terms: T/T
Supply Ability: 1000pcs/pre month
Detail Information
Place of Origin:
Xi'an,China
Certification:
Explosion-proof certificate
Range:
300~6000mm
Power Supply:
24VDC
Work Pressure:
≤ 10MPa
Material:
PP
Output Signal:
4-20mA
Temperature:
-20~450℃
Medium Density:
≥0.45g/cm3
Packaging Details:
Wooden box
Supply Ability:
1000pcs/pre month
Highlight:

PP Magnetic Float Level Transmitter

,

High Temperature Magnetic Float Level Transmitter

,

PP magnetic float level gauge

Product Description

Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter



Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Description:

      Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges.It offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System.



Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Parameters:



Float Cage Material SS304, SS316, PTFE, PP, PVC, PVDF
Max. Centre to Centre Distance 6000 mm, greater lengths on request
Connecting Flanges According to DIN or ANSI B16.5
Rated Pressure <10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF
Higher pressure rating can also be provided
Temperature of Liquid 450℃ (Max.) for SS, 80℃ (Max.) for PVDF
60℃ (Max.) for PVC, 50℃ (Max.) for PP
Specific Gravity Min. 0.40g/cm³
Scale Graduated in cm, Aluminium or SS304
Measuring Accuracy +/- 5 mm
Explosion-proof mark Exd II BT6
Protection Grade IP65/IP67

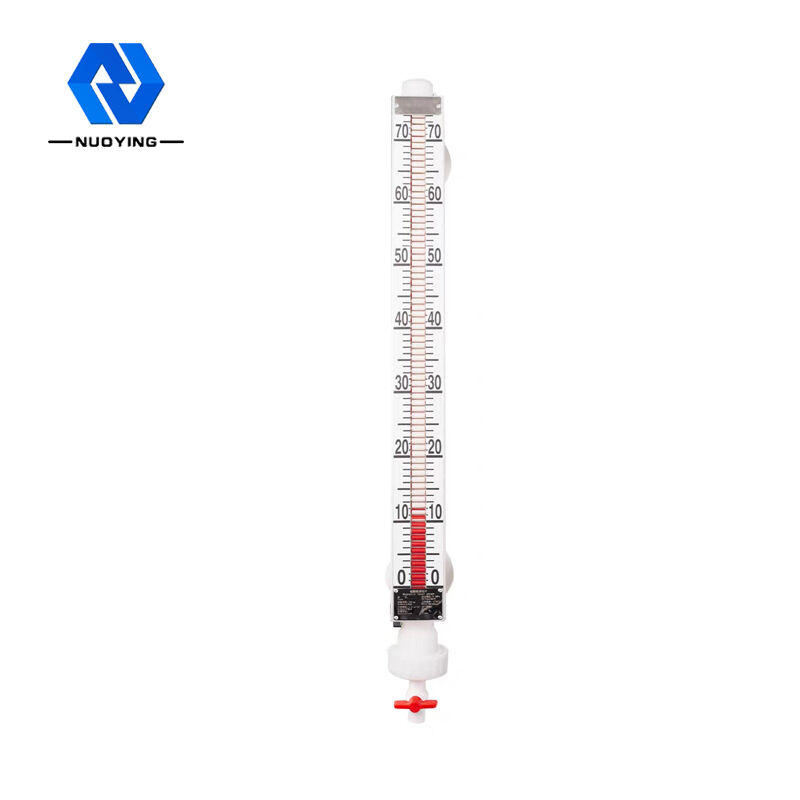

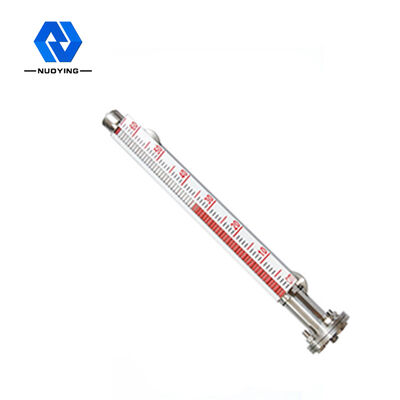

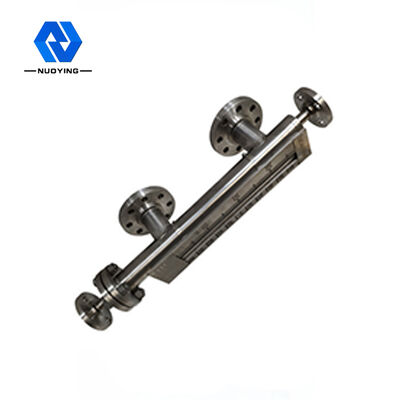

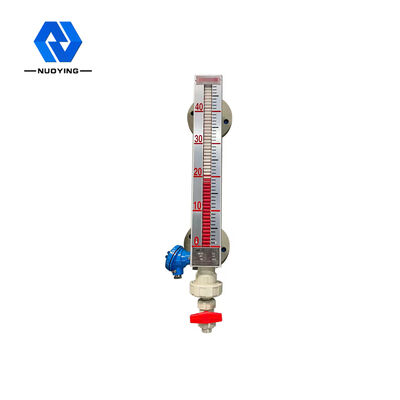

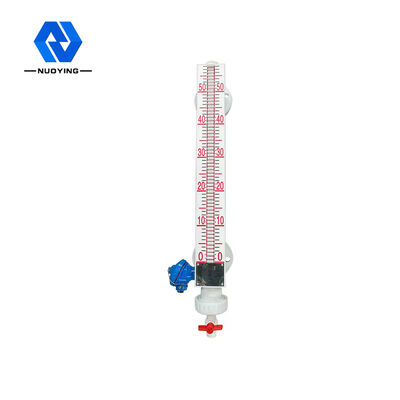

PP Magnetic Float Level Transmitter High Temperature High Pressure 0

PP Magnetic Float Level Transmitter High Temperature High Pressure 1

PP Magnetic Float Level Transmitter High Temperature High Pressure 2



Magnetic Flapper Float Level Meter High Temperature High Pressure Model Level Meter Features:

  • Highly visible level indication with no process fluid in contact with the glass.
  • All construction by code certified welders.
  • Float designed and weighted for maximum accuracy with 75 grams minimum upward buoyant force.
  • Transmitter and switch options which can be installed, adjusted and maintained with no process interruption.
  • Safe for corrosive, flammable, toxic, high-temperature and high-pressure applications.
  • Rugged design - low or no maintenance.
  • IP67 approved local indication.
