Product Details:
|
| Material: | Stainless Steel | Accuracy: | 0.5% |
|---|---|---|---|
| Application: | Level Control | Power Supply: | 12VDC |
| Grade: | Industrial | Warranty: | One Year |
| High Light: | Glass Magnetic Level Meter,Magnetic Level Meter 12VDC,12VDC magnetrol level Indicator |
||

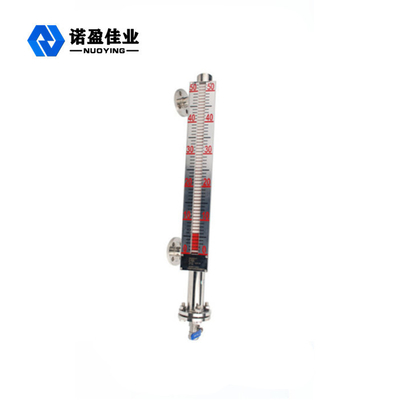

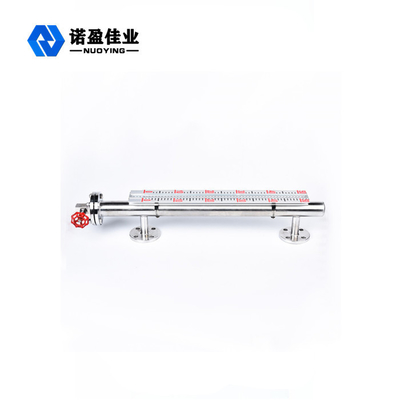

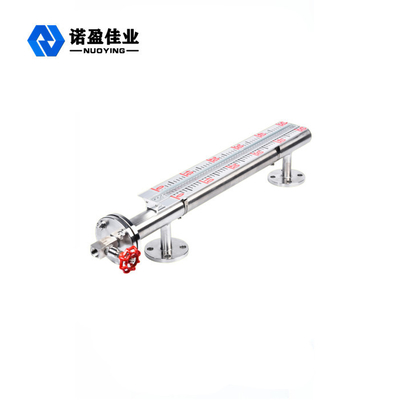

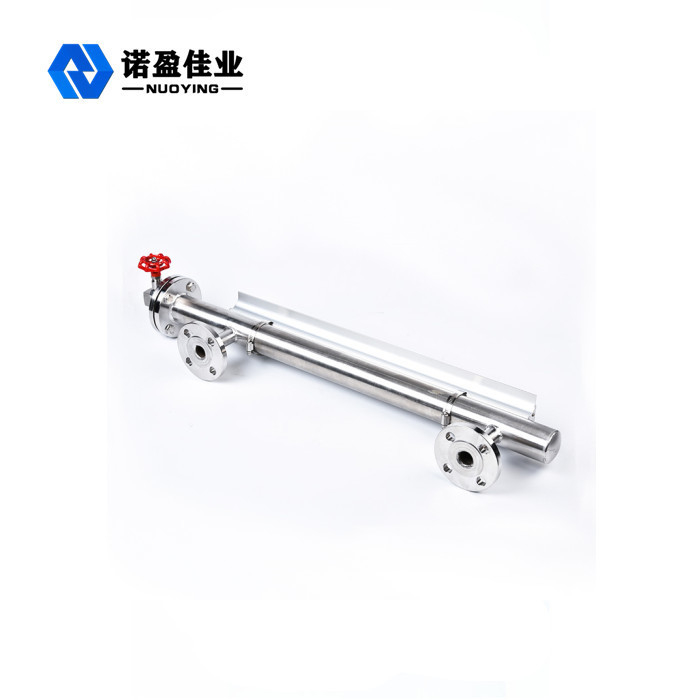

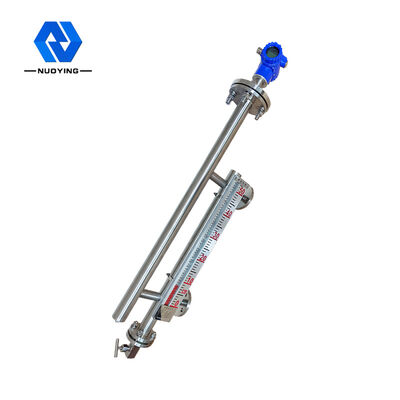

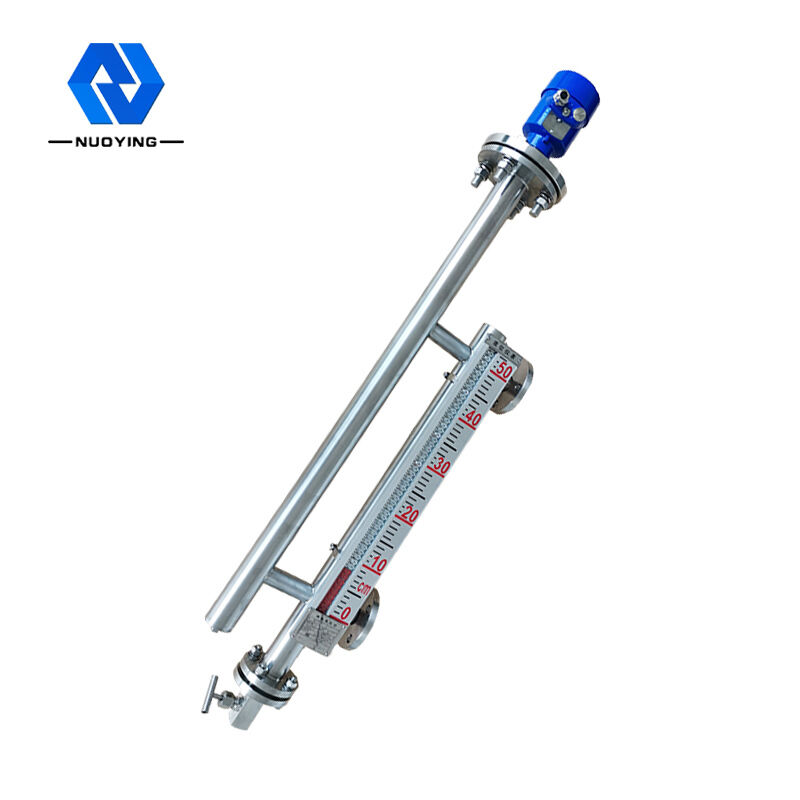

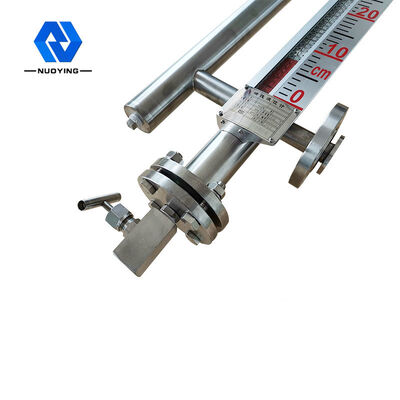

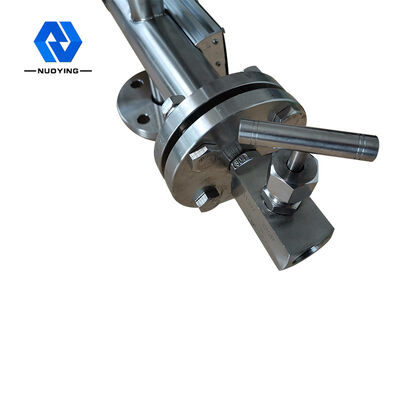

Magnetic Level Meter With Level Gauge Glass
Magnetic Level Meter With Level Gauge Glass Description:
Lined Type Magnetic Level Indicator uses unique lining technical design, makes lining junction of the buoy and the process connect flange achieve to the best-match condition, effectively avoids corrosion damage made by accidental medium leakage, which is usually caused by extrusion fracture when assembling. Also, it has introduced innovative production and test processes to improve its reliability and quality.NYUHZ is mainly used to measure strong corrosive liquid, and, is widely applied to chemical industry, oil refining, storage and transportation, water treatment and other industries.
Magnetic Level Meter With Level Gauge Glass Parameters:
| Fluid | Density | 0.8~2g/cm3 |
| Viscosity | ≤200cP | |
| Measurement parameters | Measuring range | Single section: 200-5600mm |
| Multi-section: up to 20m or more | ||
| Accuracy | ±5mm or±10mm | |
| Material specifications | Bouy | 304/316L stainless steel with F4/F46 lining, 57 |
| Float | 304 with F46 out-lined | |
| Indicator panel | Optional aluminum flap or PA66 nylon flap, and optional cover plate of glass (standard) or acrylic. | |
| Operating conditions | Process pressure | 0~1.6MPa |
| Process temperature | Max.120℃ | |
| Ambient temperature | -40℃~80℃ | |
| Signal output | Switch | 220VAC 3A, SPDT |
| Transmitter | 4~20mA | |
| Process connection | Connection type | Flange, customization |
| Materials | 304/316L stainless steel with F46 lining | |
| End fittings | Upper vent | flange |
| Lower drain | Flange, also can be configured lined | |
| Additional devices | cryogenic insulation / heat insulation | Rubber and plastic cotton, asbestos, polyester fiber |
| Anti-frost | Used in a occasion that temperature less than -5℃ | |
| Safety certification | Protection rating | IP65,IP66/67 |
| Explosion-proof | Ex d IIC T6, Ex ia IIC T6 (magnetic switch and transmitter) |
Magnetic Level Meter With Level Gauge Glass Features:
(1) The lining junction between floating tube and process connection flange uses unique lining technology effectively avoids corrosion damage made by accidental medium leakage, which is caused by extrusion fracture when assembling.
(2) Indicator panel and magnetic flaps uses widened design make visual distance and viewing angle increase greatly, the ruler and its figures are bolder and clearer.
(3) Level of Ingress Protection of IP65 and IP66/67 are available, exceeding national standard requirement of IP54;
(4) A variety of patented lining technique is used and F4/F46 lining buoy is provided, suitable for wider range of corrosive measurement.
(5) Accessory magnetic switches and remote transmitters have got double certifications of Explosion Proof and Intrinsically Safety.
