Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted

Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted
Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted

Large Image :  Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYUHZ-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $255.0~$345.0
Packaging Details: Wooden box
Payment Terms: T/T
Supply Ability: 1500pcs/pre month

Tank HART Magnetic Level Transmitter 1.6Mpa 10000mm Side Mounted

Description
Level Range: 0~0.5...10m Measuring Medium: Liquid Compatibles With 304 Or 316L Stainless Steel
Accuracy: ±10mm (±5mm Optional) Output: 4-20mA+HART
Supply Power: 24VDC Pressure: 1.6Mpa
Temp.: -25---120℃
High Light:

HART Magnetic Level Transmitter

,

HART Magnetic Level Transmitter

,

1.6Mpa side mounted magnetic level indicator

Stainless Steel 4~20mA Tank Magnetic Liquid Level Transmitter



Stainless Steel 4~20mA Tank Magnetic Liquid Level Transmitter Description:

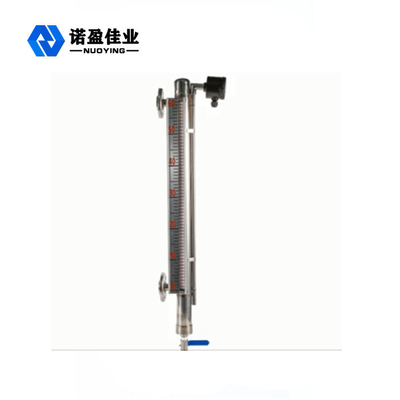

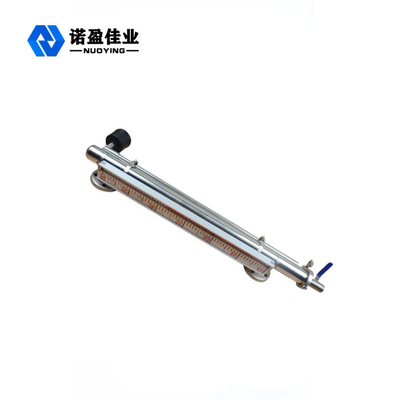

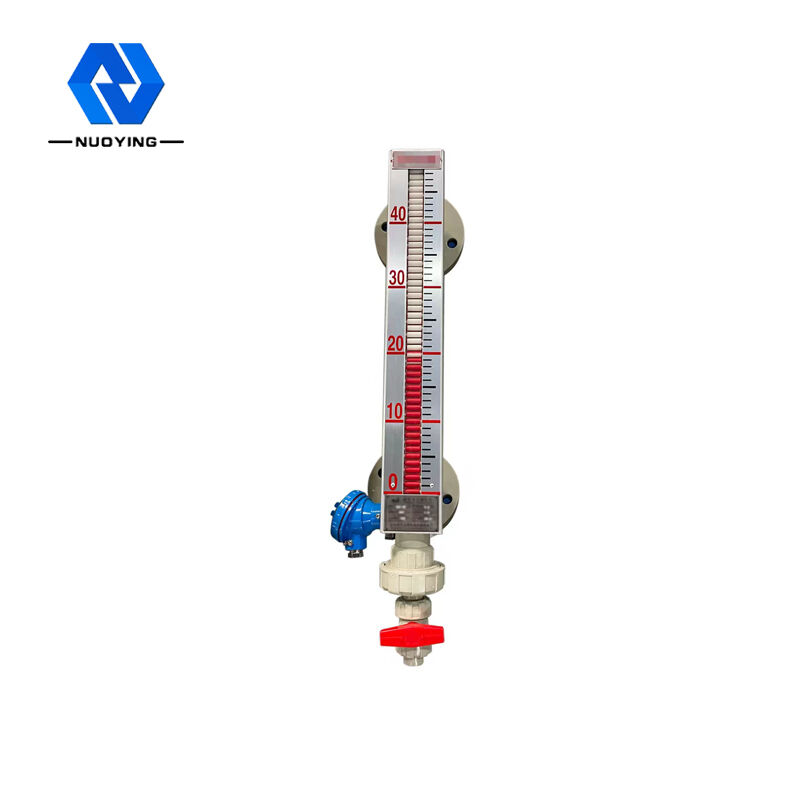

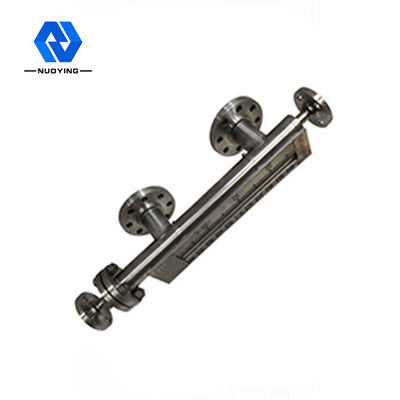

    NYUHZ-D series of magnetic float turn column level gauge, made of high quality stainless steel material, suitable for the liquid level measurement of all kinds of tower, tank, spherical tank and boiler equipment. The whole process of measuring with high-sealing, anti-leakage, no blind spots, showing eye-catching, intuitive readings, and the measurement range is big. Optional limit switch can control and alarm the level of the upper and lower. Optional level transmitter can convert the level signal to be 4-20mA DC standard signal,to Achieve long-distance detection, instructions, records and control.



Stainless Steel 4~20mA Tank Magnetic Liquid Level Transmitter Parameters:





Measuring Medium compatible with 304, 316L, anticorrosive materials and other liquids
Measuring Range 200mm~10000mm
Indicating Accuracy ±10mm
Nominal Pressure various pressure levels
Liquid Temperature -150 ~ 400
Liquid Density ≥0.45g/cm3
Liquid Viscosity < 150mPa•s
Installation side mounted, top mounted, etc
Connection flange, thread, chuck, etc
Output signal 4 ~ 20mA or multiple relay switch quantity





Stainless Steel 4~20mA Tank Magnetic Liquid Level Transmitter Features:



1. the design is simple, compact, solid and reliable, long life, and no maintenance work can be installed in the outside world for a long time.
2. the part of the measuring tube and the liquid level display, liquid level transmitter, alarm switch, air pressure is in complete isolation;
3. the working pressure range is wide, the pressure from vacuum to 42MPa;
4. the range of working temperature is wide, which is suitable for -160-450 C.
5. widely used for strong and weak corrosiveness, flammable and explosive, toxic, strong radioactive, agitated and muddy liquid level measurement.
6. models are all optional magnetic alarm switch to realize automatic control or alarm of high and low level.
7. all models can be selected with 4-20mADC level transmitter to realize long distance centralized measurement and control
