6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

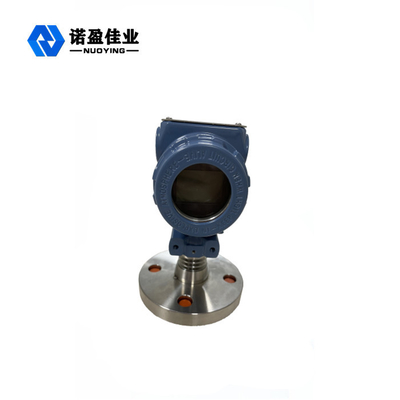

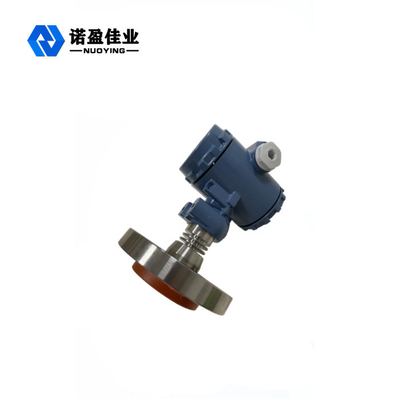

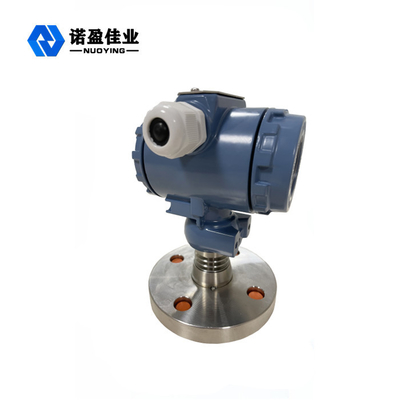

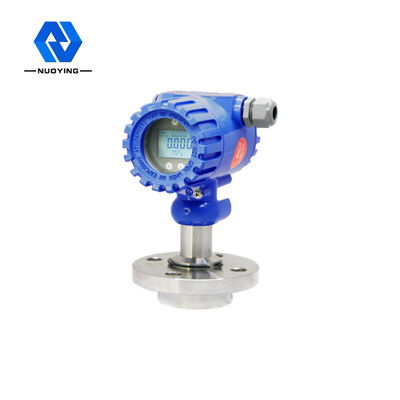

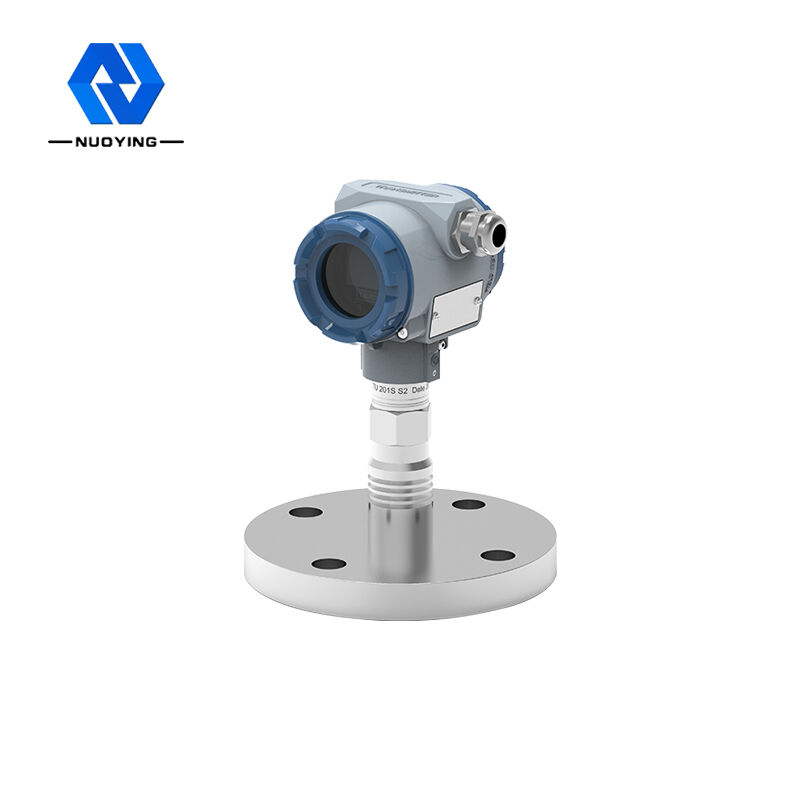

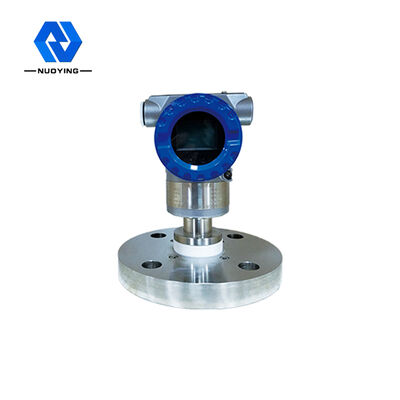

6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply

6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply
6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply 6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply 6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply

Large Image :  6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NP-3051-GP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $125.0~$225.0
Packaging Details: 40*30*30cm Carton
Payment Terms: T/T
Supply Ability: 500pcs/pre month

6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply

Description
Pressure Range: -100kPa...6MPa Pressure Reference: Gauge
Output: 4~20mA Accuracy: ±0.5%FS(max.)
Supply: 24VDC Ambient Temp.: -20℃~80℃;
Medium Temp.: -40℃~100℃ Diaphragm Material: 316L
Protection: IP66
High Light:

6MPa Flush Diaphragm Pressure Transmitter

,

24v Pressure Sensor Transmitter

,

Flush Diaphragm Pressure Sensor Transmitter

6MPa Flush Diaphragm Pressure Sensor Transmitter With digital 24v power supply



6MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply 06MPa Flush Diaphragm Pressure Sensor Transmitter With Digital 24v Power Supply 1



6MPa Flush Diaphragm Pressure Sensor Transmitter With digital 24v power supply Description:



     6Mpa pressure seneor transmitter with flange is a type of flush product in order to meet the flange mounting requirement of the customer. Flush diaphragm pressure transmitter adopts the imported diffuse silicon pressure sensitive element, and after the long-term aging and stability selecting, the 6Mpa flush diaphragm pressure seneor transmitter performance is stable and reliable.

     Flush diaphragm pressure transmitter with flange takes the international standard flange plate as the connection standard, and can realize the on-site flange mounting mode for the user. Because the stress diaphragm is exposed and senses the pressure directly, convenient for cleaning, and able to meet the moistureproof, waterproof, ex-proof and other severe working condition requirements, the flush diaphragm pressure transmitter of this series are widely applied for the viscous media with particles in the fields such as industrial process control, petroleum, chemical industry, metallurgy etc.





6MPa Flush Diaphragm Pressure Sensor Transmitter With digital 24v power supply Parameters:



Performance parameters
Pressure range -100kPa...6MPa
Pressure reference Gauge pressure, Sealed gauge pressure
Supply & output 4~20mA, RS485 (24V power supply)
Accuracy ±0.5%FS(max.)
Zero temp. coefficient ±1.0%FS/50
Full span temperature effect ±1.0%FS/50
Ambient temperature -20~85; with LCD gauge outfit -20~75
Medium temp. -40~100
Storage temp. -40~85
Insulation resistance  200MΩ/250VDC
Protection grade IP66
Ex-proof grade Exd II BT4 Gb
Overpressure limitation 150%FS
Long-term stability ±0.1%FS/year
Structural performance
Diaphragm material 316L
Filling liquid Silicon oil
Housing material Die-casting aluminum epoxy resin coating
Electrical connection M20×1.5
Process connection DN50, DN80



6MPa Flush Diaphragm Pressure Sensor Transmitter With digital 24v power supply Features:



• 3051 housing is optional
• Flange mounting
• 4~20mA analog output, Modbus protocol data communication
• Diaphragm with large size, all-welded sealing
• Used for the pressure measurement for gas, liquid,
• Optional anticorrosion diaphragm
• Especially suitable for high temperature viscous liquid



6MPa Flush Diaphragm Pressure Sensor Transmitter With digital 24v power supply Application:



• Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.
