Product Details:
|
| Typical Application: | Liquid Level Measurement | Measurement Range: | 0〜6m |
|---|---|---|---|
| Measuring Accuracy: | ±3mm,±5mm | Medium Density: | ≥0.425g/cm3 |
| Density Difference: | ≥0.1 G/cm3 | Medium Viscosity: | ≤0.4Pa.S |
| Control Output: | 220VAC, 1A | Transmission Output: | 4~20mA (power Supply 24VDC) |
| High Light: | Plate Magnetic Float Level Transmitter,6m Magnetic Float Level Sensor,Flange Magnetic Float Type Level Transmitter |
||

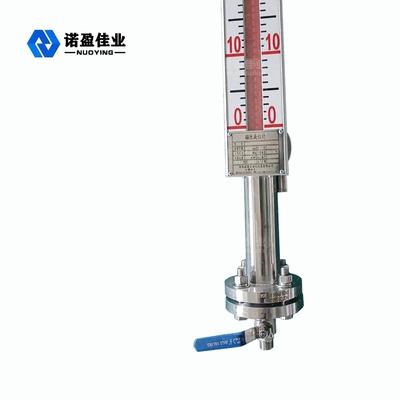

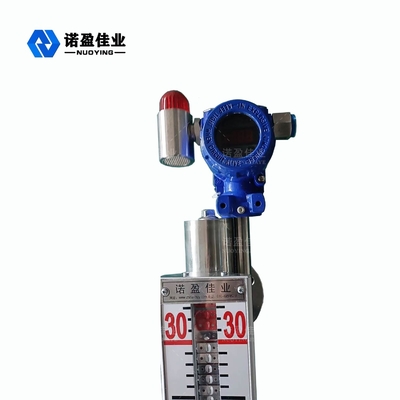

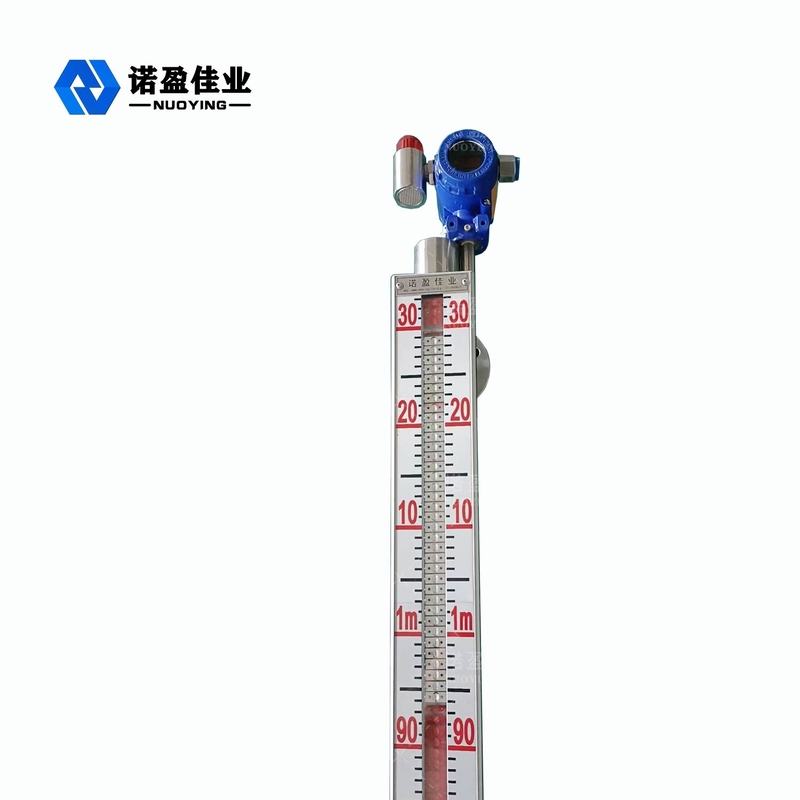

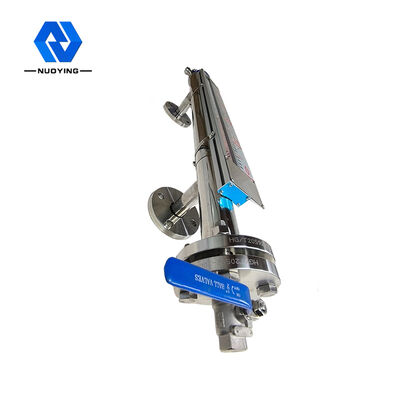

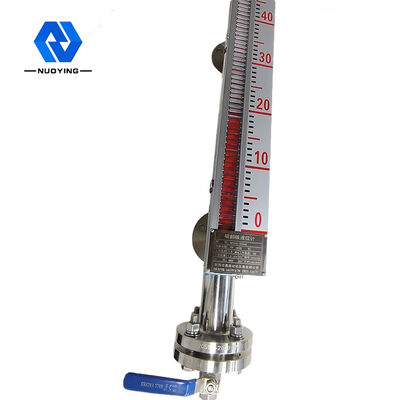

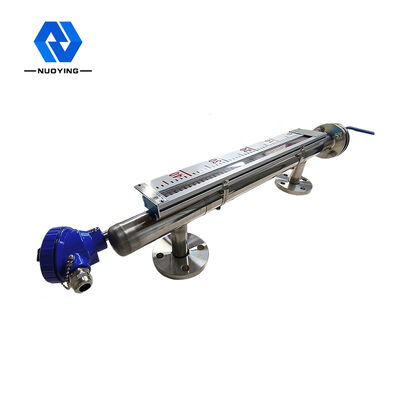

Eye-Catching NYUHZ Plate Magnetic Level Transmitter 6m Flange Installation
NYUHZ Plate Magnetic Level Transmitter Operating Principle
The magnetic meter has a chamber that contains a floating ball, and the cavity is connected by flange or other suitable connection to the container . According to the principle of the connectors, with the change of the liquid level in the container, the liquid level in the cavity is as the same as the liquid level in the container, so the floating ball in the chamber is driven up and down, with the rise and fall of the liquid level in the container. At this point, we can't see the liquid level, so we have a magnetic column flip display on the outside of the cavity.

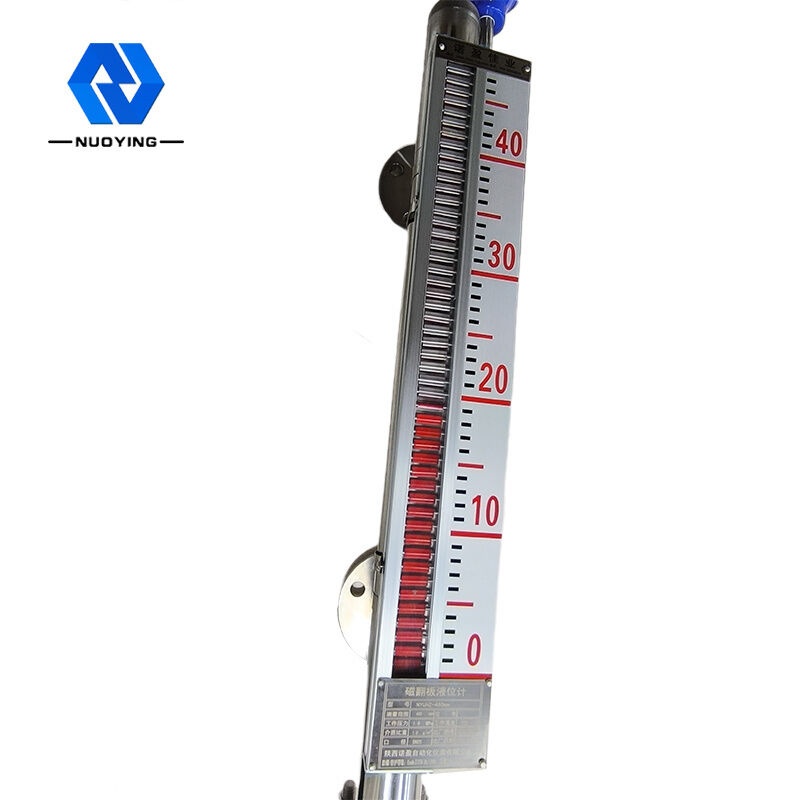

Between the floating ball sinking liquid and the floating part installed permanent magnetic steel at the junction , when the liquid level in the measured container rises and falls, so does the magnetic float in the liquid level gauge body tube. The permanent magnetic steel in the float is transmitted to the magnetic column indicator by magnetic coupling, driving the red and white rollers to flip 180 °. When the liquid level rises, the flip column changes from white to red, and when the liquid level drops, it's the opposite.The red and white junction of the indicator is the actual height of the liquid level inside the container, thus realizing clear indication of the liquid level.
NYUHZ Plate Magnetic Level Transmitter Technical Parameter
| Typical application | liquid level measurement |
| Measurement range | 0~6m |
| Measuring accuracy | ±3mm,±5mm (optional) |
| Medium density | ≥0.425g/cm3 |
| Density difference | ≥0.1 g/cm3 |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC, 1A |
| Transmission output | 4~20mA (power supply 24VDC) |
| Process temperature | -50 ~ 350 °C |
| Process pressure | -0.1~ +16MPa |
| Differentiation rate | ±lmm |
| Process connection | Flange (optional) |
| Protection grade | IP67 |
| Explosion-proof grade: | Exia IICT6 Ga (optional) |
※ Note: Products can be customized according to the specific requirements of users!
NYUHZ Plate Magnetic Level Transmitter Design Features
◎Simple structure, solid and reliable, stable operation.
◎The scene display scale is clear, eye-catching easy to read.
◎Liquid levels that can be measured and indicated to be corrosive, flammable, toxic, high temperature, agitated and contaminated.
◎Multiple installation forms, multiple connection forms can be optional.
◎Design pressure range from full vacuum to 10 MPa.
◎Design temperature range-160 〜+450 °C.
◎Professional design for special pressure and temperature.
NYUHZ Plate Magnetic Level Transmitter Installation Requirement
NYUHZ Plate Magnetic Level Transmitter Application Field
The magnetic flap level gauge can be used for medium level detection of various towers, tanks, groove, spherical containers and boilers. Magnetic flap level gauge can achieve high sealing, anti-leakage and suitable for high temperature, high pressure, corrosion-resistant occasions.
