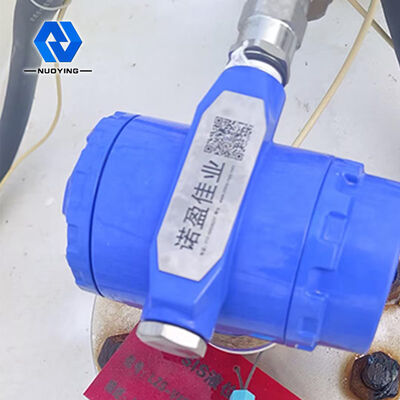

24VDC NYDR - 3051 RF Capacitance Level Meter For Liquid

24VDC NYDR - 3051 RF Capacitance Level Meter For Liquid

Brand Name: NUOYINGJIAYE
Model Number: NYDR-3051
MOQ: 1 pcs
Price: $450 to $1700 /pcs
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Typical Application:
Liquid, Corrosive Liquid
Antenna Material:
PTFE, 304, 316
Measurement Range:
6m, 20m
Power Supply:
24VDC
Signal Output:
4...20mA/HART/RS485/Modbus...
Process Temperature:
-40 ~ +130℃, -184 ~ +260℃
Process Pressure:
-0.1~1.6MPa
Process Connection:
Thread, Flange(optional)
Packaging Details:
Carton, 60cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

RF Capacitance Level Meter

,

Liquid Capacitance Level Meter

,

24VDC RF Level Meter

Product Description

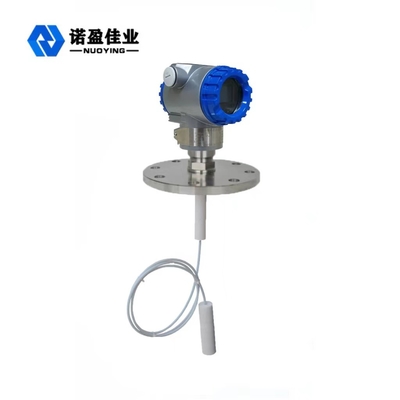

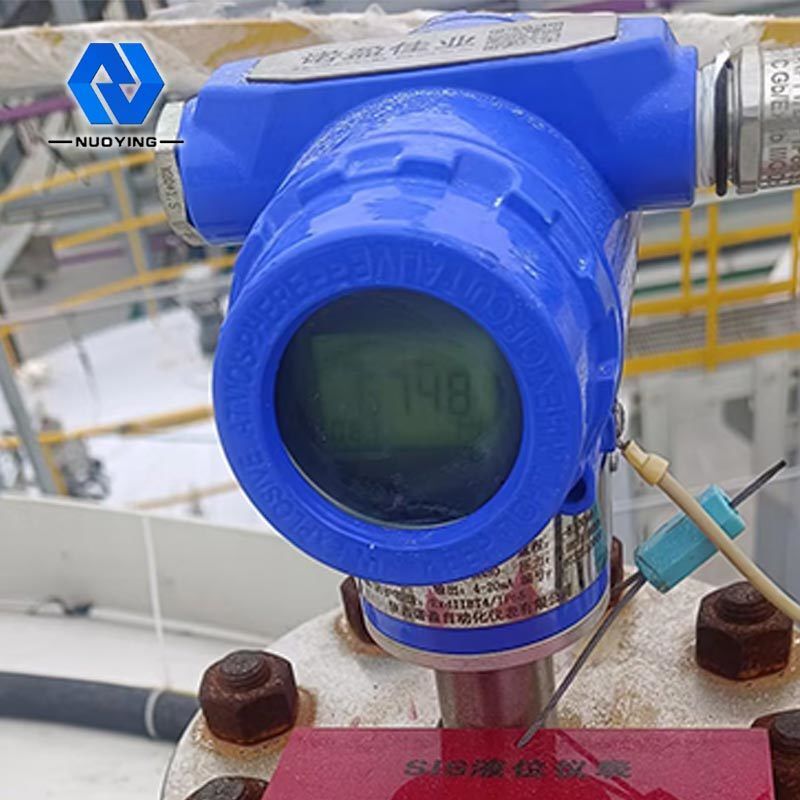

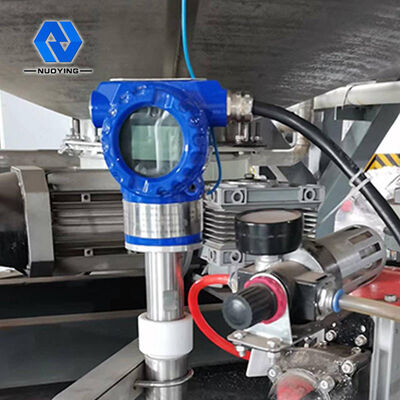

Hot Sale 24VDC Liquid NYDR-3051 RF Capacitor Level Meter





NYDR-3051 RF Capacitor Level Meter Working Principle



The RF capacitance level meter works on the basis of radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the effect caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity is different from that of air, the total impedance reacted to by small capacitance shifts changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two pole plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when air (dielectric constant of 1.0) is replaced by any other material (dielectric constant >10), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared with the reference reference frame established by the sensitivity setting (circuit).



NYDR-3051 RF Capacitor Level Meter Design Feature



1. Modular converter and sensor integration, no moving parts, high reliability, strong anti-interference capability.

2. Wider applicability, a variety of probe forms, a variety of process connection forms, a variety of production materials, can be customized design.

3. Extremely easy to install, debug and maintain.



NYDR-3051 RF Capacitor Level Meter Technical Parameters



Typical application Liquid, corrosive liquid
Antenna form Cable type, pole type
Antenna material PTFE, 304, 316
Measurement Range 6m, 20m
Power supply 24VDC
Signal output 4...20mA/HART/RS485/Modbus...
Process temperature -40 ~ +130℃, -184 ~ +260℃
Circuit temperature resistance -40 ~ +80℃
Process pressure -0.1~1.6MPa
Process connection Thread, flange(optional)
Time delay 0-30s continuously adjustable
Power failure protection High and low mode, field adjustment
Electrical interface M20×1.5, 1/2 ’’NPT
Protection grade IP65,IP67,IP68(optional)
Explosion-proof Exia II CT6 Ga, Exd II CT6 Gb
