Product Details:
|
| Typical Application: | Liquid Level Measurement | Installation Form: | Side Mounted, Top Mounted |
|---|---|---|---|
| Density Difference: | ≥0.1g/cm³ | Medium Viscosity: | ≤0.4Pa.S |
| Control Output: | 220VAC,1A | Main Material: | 304, 316 |
| Process Pressure: | - 0.1 ~ +16MPa | Process Connection: | Flange (optional) |
| High Light: | Magnetic Flap Type Flow Meter,Tank Magnetic Level Meter,High Temperature Magnetic Level Transmitter 220VAC |
||

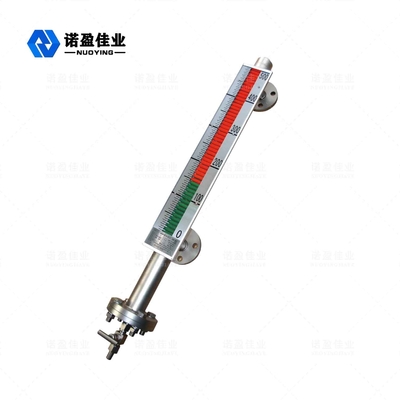

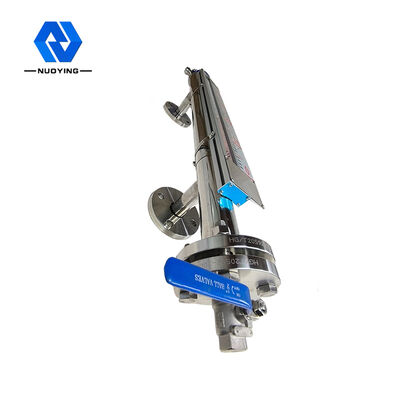

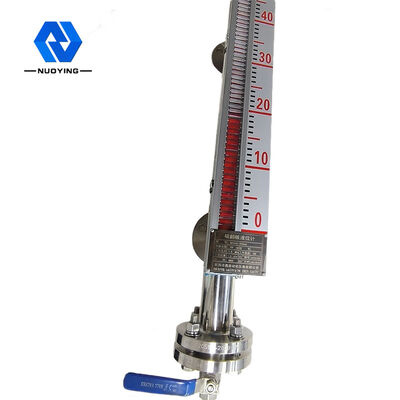

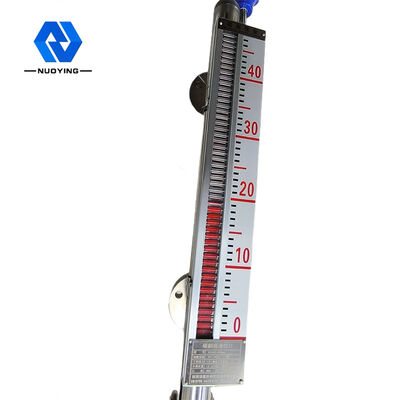

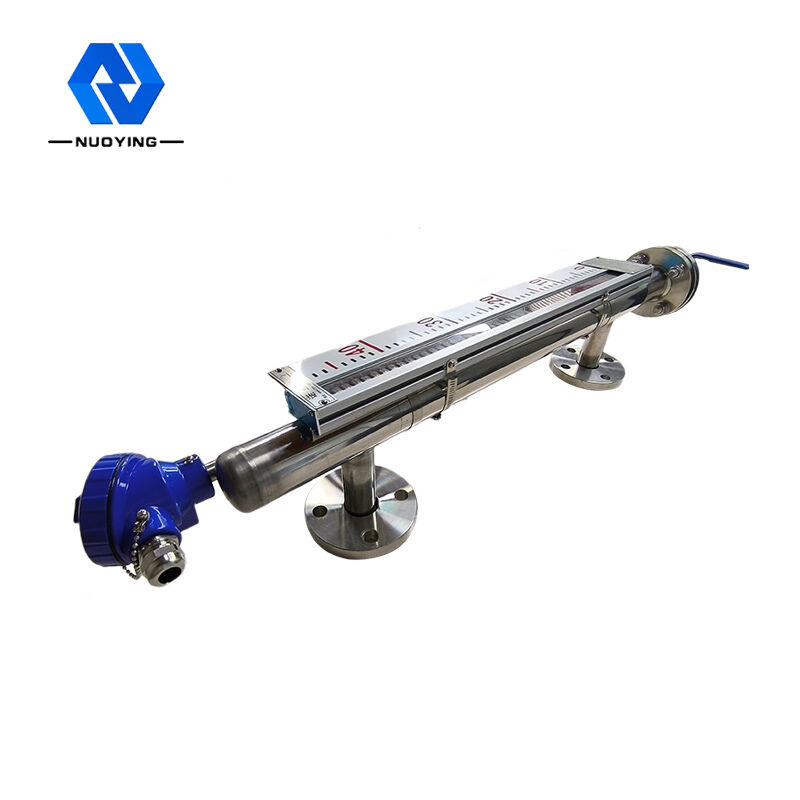

Tank High Temperature High Pressure Magnetic Flap Level Meter
Magnetic Flap Level Meter Working Principle
The magnetic flap level meter can be used for medium level detection of various towers, tanks, tanks, spherical containers and boilers. Magnetic flap level meter can achieve high seal, anti-leakage and can be used in high temperature, high pressure and corrosion resistant occasions.
Magnetic Flap Level Meter Design Feature
◎Simple structure, solid and reliable, stable operation.
◎The calibration is clear and easy to read.
◎Measure and indicate corrosive, inflammable, toxic, high-temperature, agitating contaminated liquid levels.
Magnetic Flap Level Meter Technical Parameter
| Typical application | Liquid level measurement |
| Product model | NYUHZ |
| Installation form | Side mounted, top mounted |
| Main material | 304, 316 |
| Measuring range | 0~6m |
| Measuring accuracy | ±3mm,±5mm,±10mm,±20mm(optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmit output | 4…20mA(power supply 24VDC) |
