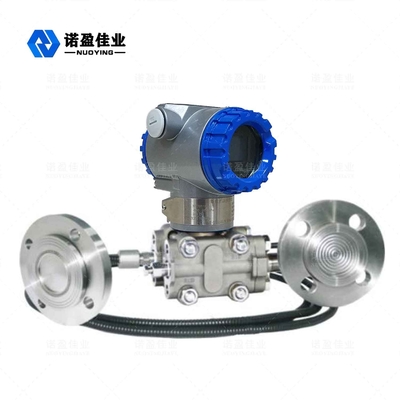

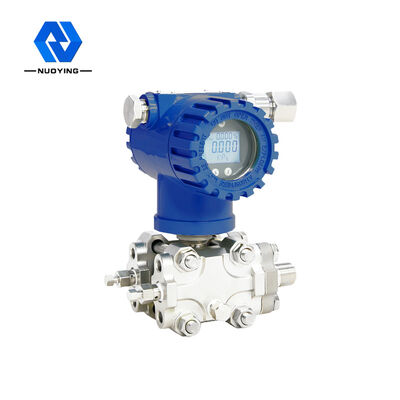

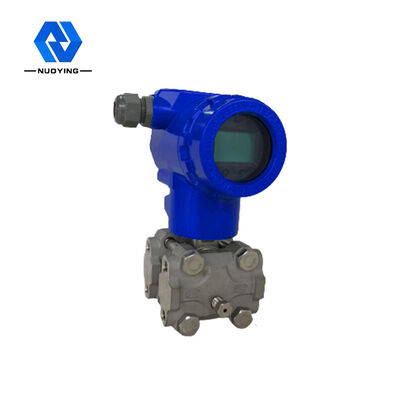

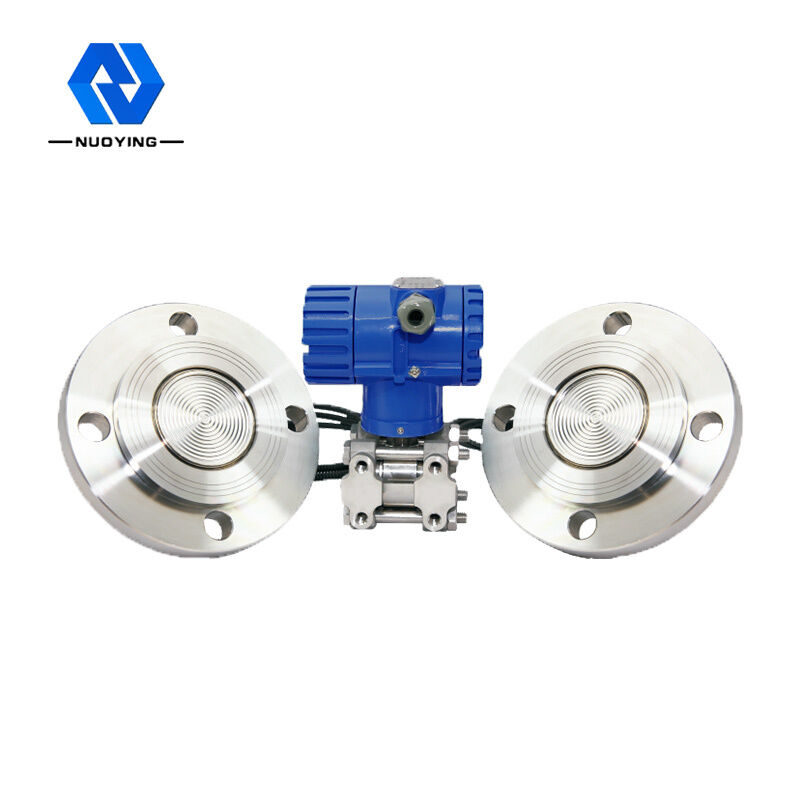

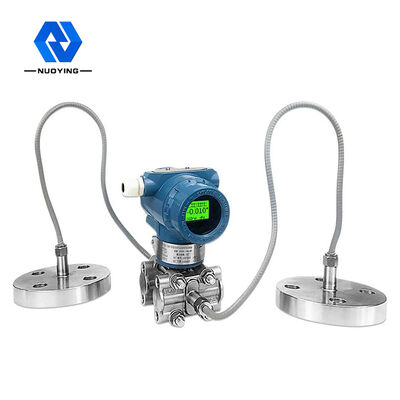

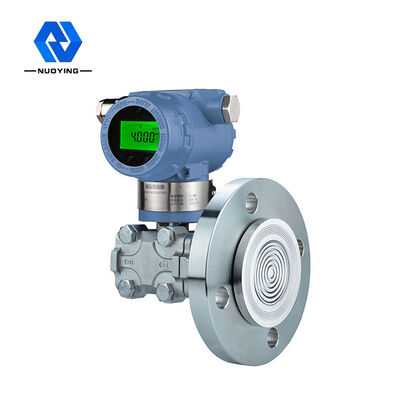

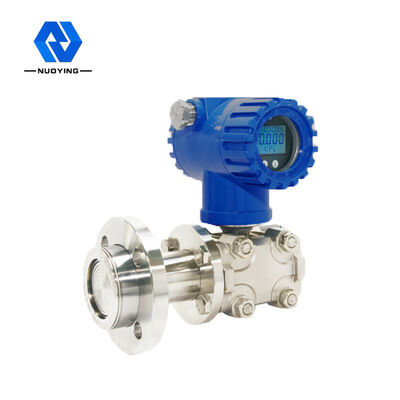

3051 Intelligent Pressure Sensor Transmitter Liquid Gas Steam High Precision

Intelligent Liquid Gas Steam 3051 Transmitter High Precision

3051 Transmitter Discription

NY3051 series intelligent differential pressure/pressure transmitter is an intelligent field instrument conforming to HART protocol. The original imported diaphragm is used in the design, and the microprocessor and HART communication circuit are used, which can carry out two-way communication with any host computer software that supports the HART communication protocol or 475 and other hand-held devices that conform to the HART communication protocol, and has a 5-digit smart number. The liquid crystal display can display the differential pressure/pressure value, output current value and output percentage value on site. It is very convenient to debug, realizes the digital and intelligent functions of the transmitter, and is compatible with the traditional 4~20mA analog output signal so that it can be used in different situations. In the case of changing the control system, the exchange with the analog watch can be realized.

3051 Transmitter Design Feature

◎Linear or square root output can be selected according to different applications;

◎The damping time can be set to change between 0.1~16s;

◎It can realize the conversion of pressure value units between KPa, Pa, InH2O, bar, etc.;

◎The fail-safe mode can be set by toggling the fail/safe switch;

◎With single point, multipoint and burst mode;

◎With power-off protection function, its working data can be automatically saved when power is off;

◎Solid components, pluggable printed circuit boards are small, light weight, strong and shock resistant;

◎One-way overload protection performance is good.

3051 Transmitter Technical Parameter
