Product Details:
|
| Typical Application: | Liquid, Gas, Steam | Product Model: | NP-93420-IX |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa | Absolute Pressure: | 0~20KPa~35MPa |
| Process Connection: | Thread, Flange (optional) | Overload Allowed: | <2 Times The Rated Range |
| Seal Gauge Pressure: | 0~7KPa~100MPa | ||
| High Light: | Digital Display Pressure Sensor Transmitter,93420 Liquid Tank Pressure Transmitter,Liquid Silicon Pressure Sensors |
||

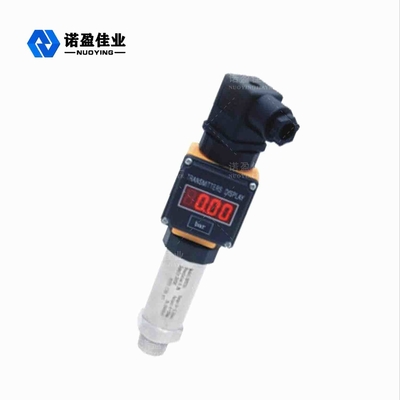

Digital Display Type Thread 93420 Pressure Sensor Transmitter
Pressure Sensor Transmitter Design Feature
◎LED, LCD, pointer, three kinds of indicator heads, on-site reading is very convenient. They can be used to measure viscous, crystalline and corrosive media.
◎Diffusion silicon pressure transmitter is used in dangerous and explosive fields. The product has the characteristics of low current, low voltage and low power consumption. It is an intrinsically safe explosion-proof product and is equipped with an explosion-proof certificate.
◎Using stainless steel material and special protective structure, and a series of protection measures such as lightning protection, anti-interference, anti-overvoltage, and over current of the amplifier circuit, it improves the ability of reliable sealing, anti-corrosion and anti-harsh working environment, and it is completely suitable for general industrial sites measurement and control needs.
Pressure Sensor Transmitter Discription
NP93420 series diffused silicon pressure sensors are all use imported chips, a new generation of pressure sensors produced after careful structural design, signal processing and assembly, and testing in strict accordance with national standards. This series of products has stable output, high sensitivity and precision, and also has good temperature characteristics and strong anti-interference ability.
