Product Details:
|
| Seal Gauge Pressure: | 0~7KPa~100MPa | Absolute Pressure: | 0~20KPa~35MPa |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa | Diaphragm Material: | 316 L(optional) |
| Live Display: | LCD(optional) | Product Model: | NP-93420-IT |
| Typical Application: | Liquid, Gas, Steam | ||
| High Light: | Liquid Tank Pressure Transmitter,Ultra High Temperature Pressure Sensor Transmitter,High Temperature Pressure Transmitter 93420 |
||

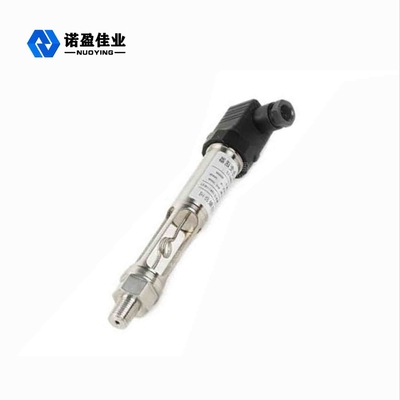

Ultra High Temperature Type 93420 Pressure Sensor Transmitter
Ultra High Temperature Type Technical Parameter
| Typical application | Liquid, gas, steam | |||
| Product model | NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III | |||
| Measuring range | Upper limit URL | |||
| Gauge pressure | Seal gauge pressure | Absolute pressure | Gauge pressure | |
| 0~5KPa~3.5MPa | 0~7KPa~100MPa | 0~20KPa~35MPa | 0~0.1KPa~2MPa | |
| Diaphragm material | 316 L(optional) | |||
| Accuracy class | Class 0.1, Class 0.2 | |||
| Power supply | 24VDC | |||
| Signal output | 4... 20mA/HART/RS485/Modbus... | |||
Ultra High Temperature Type Design Feature
◎The dedicated V/I integrated circuit has few peripheral devices, high reliability, simple and easy maintenance, small size, light weight, and extremely convenient installation .
◎4-20mA DC two-wire signal transmission, strong anti-interference ability and long transmission distance.
