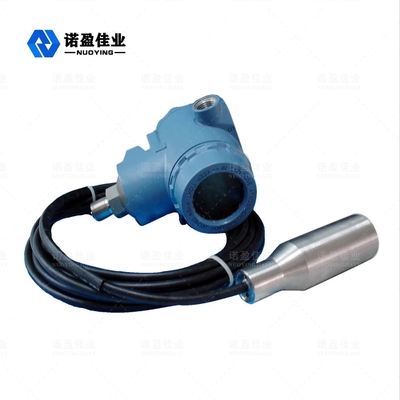

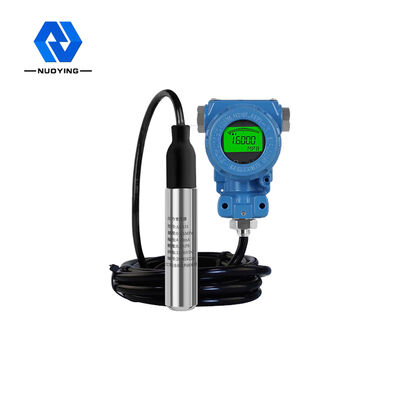

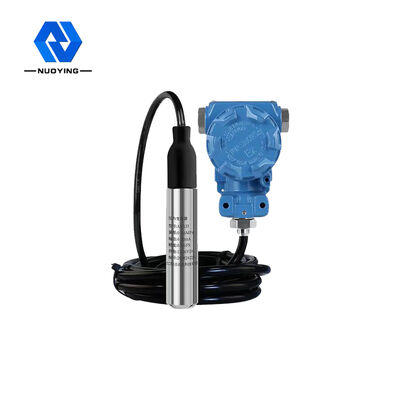

Thread Type Liquid Pressure Sensor Transmitter Petroleum Chemical Industry

Thread Type Liquid Pressure Sensor Transmitter Petroleum Chemical Industry

Brand Name: NUOYINGJIAYE
Model Number: NH-93420
MOQ: 1 pcs
Price: Please Contact Me
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Product Model:
NH-93420
Typical Application:
Liquid
Measuring Range:
Cable 0~200m
Process Temperature:
-10~+70℃
Load Capacity:
<(U-15)/0.02A
Stable Performance:
±0.5%F.S/ Year
Protection Grade:
IP68
Accuracy Class:
+0.25%F.S
Packaging Details:
Carton, 60cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

Thread Liquid Level Transmitter

,

Chemical Industry Pressure Sensor Transmitter

,

Liquid Differential Pressure Sensor IP68

Product Description

Thread Type Petroleum Chemical Industry Liquid Level Transmitter





Liquid Level Transmitter Discription



NH-93420 series liquid level transmitter is an all stainless steel design, fully sealed submersible solid piezoresistive liquid level measuring instrument. This product uses high-stability and high-reliability piezoresistive pressure sensors from famous foreign brands, as well as high-precision intelligent transmitter processing circuits, and adopts precise digital temperature compensation technology and nonlinear correction technology to The bit signal is converted into a standard electrical signal output.



Liquid Level Transmitter Design Feature



◎Good stability and high precision.

◎The structure is exquisite, it can be directly put into the measured medium to measure the liquid level, and it is very convenient to install and use.

◎Wide range of temperature compensation.



Liquid Level Transmitter Technical Parameter



Typical application Liquid
Product model NH-93420
Measuring range Upper limit URL
  Type Cable Hard rod Cable type anti-corrosion type Rod anti-corrosion type
  L(m) 0~200m 0~4m 0~200m 0~4m
Diaphragm material 316 L, ceramic diaphragm (optional)
Accuracy class +0.25%F.S,+0.5%F.S,土1.0%F.S
Power supply 24VDC
