Product Details:
|
| Model: | NP-93420-CX | Medium: | Liquid |
|---|---|---|---|
| Temperature: | -40-85℃ | Pressure: | Atmospheric Pressure |
| Power Supply: | 24VDC | Output: | 4-20mA/HART/RS485 |
| Diaphragm Material: | 316L | Damping Time: | 0.1-16s |
| High Light: | Water Differential Pressure Sensor Transmitter,Die Cast Differential Pressure Transmitter,20mA Differential Pressure Sensor Transmitter |
||

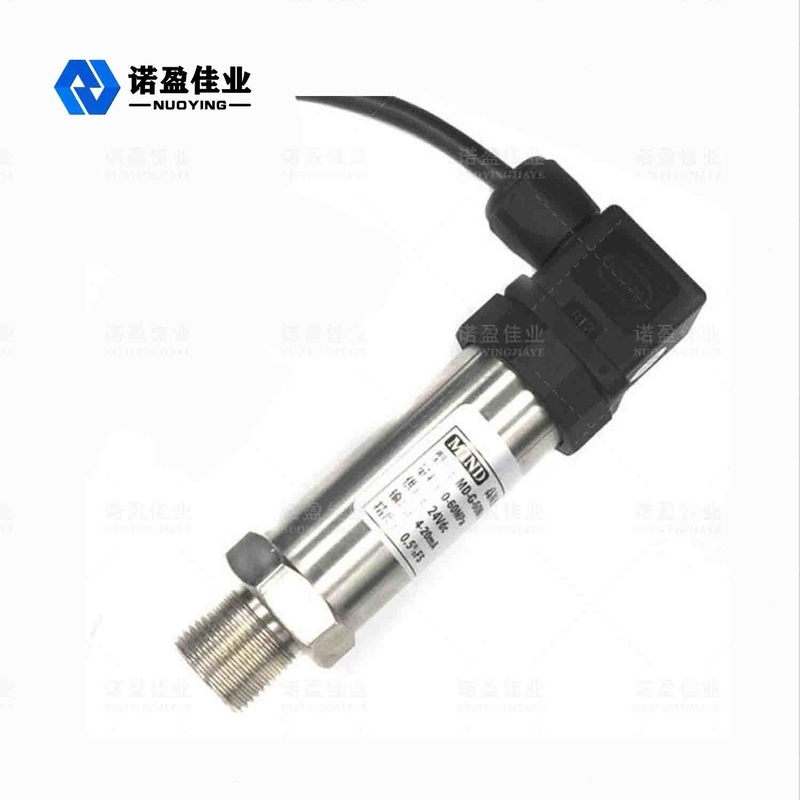

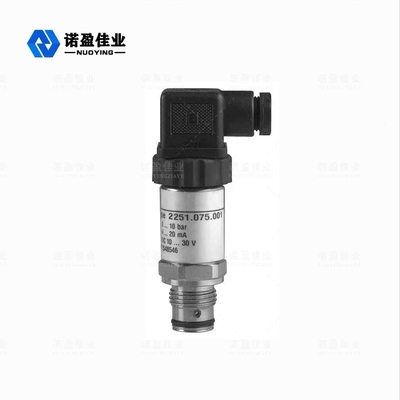

High Sensitivity NP-93420-CX Die Cast Water Differential Pressure Transmitter
NP-93420-CX Die Cast Water Differential Pressure Transmitter
The pressure switches NP-93420 use of time ested ceramic or thick film sensor, switching currents from a few μA up to 500mA can be switched by the output transistors.Adjustment ranges from 0……1bar to 0……600 bar.The high-quality stainless steel housing qualifies the NP-93420 also for the usage under adverse conditions.Rotatable display head.Sensing element ceramic or thick-film. For the higher pressure ranges all wetted parts are made of stainless steel, therefore working with almost every media. 4……20mA/0……20mA configurable.The NP-93420 are multifunctional applicable for measurement tasks within hydraulic and pneumatic applications.All stainless steel housing.
NP-93420-CX Die Cast Water Differential Pressure Transmitter Parameter
| pressure range | Bar | 1 | 2 | 5 | 10 | 16 | 25 | 60 | 100 | 160 | 250 | 400 | 600 |
| Pai | 15 | 30 | 75 | 145 | 230 | 370 | 900 | 1500 | 2300 | 3600 | 600 | 9000 | |
| Max. overload pressure | x5 | x3 | x2 | x1.5 | x1.3 | ||||||||
| Min. breakdown pressure | x6 | x4 | x3 | x2 | x1.6 |
||||||||
Note: Products can be customized according to the specific requirement of users!
