Product Details:
|
| Typical Application: | Liquid Level Measurement | Product Models: | NYUHZ |
|---|---|---|---|
| Installation Form: | Side Mounted, Top Mounted | Body Material: | 304、316 |
| Measuring Range: | 0~6m | Measurement Precision: | ±3mm、±5mm、 ±10mm、 ±20mm （optional） |
| Medium Density: | ≥0.425g/cm3 | Density Difference: | ≥0.1g/cm3 |
| High Light: | Side Mounted Magnetic Flap Level Gauge,Liquid Magnetic Flap Level Gauge 6m,Solid Magnetic Level Transmitter |
||

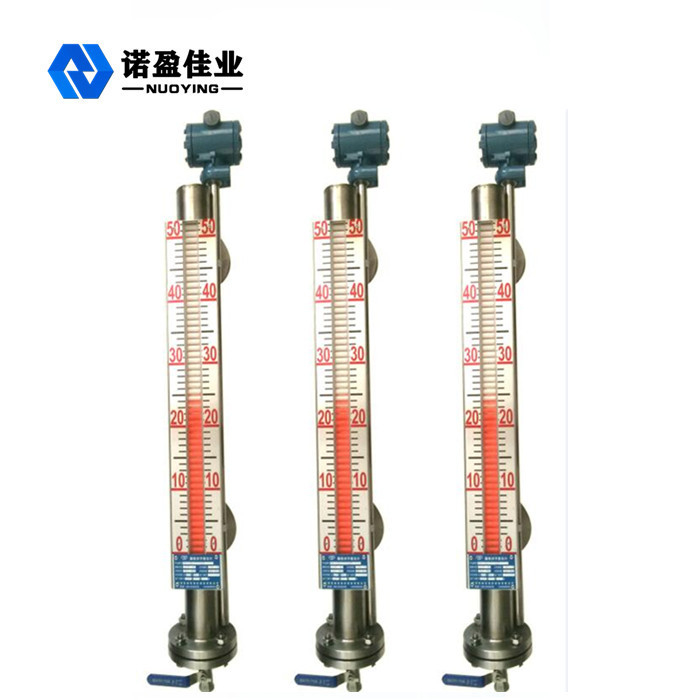

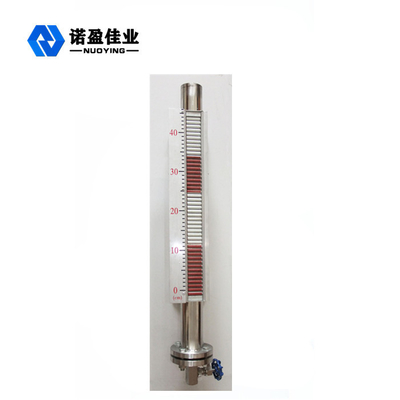

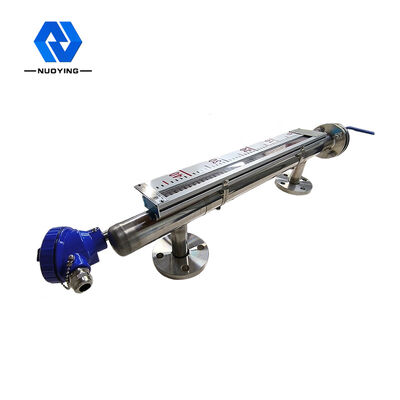

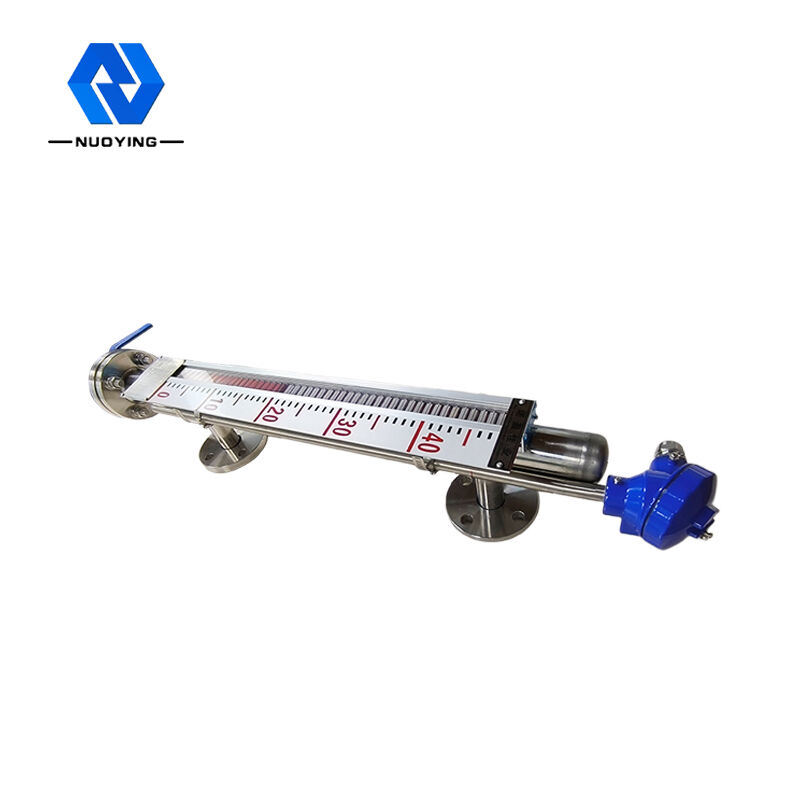

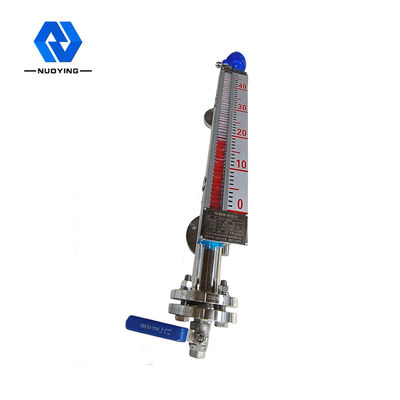

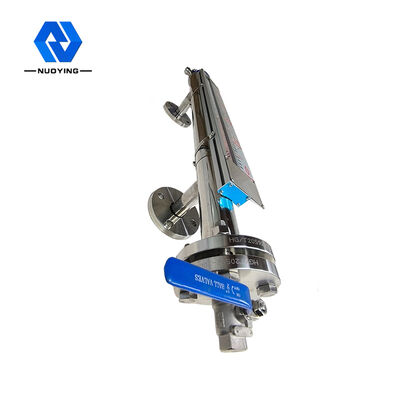

Multiple Installation Forms Magnetic Flap Level Gauge Stable Operation
Working Principle of Magnetic Flap Level Gauge
Each magnetic flap liquid level gauge has a cavity (called measuring tube or main tube) for accommodating the floating ball. The cavity forms a connector with the container through flange or other suitable connection methods. According to the principle of the communicator, the liquid level in the container changes up and down, the liquid level in the cavity and the liquid level in the container are at the same height, so it drives the floating ball in the cavity to move up and down, and rises and falls with the rise and fall of the liquid level in the container. At this time, we can't see the liquid level, so a magnetic column display is installed outside the cavity.
Design feature of Magnetic Flap Level Gauge
◎ simple structure, solid and reliable, stable operation
◎ on site display scale is clear, striking and easy to read
◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid
◎ multiple installation forms and connection forms can be selected
◎ design pressure range: full vacuum to 10MPa
◎ design temperature range: - 160 ~ + 450 ℃
◎ professional design for special pressure and temperature
Technical parameters of Magnetic Flap Level Gauge
| Typical application | Liquid level measurement |
|
product model |
NYUHZ |
| Installation form | Side mounted, top mounted |
| Body Material | 304,316 |
| measuring range | 0~6m |
| Measurement precision | ±3mm,±5mm, ±10mm, ±20mm (selectable) |
| Medium density | ≥0.425g/cm3 |
| Density difference | ≥0.1g/cm3 |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmission output | 4...20mA(power supply 24VDC) |
| Process Temperature |
-50~+350℃ |
| Process Pressure | -0.1~+16MPa |
| Process connection | flange(selectable) |
| resolution ratio | ±1mm |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
