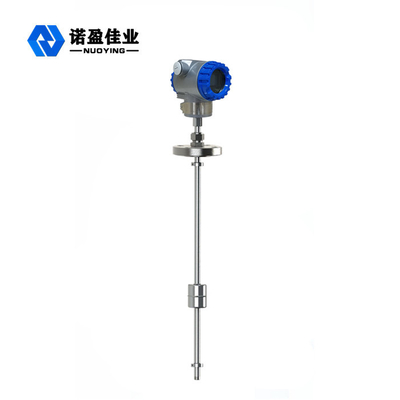

Customized Magnetic Float Ball Level Gauge Lightning Protection

Customized Magnetic Float Ball Level Gauge Lightning Protection
Customized Magnetic Float Ball Level Gauge Lightning Protection

Large Image :  Customized Magnetic Float Ball Level Gauge Lightning Protection

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYCFQ-UL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $400~$500/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

Customized Magnetic Float Ball Level Gauge Lightning Protection

Description
Typical Application: Liquid Level Measurement, Etc Product Models: NYCFQ-UL
Float Material: F4、PP、304、PTFE(selectable) Probe Rod Length: 200~6000mm(can Be Customized)
Ambient Temperature: -40~80℃ Process Temperature: -40~+130℃
Process Pressure: -0.1~2.0Mpa Medium Viscosity: ≤0.05Pa.S
High Light:

Magnetic Float Ball Level Switch

,

Lightning Protection Magnetic Float Level Gauge

,

F4 Float Ball Magnetic Level Transmitter

Customized Magnetic Float Ball Level Gauge Lightning Protection



Working Principle of Magnetic Float Ball Level Gauge



NYCFQ series maglev ball level gauge is designed based on the principle of buoyancy and magnetic force. The magnetic float ball liquid level meter is installed with one or more dry reeds in the closed non-magnetic tube, and then passes the tube through one or more hollow floating balls with ring magnets inside. The ring-shaped magnetic float will drive the floating balls to move up and down along with the rise or fall of the liquid, so that the dry reeds in the non-magnetic tube will be attracted or disconnected, and the resistance signal corresponding to the liquid level will be output and converted into a 4-20mA standard signal output, It can also send a contact on (off) conversion signal.


Design feature of Magnetic Float Ball Level Gauge



◎ customized design, multi-point control, wide application range

◎ stable and reliable performance, strong lightning protection and interference resistance

◎ Multiple probe forms, suitable for various complex working conditions

◎ different floating ball materials can be selected according to different medium density



Technical parameters of Magnetic Float Ball Level Gauge



Typical application Liquid level measurement, etc

product model

NYCFQ-UL,NYCFQ-UK
Float material F4,PP,304,PTFE(selectable)
Probe rod length 200~6000mm(can be customized)
ambient temperature -40~80℃
Process Temperature -40~+130℃
Process Pressure -0.1~2.0Mpa
Process connection bracket,flange(selectable)
Medium viscosity ≤0.05Pa.S
Medium density 0.5~2.0g/cm3
levels of protection IP65,IP67,IP68(selectable)
Explosion-proof grade Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
