Product Details:
|
| Typical Application: | Liquid | Product Models: | NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4、PP | Probe Rod Length: | 200~6000mm |
| Ambient Temperature: | -40 ~ 80℃ | Process Temperature: | -40 ~ +130℃ |
| Process Pressure: | -0.1~ 2.0Mpa | Medium Viscosity: | ≤0.05Pa. S |
| High Light: | Float Ball Magnetic Liquid Level Gauge,2.0Mpa Magnetic Float Level Gauge,Liquid Magnetic Level Gauge 6000mm |
||

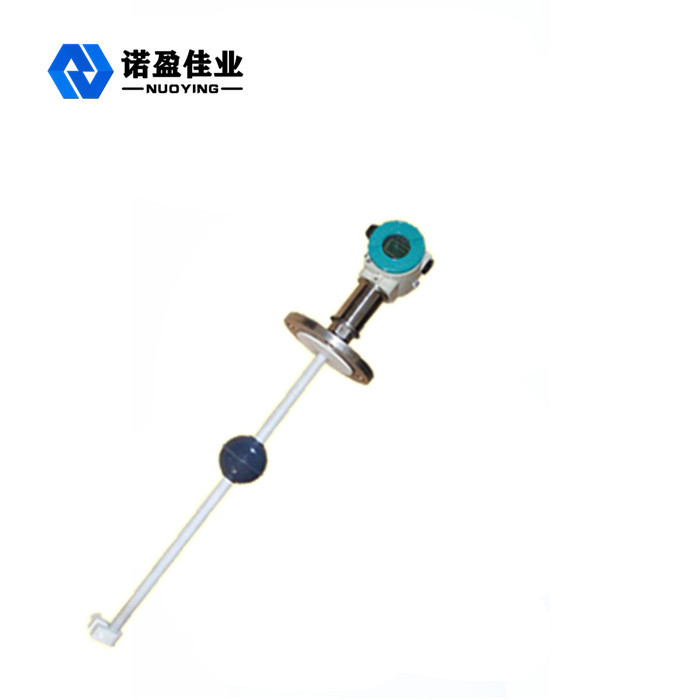

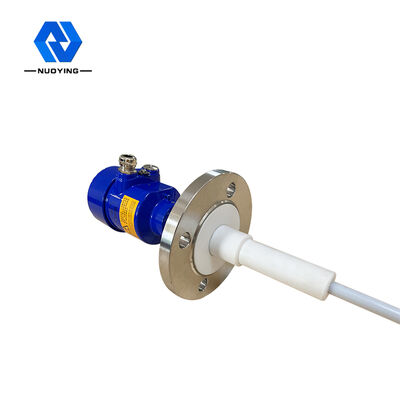

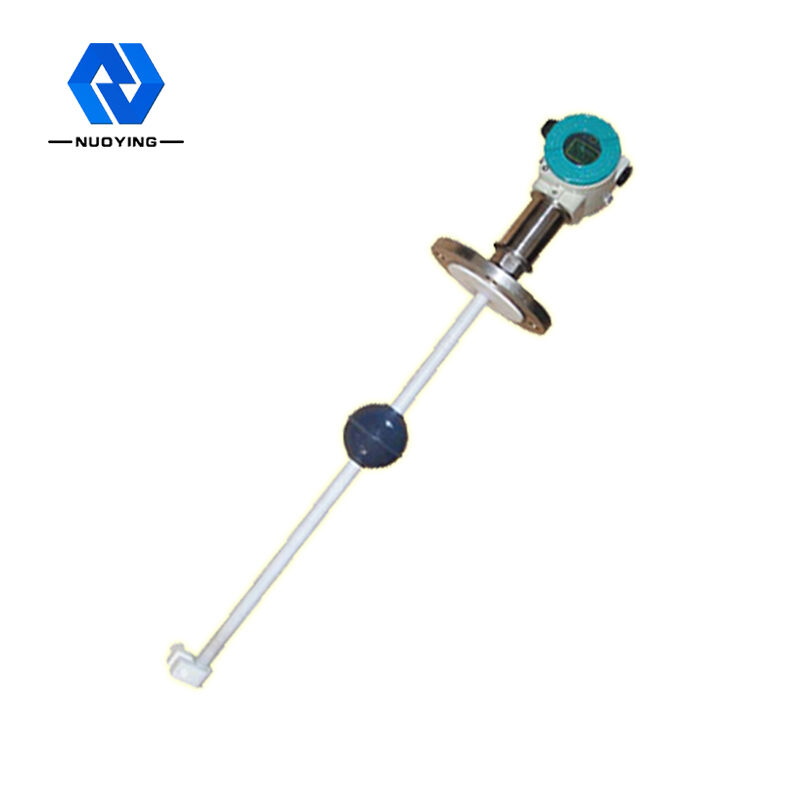

High Stability Magnetic Float Ball Level Gauge For Liquid Measurement
Working Principle of Magnetic Float Ball Level Gauge
The level gauge is installed with one or more dry reeds in the closed non-magnetic tube, and then passes the tube through one or more hollow floating balls with ring magnets inside. The ring-shaped magnetic float will drive the floating balls to move up and down along with the rise or fall of the liquid, so that the dry reeds in the non-magnetic tube will be attracted or disconnected, and the resistance signal corresponding to the liquid level will be output and converted into a 4-20mA standard signal output, It can also send a contact on (off) conversion signal.
Design feature of Magnetic Float Ball Level Gauge
◎ Multiple probe forms, suitable for various complex working conditions
◎ different floating ball materials can be selected according to different medium density
◎ customized design, multi-point control, wide application range
◎ stable and reliable performance, strong lightning protection and interference resistance
◎ simple structure, easy installation and low maintenance cost
Technical parameters of Magnetic Float Ball Level Gauge
| Typical application | Liquid |
|
product model |
NYCFQ-UK |
| Float material | F4,PP,304,PTFE (selectable) |
| Probe rod length | 200~6000mm (can be customized) |
| ambient temperature | -40~ 80℃ |
| Process Temperature | -40~+ 130℃ |
| Process Pressure | -0.1~2.0 Mpa |
| Process connection | bracket,flange (selectable) |
| Medium viscosity | ≤0.05 Pa.S |
| Medium density | 0.5~2.0g/ cm3 |
| levels of protection | IP65,IP67,IP68 (selectable) |
| Explosion-proof grade | Exd II CT6 Gb (See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
