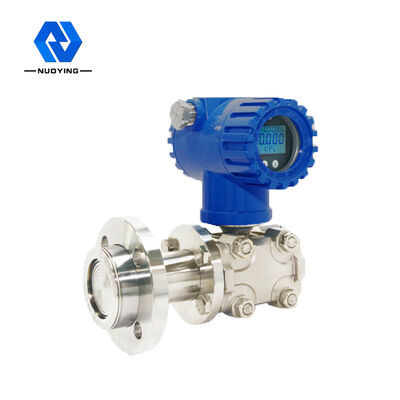

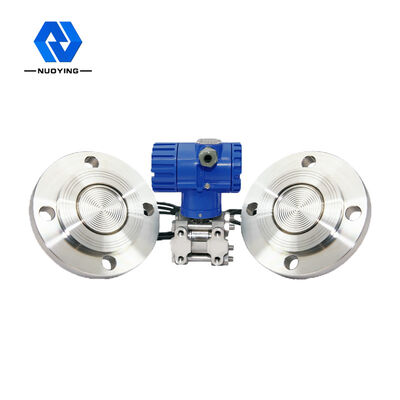

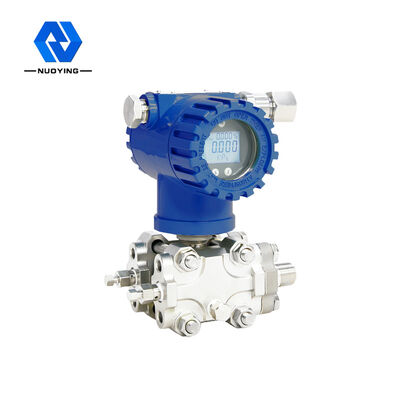

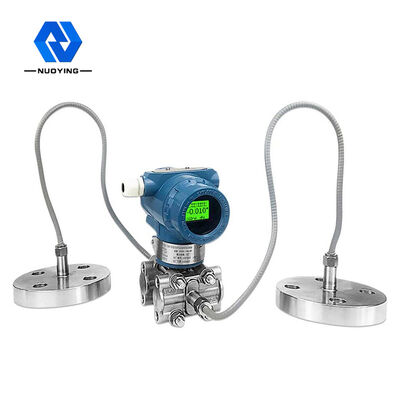

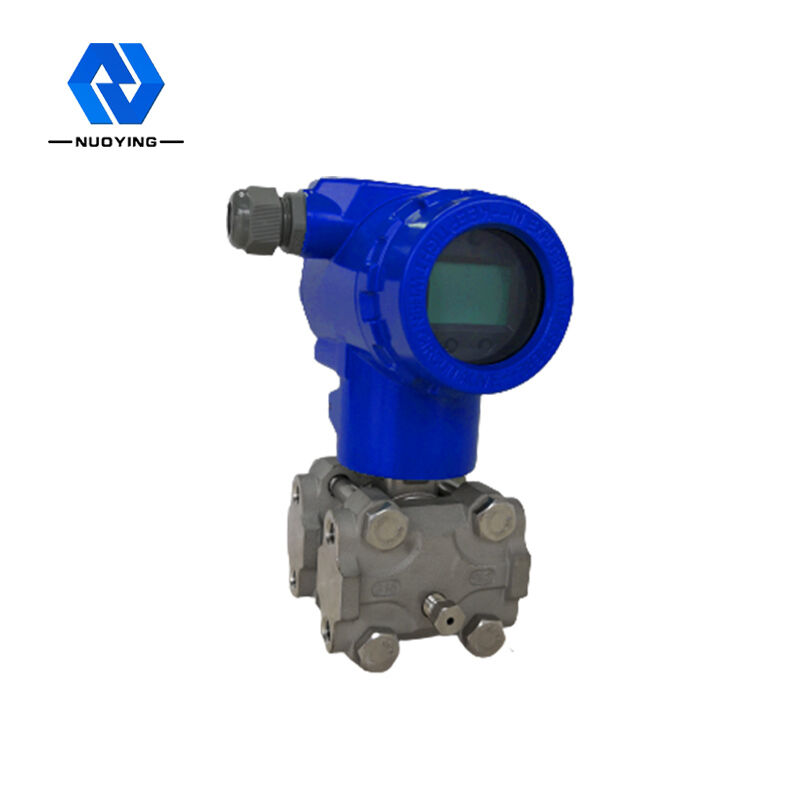

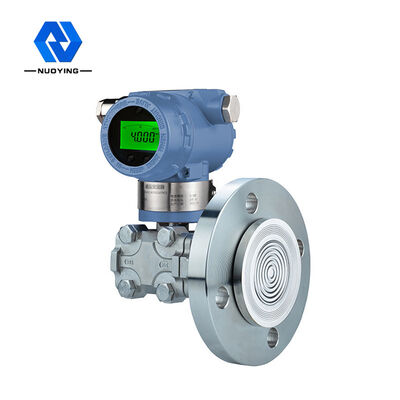

High Precision Differential Pressure Transmitter Inert Oil Power Off Protection

High Precision Differential Pressure Transmitter Inert Oil Power Off Protection
High Precision Differential Pressure Transmitter Inert Oil Power Off Protection

Large Image :  High Precision Differential Pressure Transmitter Inert Oil Power Off Protection

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NY3051
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $200~$300/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

High Precision Differential Pressure Transmitter Inert Oil Power Off Protection

Description
Typical Application: Liquid, Gas, Steam Product Models: NY3051
Filling Fluid: Silicone Oil, Inert Oil(selectable) Diaphragm Material: 316L、Ha C Alloy(can Be Customized)
Accuracy Grade: 0.025、0.075、0.1、0.2 Signal Output: 4...20mA/HART/RS485/Modbus...
Ambient Temperature: -40~+85℃ Process Temperature: -25~+125℃(>125℃ Can Be Customized)
High Light:

Inert Oil Differential Pressure Transmitter

,

Power Off Protection Pressure Transmitter 20mA

,

316L Differential Pressure Transmitter

High Precision Differential Pressure Transmitter Power-Off Protection Function



Working Principle of Differential Pressure Transmitter



NY3051 series intelligent differential pressure / pressure transmitter has a variable capacitance sensing component called“ σ” Chamber (see the figure below), process pressure through“ σ” Isolation diaphragms on both sides of the chamber and filling liquid are transmitted to“ σ”, the central diaphragm of the chamber. The central diaphragm is a tensioned elastic element, which produces corresponding deformation displacement for the pressure difference on both sides acting on it, and this displacement is transformed into a differential capacitance formed on the capacitor plate. The differential capacitance is converted into a standard output signal by an electronic circuit.


Design feature of Differential Pressure Transmitter



◎High accuracy and good stability

◎with continuous self diagnosis, linear compensation and digital fine-tuning functions;

◎local adjustment of zero position and range can be realized, and remote adjustment can also be realized through remote manual operator and computer;

◎linear or square root output can be selected according to different applications;

◎the damping time can be set to change between 0.1 and 16S;

◎The pressure value unit can be converted between kPa, PA, inh2o, bar, etc

◎The failure and safety modes can be set by toggling the failure / safety switch

◎It has single point, multi-point and burst modes

◎it has power-off protection function, and can automatically save its working data when power is off;

◎solid components, plug-in printed circuit boards, small, light, strong and earthquake resistant;

◎good one-way overload protection



Technical parameters of Differential Pressure Transmitter

Typical application Liquid, gas, steam

product model

NY3051
measuring range Upper limit URL
Code 1 2 3 4 5 6 7 8
URL(MPa) 0.006 0.04 0.25 1.0 2.5 10 25 40
Filling fluid Silicone oil, inert oil(selectable)
Diaphragm material 316L,Ha C alloy(can be customized)
Accuracy grade 0.025,0.075,0.1,0.2
Power Supply 24VDC
Signal Output 4...20mA/HART/RS485/Modbus...
Ambient Temperature -40~+85℃
Process Temperature -25~+125℃(>125℃ can be customized)
Process connection screw thread,flange(selectable)
Damping time 0.1~16s adjustable
Field display LCD (selectable)
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
