Product Details:
|
| Typical Application: | Liquid | Product Models: | NP-93420-IB |
|---|---|---|---|
| Diaphragm Material: | 316L（can Be Customized） | Damping Time: | 0.1~16s Adjustable |
| Accuracy Grade: | 0.1、0.2 | Signal Output: | 4...20mA\RS485/Modbus... |
| Permitted Overload: | ≤2 Times Of Rated Range | Field Display: | LCD (selectable) |
| High Light: | Sealing Pressure Sensor Transmitter,Pressure Transmitter Anti Corrosion,RS485 Liquid Pressure Transmitter |
||

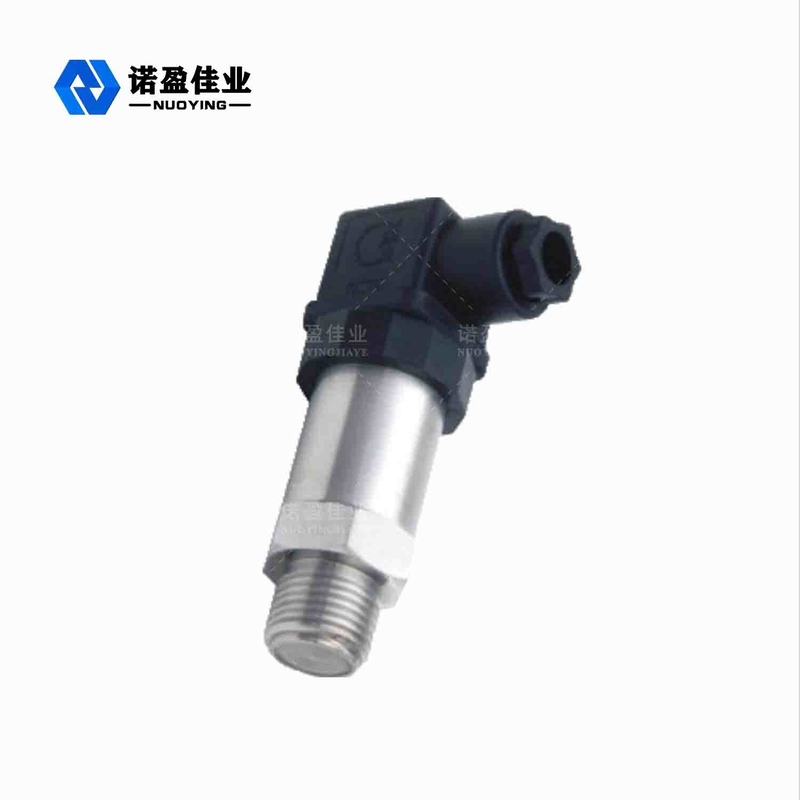

High Sensibility Pressure Transmitter Sealing And Anti-Corrosion
Working Principle of Pressure Transmitter
NP93420 series uses the piezoresistive effect of semiconductors and micromachining technology to make Wheatstone bridges on the specific crystal direction of single-crystal silicon wafer by using semiconductor processes such as photolithography and diffusion to form a sensitive film. When it is subjected to external force, it will slightly change, and the resistivity will change, so that the bridge arm resistance will change (one pair will become larger and the other pair will become smaller) to excite voltage signal output. Through computer temperature compensation, laser resistance modulation, signal amplification and other processing methods, as well as strict assembly detection, calibration and other processes, the pressure transmitter with standard output signal is produced.

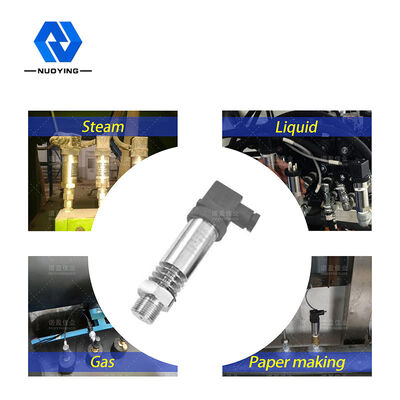

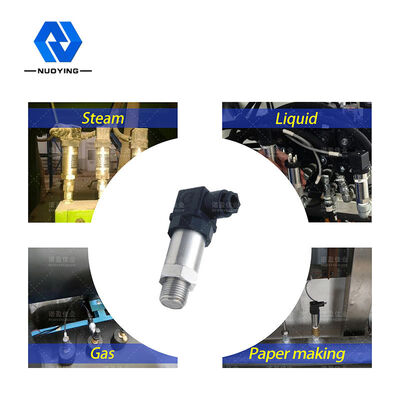

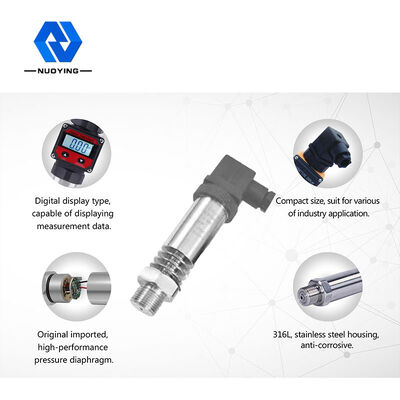

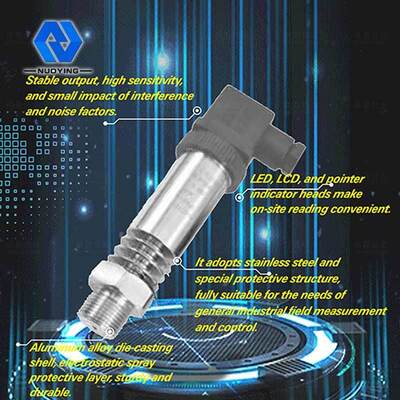

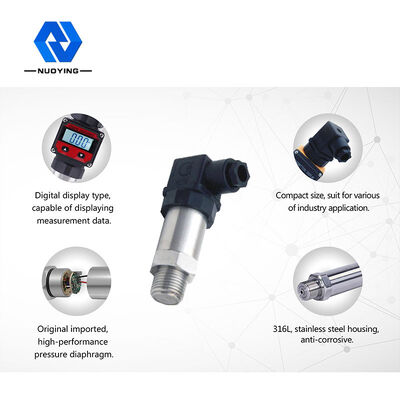

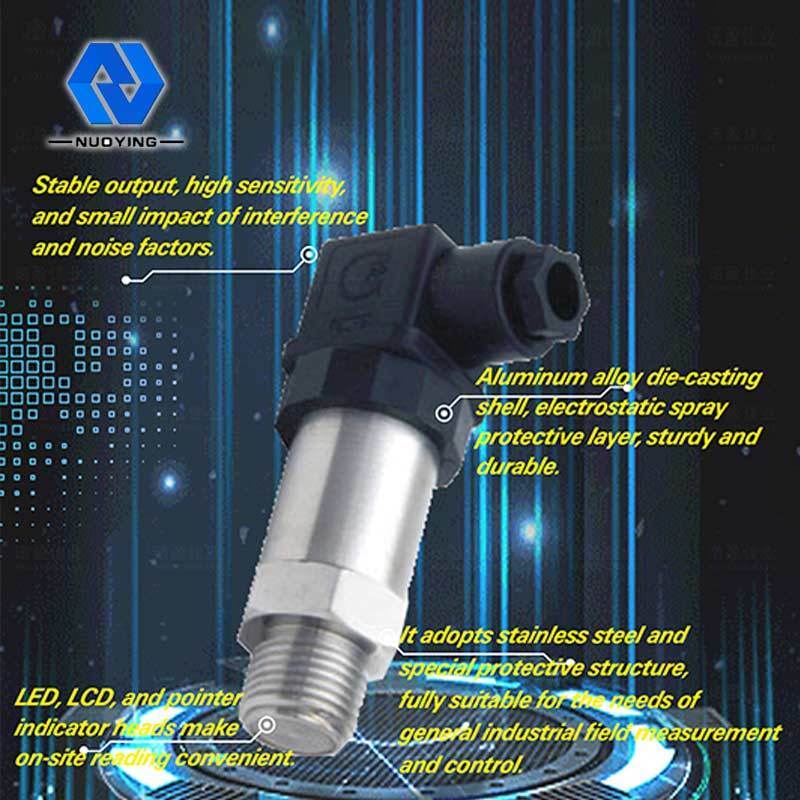

Design feature of Pressure Transmitter
◎The output is stable, the sensitivity is high, the influence of interference and noise is relatively small, the corresponding cost of the amplifier circuit is reduced, and the resolution is greatly improved.
◎special V / I integrated circuit, less peripheral devices, high reliability, simple and easy maintenance, small size, light weight, extremely convenient installation and debugging.
◎aluminum alloy die-casting shell, three end isolation, electrostatic spray protective layer, strong and durable.
◎4-20mA DC two-wire signal transmission, strong anti-interference ability and long transmission distance
◎led, LCD and indicators make it very convenient to read on site. It can be used to measure viscous, crystalline and corrosive media.
◎when used in hazardous and explosive fields, the diffused silicon pressure transmitter is used. The product has the characteristics of low current, low voltage and low power consumption. It is an intrinsically safe explosion-proof product and is equipped with an explosion-proof certificate
◎stainless steel materials and special protective structures, as well as a series of protection measures such as lightning protection, anti-interference, anti-voltage and over-current of the amplification circuit, improve the ability of reliable sealing and anti-corrosion and anti harsh working environment, and fully meet the needs of general industrial field measurement and control
Technical parameters of Pressure Transmitter
| Typical application | Liquid, gas, steam | |||
|
product model |
NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III | |||
| measuring range | Upper limit URL | |||
| Gauge pressure | Seal gauge pressure | Absolute pressure | Gauge pressure | |
| 0~5KPa~3.5MPa | 0~7KPa~100MPa | 0~20KPa~35MPa | 0~0.1KPa~2MPa | |
| Diaphragm material | 316L(can be customized) | |||
| Accuracy grade | 0.1,0.2 | |||
| Power Supply | 24VDC | |||
| Signal Output | 4...20mA/HART/RS485/Modbus... | |||
| Ambient Temperature | -40~+85℃ | |||
| Process Temperature | -25~+125℃(>125℃ can be customized) | |||
| Process connection | screw thread,flange(selectable) | |||
| Damping time | 0.1~16s adjustable | |||
| permitted Overload | ≤2 times of rated range | |||
| Field display | LCD (selectable) | |||
| levels of protection | IP67 | |||
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) | |||
※Note:The product can be customized according to the specific requirements of users.
