Product Details:
|
| Typical Application: | Liquid Level Measurement | Product Model: | NYUHZ |
|---|---|---|---|
| Installation Form: | Side Mounted,top Mounted | Main Material: | 304、316 |
| Measuring Range: | 0~6m | Measuring Accuracy: | ±3mm、±5mm、±10mm、±20mm(optional) |
| Medium Density: | ≥0.425g/cm³ | Density Difference: | ≥0.1g/cm³ |
| High Light: | Measuring Tank Flap Magnetic Level Transmitter,Corrosion Resistant Magnetic Flap Level Gauge,Liquid Magnetic Gauge Meter |
||

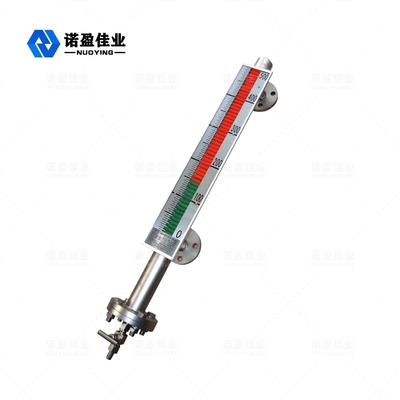

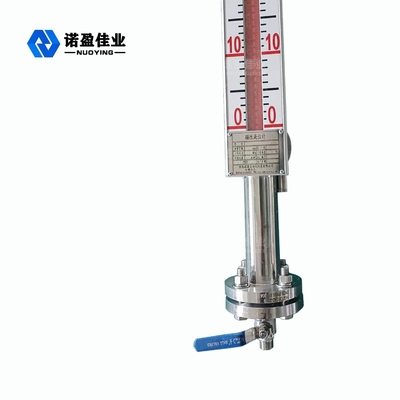

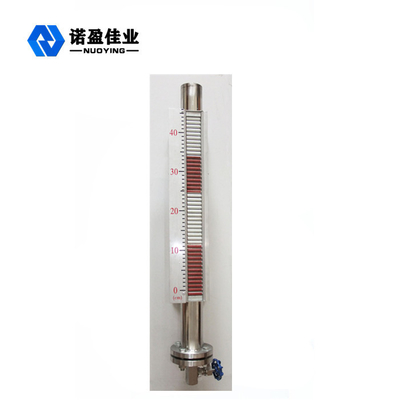

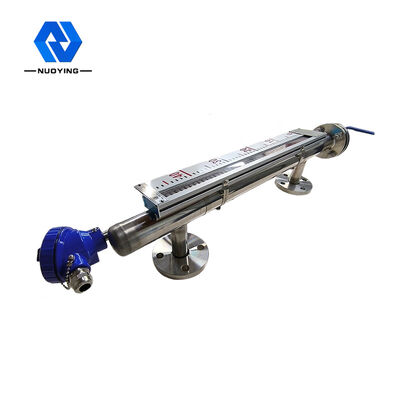

Measuring Tank Magnetic Flap Level Meter For Liquid Corrosion Resistant Occasions
Working principle
Magnetic level gauge can be used for all kinds of tower, tank, tank, spherical container and boiler and other equipment medium level detection. Magnetic level gauge can achieve high sealing, leakage prevention and suitable for high temperature, high pressure, corrosion resistant occasions.
The magnetic level gauge has a cavity to accommodate the floating ball (called the measuring tube or the main tube), which is composed of a connector with the container through a flange or other suitable connection. According to the principle of the connector, with the change of the liquid level in the container, the page in the cavity and the liquid level in the container are of the same height, so it drives the floating ball in the cavity to move up and down, and rises and falls with the liquid level in the container. At this time, we can not see the liquid level, so a magnetic flip column display is installed outside the cavity.

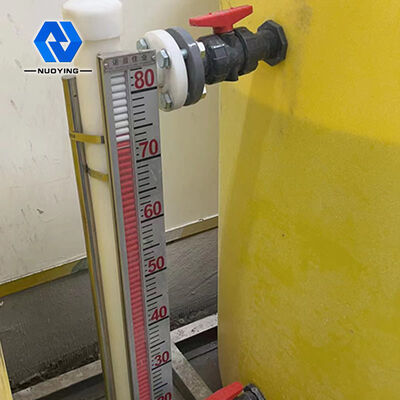

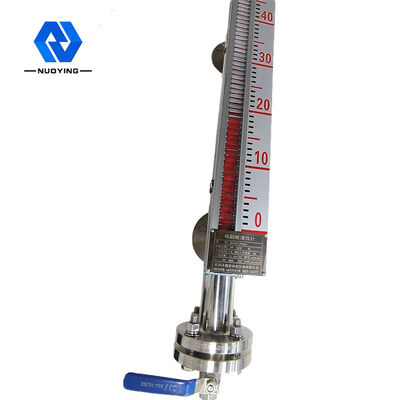

Floating ball into liquid and were part of the border installed permanent magnet steel, when the measured liquid level fluctuation of the container, tube of the magnetic float level gauge ontology is lifting, float in the permanent magnets by magnetic coupling to a magnetic column indicator, column turn 180 ° driver red, white, when the liquid level rises, double column from white to red, When the liquid level drops, the column changes from red to white, and the red and white junction of the indicator is the actual height of the liquid level inside the container, so as to achieve a clear indication of the liquid level.
1.Vent plug
2.Measuring tube
3.Magnetic flip display
4.Magnetic flip column
5.Float
6.Fixed clamp
7.Signage
8.Drain valve
9.Sewage pipe
10.Connection flange
Design feature
◎Simple structure, solid and reliable, stable operation.
◎The field display scale is clear and eye-catching and easy to read.
◎Can measure and indicate the level of liquid with corrosive, flammable, toxic, high temperature, stirring pollution.

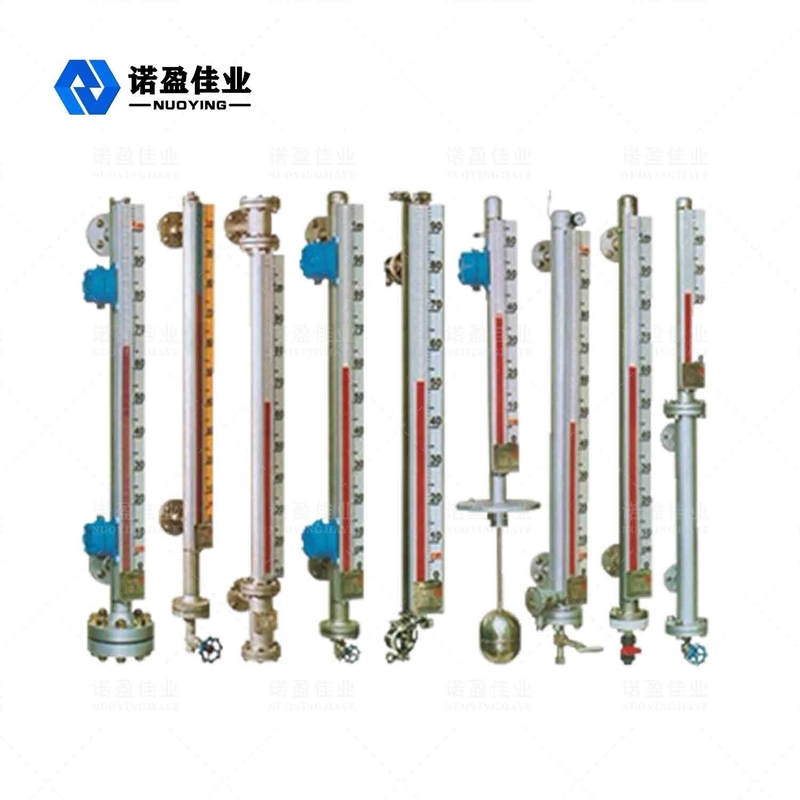

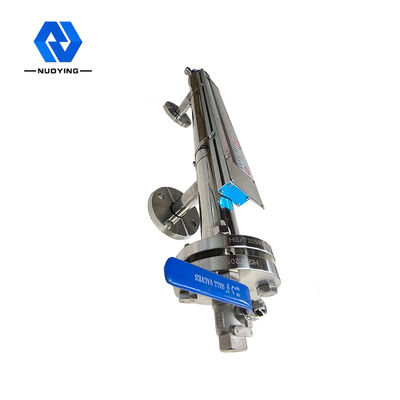

◎Various installation forms and various connection forms can be selected.
◎The designed pressure range is full vacuum to 10MPa.
◎Design temperature range -160~+450℃.
◎It can be specially designed for special pressure and temperature.
Technical parameter
| Typical application | Liquid level measurement |
| Product model | NYUHZ |
| Installation form | Side mounted,top mounted |
| Main material | 304,316 |
| Measuring range | 0~6m |
| Measuring accuracy | ±3mm,±5mm,±10mm,±20mm(optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmit output | 4...20mA(power supply 24VDC) |
| Process temperature | -50~+350℃ |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange(optional) |
| Resolution | 士I mm |
| Protection class | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaⅡCT6Ga,ExdⅡ CT6Gb(see the certificate) |
♦ Remarks: Products can be customized according to your specific requirements!
For more product details, please contact me! Thank you~
