Product Details:
|
| Typical Application: | Liquid Level Measurement,etc. | Product Model: | NYCFQ-UL、NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4、PP、304、PTFE(optional) | Rod Length: | 200~6000mm(Can Be Customized) |
| Ambient Temperature: | -40~+80℃ | Process Temperature: | -40~+130C |
| Process Pressure: | -0.1~2.0MPa | Process Connection: | Thread,flange(optional) |
| High Light: | Flange Magnetic Float Level Meter,Anti Interference Magnetic Level Transmitter,Lightning Protection Magnetic Float Level Meter |
||

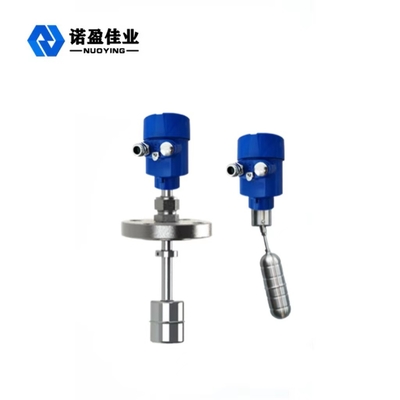

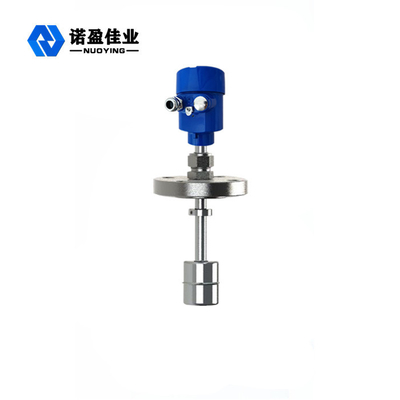

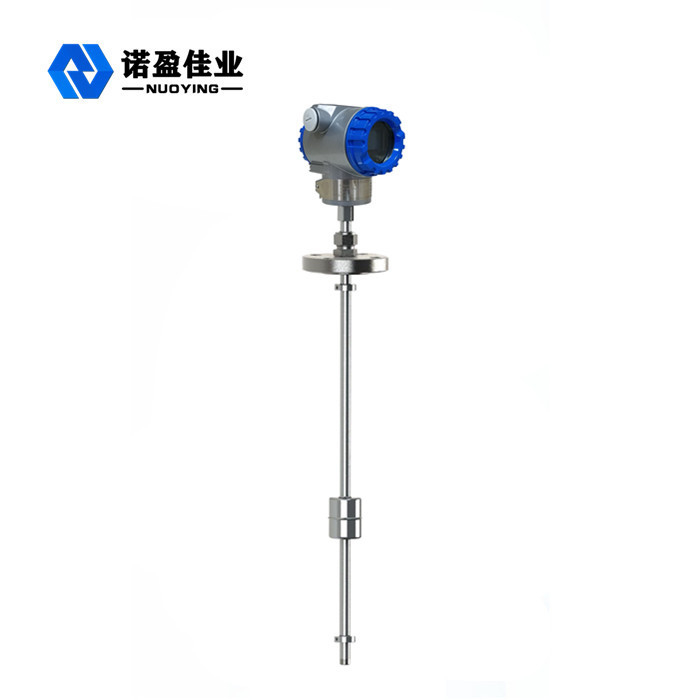

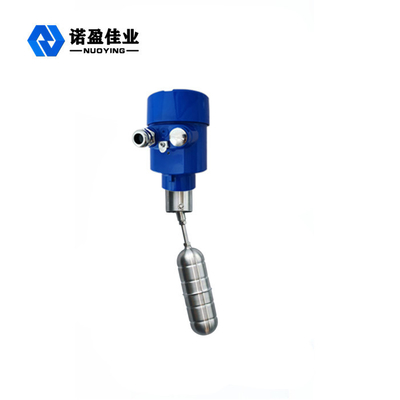

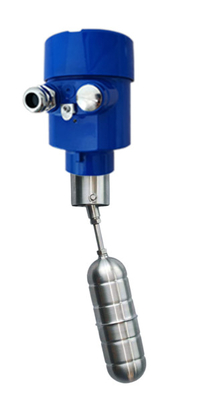

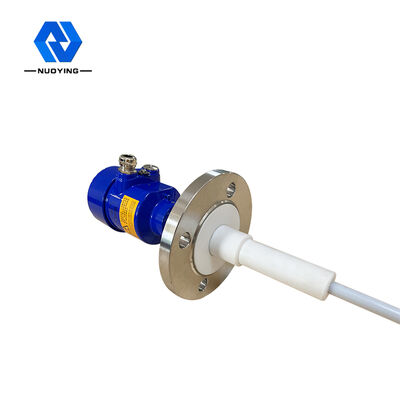

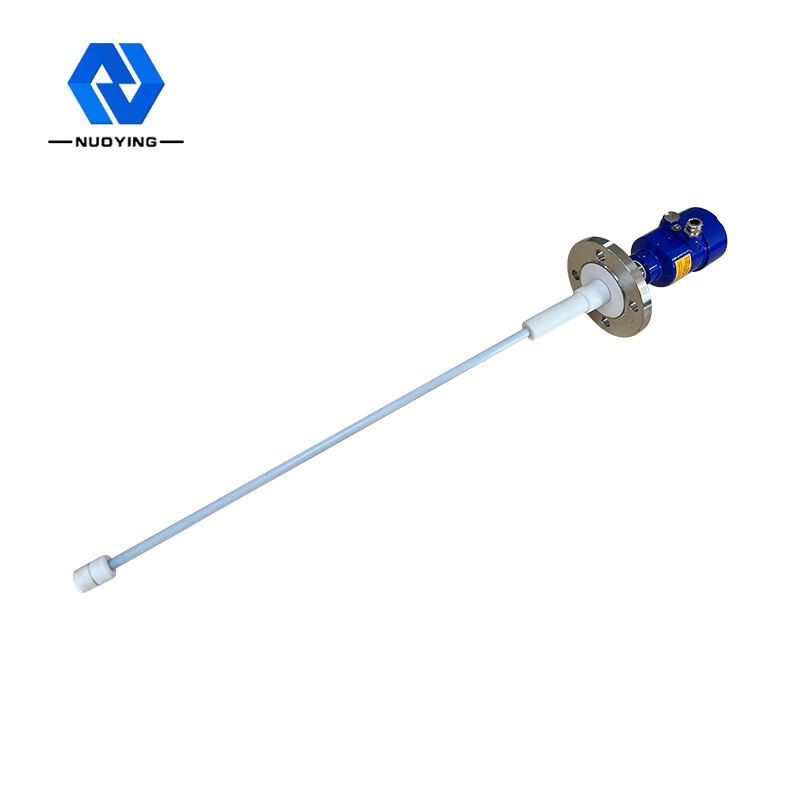

Thread Flange Magnetic Float Level Meter Lightning Protectionanti Interference Ability
NYCFQ series magnetic float level gauge is designed based on the principle of buoyancy and magnetic force. Maglev ball liquid level meter in airtight non magnetic conductivity tube fitted with one or more of the dry reed pipe, then the tube through one or more hollow and internal ring magnets floating ball, annular magnetic float up or down with the liquid will drive the floating ball move up and down together, so that the non magnetic conductivity tube suction reed tube or disconnect the action, The output resistance signal corresponding to the liquid level is converted into 4-20mA standard signal output, and the contact open (off conversion signal) can also be issued.
Working principle
NYCFQ series magnetic float level gauge is designed based on the principle of buoyancy and magnetic force. Maglev ball liquid level meter in airtight non magnetic conductivity tube fitted with one or more of the dry reed pipe, then the tube through one or more hollow and internal ring magnets floating ball, annular magnetic float up or down with the liquid will drive the floating ball move up and down together, so that the non magnetic conductivity tube suction reed tube or disconnect the action, The output resistance signal corresponding to the liquid level is converted into 4-20mA standard signal output, and the contact open (off conversion signal) can also be issued.
Design feature
•Custom design, multi-point control, wide range of application;
•Simple structure, convenient installation, low maintenance cost;
•Stable and reliable performance, lightning protection, anti-interference ability;
•A variety of probe forms, suitable for a variety of complex working conditions;
•Different float materials can be selected according to the different density of the medium.
Technical parameter
| Typical application | Liquid level measurement,etc. |
| Product model | NYCFQ-UL,NYCFQ-UK |
| Float material | F4,PP,304,PTFE(optional) |
| Rod length | 200~6000mm(Can be customized) |
| Ambient temperature | -40~+80℃ |
| Process temperature | -40~+130C |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread,flange(optional) |
| Medium viscosity | ≤0.05Pa·S |
| Medium density | 0.5~2.0g/cm³ |
| Signal output | 4-20mA,SPDT |
| Protection grade | IP65,IP67,IP68 |
| Explosion-proof grade | Exd ⅡCT6 Gb(see the certificate) |
| www.china-nyjy.com | |
♦ Remarks: Products can be customized according to your specific requirements!
For more product details, please contact me! Thank you~
