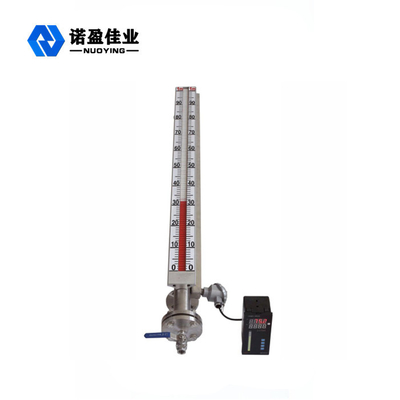

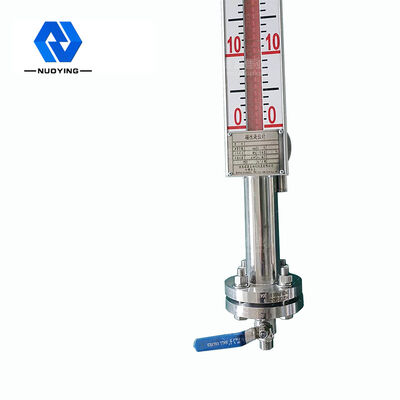

Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

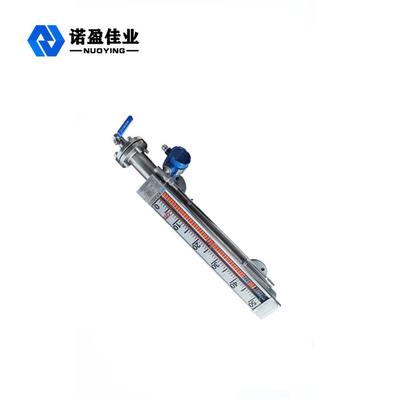

Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

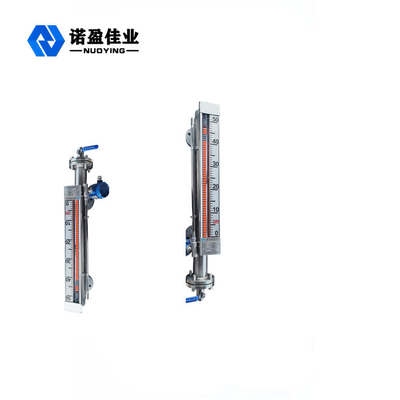

Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

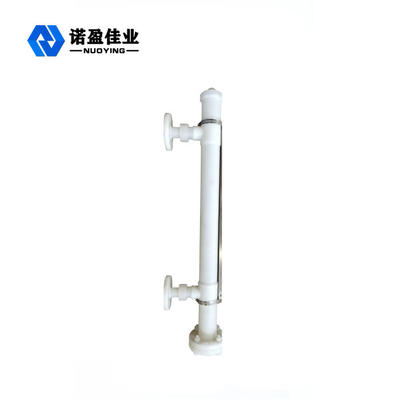

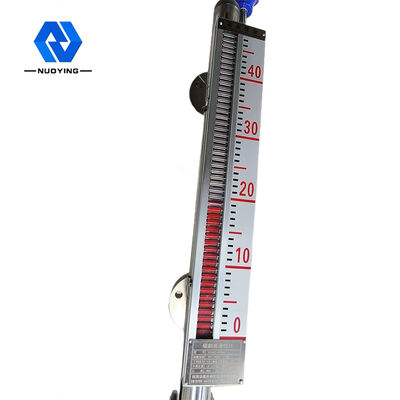

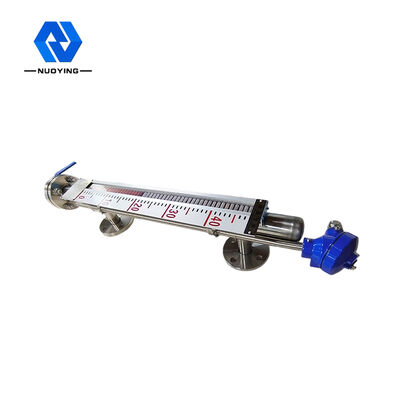

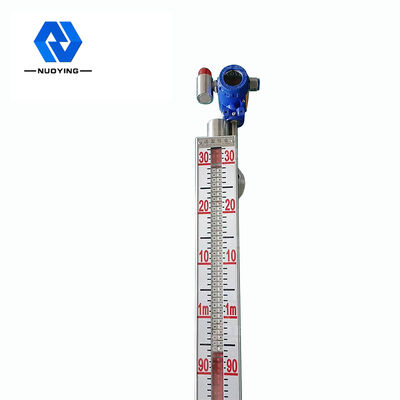

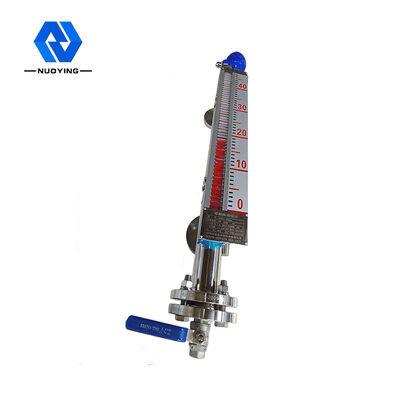

Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

Large Image :  Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: ExdⅡCT6/ExmbⅡCT6
Model Number: NYUHZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA

Description
Typical Application: Liquid Level Measurement Product Model: NYUHZ
Installation Form: Side Mounted,top Mounted Main Material: 304、316
Measuring Range: 0~6m Measuring Accuracy: ±3mm、±5mm、±10mm、±20mm(optional)
Medium Density: ≥0.425g/cm³ Density Difference: ≥0.1g/cm³
High Light:

Water Magnetic Float Level Gauge

,

NYUHZ Magnetic Level Meter

,

Side Mounted Magnetic Float Level Gauge

Manufactory Water level sensor Magnetic Float level gauge



Description Water level sensor Magnetic Float level gauge



Introducing and absorbing domestic and foreign products, and to digest, absorb, improve the original magnetic level gauge standards promulgated by the Ministry of Chemical Industry HG/T21584 -95 developed products. Can be used in a variety of media level measurement towers, tanks, tank, spherical vessels and boilers and other equipment. The magnetic level gauge series can achieve high sealed, leak-proof and adaptation level measurement under high pressure, high temperature, corrosive conditions.The entire process of measuring non-blind, eye-catching display, intuitive readings. In particular site instruction part, because no direct contact with the liquid medium, so the high temperature, high pressure, high viscosity, toxic, harmful, corrosive media, can show its superiority. Therefore, it is more thanthe traditional glass, plate level gauge with higher reliability, security, advanced,practical.

The gauge of the most notable feature is the liquid medium and the indicator completely isolated, so in any case are very safe, durable, and various types of level gauge coupled with level alarm, control switches, or community level can be achieved the bit, the lower offside alarm control or interlock; coupled with reed chipset level transmitter can be level, sector-bit signal into a standard

two-wire 4-20mADC signal transmitted to a computer, regulator, liquid digit display device, to achieve long-range indication, detection, recording and control, the series level gauge widely used: the level of the production process in petroleum, chemical, metallurgy, pharmaceutical, food, electricity and other measurement and control.



Detailed Images Water level sensor Magnetic Float level gauge



Manufactory Water level sensor Magnetic Float level gaugeManufactory Water level sensor Magnetic Float level gauge

Specification Water level sensor Magnetic Float level gauge



Side Mounted Magnetic Float Level Gauge For Water 4 - 20mA 2

Technical parameter



Typical application Liquid level measurement
Product model NYUHZ
Installation form Side mounted,top mounted
Main material 304,316
Measuring range 0~6m
Measuring accuracy ±3mm,±5mm,±10mm,±20mm(optional)
Medium density ≥0.425g/cm³
Density difference ≥0.1g/cm³
Medium viscosity ≤0.4Pa.S
Control output 220VAC,1A
Transmit output 4...20mA(power supply 24VDC)
Process temperature -50~+350℃
Process pressure -0.1~+16MPa
Process connection Flange(optional)
Resolution 士I mm
Protection class IP65,IP67,IP68(optional)
Explosion-proof grade ExiaⅡCT6Ga,ExdⅡ CT6Gb(see the certificate)






Features Water level sensor Magnetic Float level gauge



It total, compared with ordinary glass tube and glass plate surface, with the following characteristics:

(1) Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic, corrosive media container use the gauge is safe and reliable.
(2)Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
(3)Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
(4)Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
(5)Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation extremely easy to use. Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.

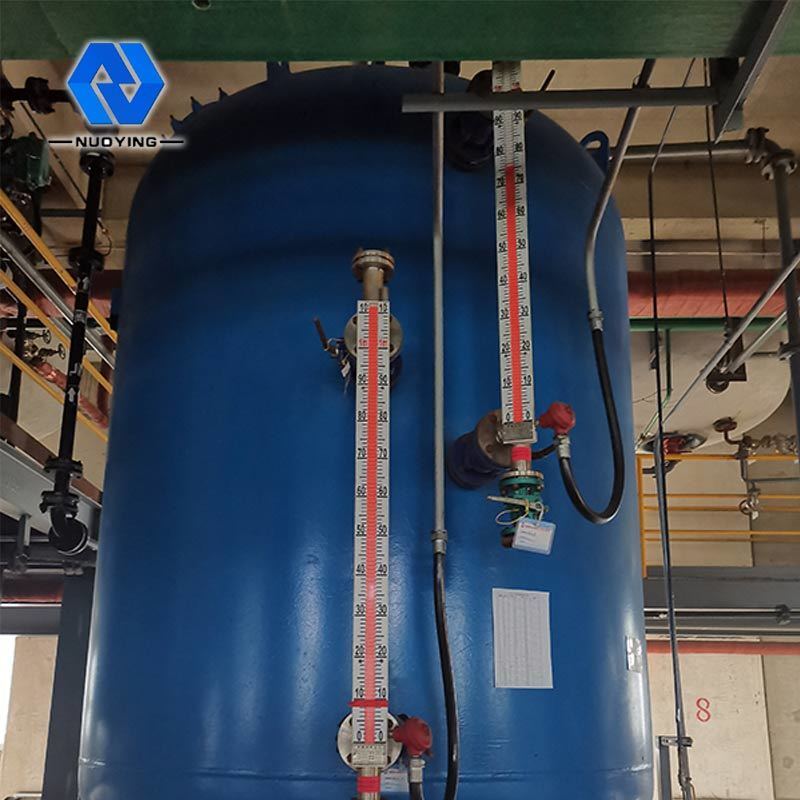

Applications Water level sensor Magnetic Float level gauge



Manufactory Water level sensor Magnetic Float level gauge

Manufactory Water level sensor Magnetic Float level gauge Manufactory Water level sensor Magnetic Float level gauge



Selection Guide Water level sensor Magnetic Float level gauge



Manufactory Water level sensor Magnetic Float level gauge

When ordering, please provide the following parameters:

Measuring length
Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection



Related products



Manufactory Water level sensor Magnetic Float level gauge Manufactory Water level sensor Magnetic Float level gauge Manufactory Water level sensor Magnetic Float level gauge



Ultrasonic level meter Ultrasonic level meter Radar level meter





FAQ



Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.




Remarks: Products can be customized according to your specific requirements!
