SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

Name: SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NP-93420-IB
Price: 1,075.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NP-93420-IB
MOQ:	1 pcs
Price:	$450 to $1700 /pcs
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/ pre month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi，China

Certification:

CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb

Application:

Liquid/Gas/Steam

Product No.:

NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III

Gauge Pressure:

0~5KPa~3.5MPa/0~0.1KPa~2MPa

Sealing Pressure:

0~7KPa~100MPa

Absolute Pressure:

0~20KPa~35MPa

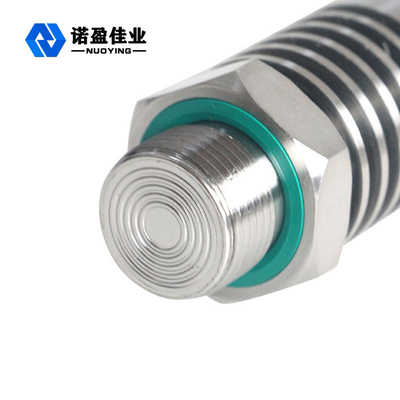

Diaphragm Material:

316L(Optional)

Accuracy:

0.1/ 0.2 Grade

Power Supply:

24VDC

Output:

4... 20mA/HART/RS485/Modbus...

Display:

LCD(Optional)

Packaging Details:

Carton, 60cm×30cm×30cm

Supply Ability:

1000 pcs/ pre month

Highlight:

24VDC Water Digital Pressure Sensor

Stainless Steel Digital Pressure Sensor Transmitter

SS316L Liquid Pressure Transmitter

Product Description

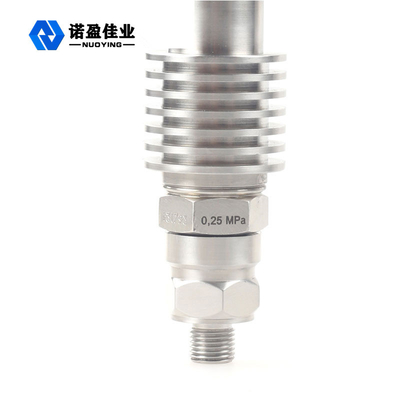

High TemperatureType Thread 93420 Pressure Sensor Transmitter

93420 Pressure Transmitter Design Feature

◎Diffusion silicon pressure transmitter is used in dangerous and explosive fields. The product has the characteristics of low current, low voltage and low power consumption. It is an intrinsically safe explosion-proof product and is equipped with an explosion-proof certificate.

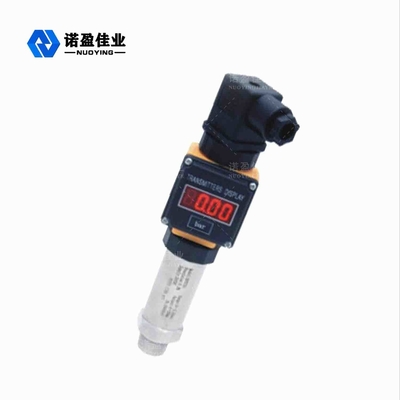

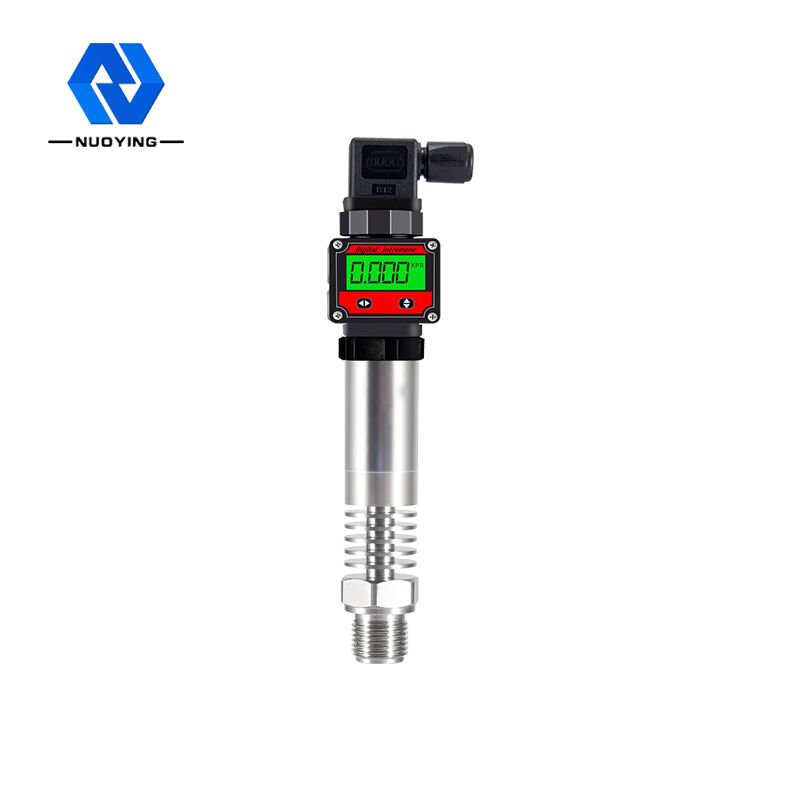

◎LED, LCD, pointer, three kinds of indicator heads, on-site reading is very convenient. They can be used to measure viscous, crystalline and corrosive media.

◎Aluminum alloy die-casting shell, three-terminal isolation, electrostatic spray protection layer, sturdy and durable.

◎4-20mA DC two-wire signal transmission, strong anti-interference ability and long transmission distance.

93420 Pressure Transmitter Working Principle

The NP93420 series is made of the piezoresistive effect of semiconductors and micromachining technology, on the specific crystal direction of the single crystal silicon wafer, using photolithography, diffusion and other semiconductor processes to make a Wheatstone bridge to form a sensitive diaphragm, when subjected to external force, a slight change occurs, the resistivity changes, and the bridge arm resistance changes (one pair becomes larger and the other becomes smaller) in the excitation voltage signal output, through computer temperature compensation, laser resistance adjustment, signal amplification and other processing methods and strict assembly testing , calibration and other processes to produce a pressure transmitter with a standard output signal.
