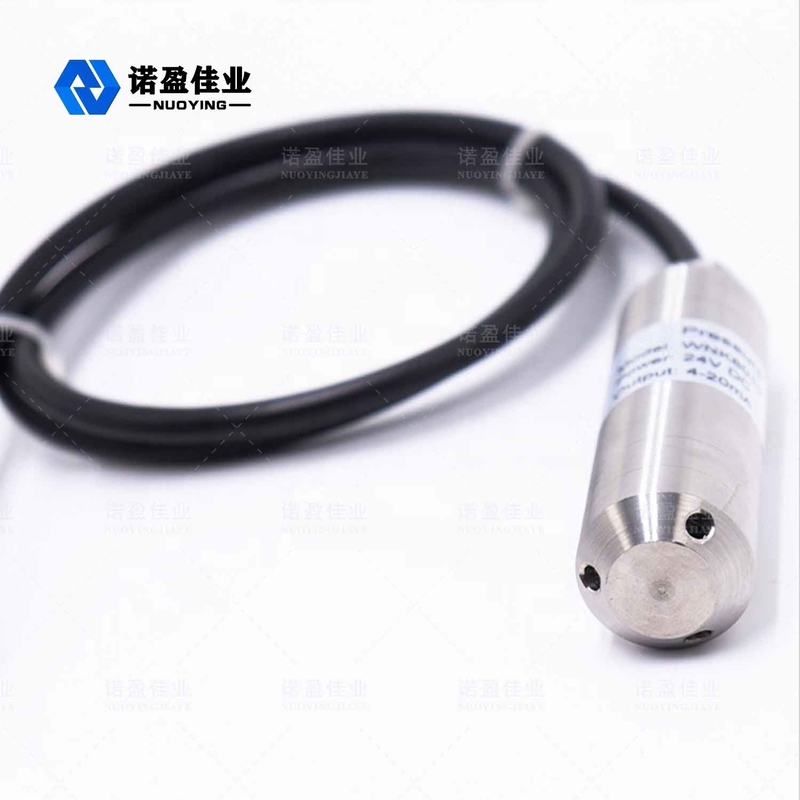

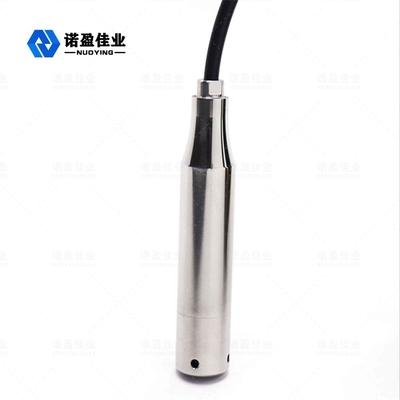

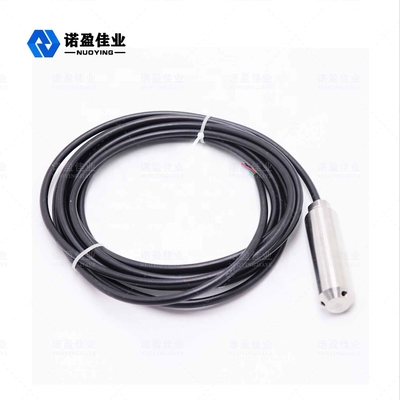

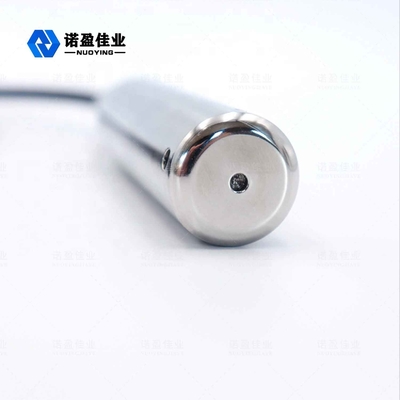

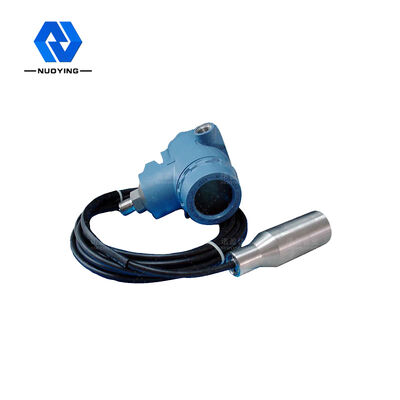

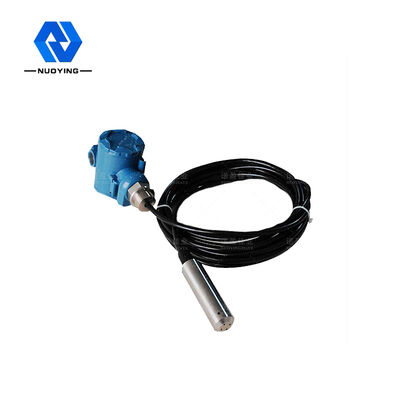

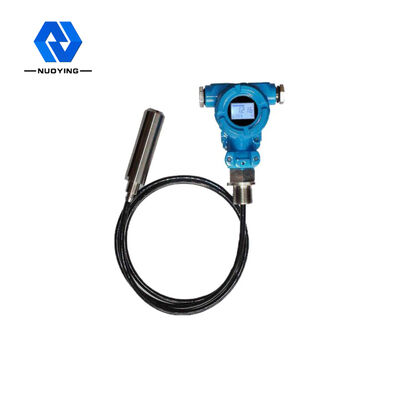

0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well

0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well
0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well 0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well 0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well 0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well

Large Image :  0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NH93420
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $80~$250/pcs
Packaging Details: Export standard packing
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

0.5 - 4.5V Submersible Level Transmitter 4 - 20ma For Liquid Water Tank Well

Description
Signal Output: 4~20mADC/HART/RS485 Typical Applications: Liquid, Corrosive Liquid
Ambient Temperature: -40 〜85 °C Process Temperature: -10 ~+70 °C
Process Connection: Thread Flange Mounting (optional) Stability: ±0.05%FS/ Year; ±0.1 %FS/ Year
Field Display: LCD (optional) Level Of Protection: IP67
High Light:

4.5V Submersible Liquid Level Transmitter

,

20mA Submersible Level Transmitter

,

Well Submersible Level Transmitter

0.5-4.5V Submersible Liquid Level Transmitter 4-20ma For Water Tank Well





NH93420 Liquid Level Pressure Sensor Transmitter



  • NH93420 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,Water tank level measurement transmitter and control functions. Adopting diffusion silicon oil-filled sensor. Max measure range up to 200 meters or more.
  • With the reliable amplified circuit and precision temperature compensation,Measuring liquid level in tank, rivers, lake, sea, well, tube, underground water and so on. to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.High Stability, provide 0.1, 0.2, 0.5 accuracy for option.
  • This product comes with compact profile, easy to install, Fuel(diesel, gasoline, kerosene and so on) tank level measurement and monitor.it can measure the level height directly when through into the liquor. Factory direct price.



NH93420 Liquid Level Transmitter Technical Parameter



Typical applications Liquid or corrosive liquid etc.
Measurement range
Type Cable type Hard rod type .Cable . anticorrosive Rod-type anticorrosive
L (m) 0~170m 0~4m 0~170m 0~4m
Signal output: 4~20mADC/HART
Ambient temperature -40 °C〜85 °C
Process temperature -10 °C ~+70 °C
Process connection thread flange (optional)
Power supply 24VDC
Load capacity < (U-15) / 0.02A
Diaphragm material

316L (optional)

Case material aluminum(optional)
Stability ±0.05%FS/ year
Field display LCD (optional)
Level of protection IP67
Blast class Exia II CT5(optional)



Note: Products can be customized according to the specific requirements of users!

NH93420 Liquid Level Transmitter Applications

  • Water tank level measurement transmitter and control functions.
  • Fuel(diesel, gasoline, kerosene and so on) tank level measurement and monitor.
  • Measuring liquid level in tank, rivers, lake, sea, well, tube, underground water and so on.
  • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement .
