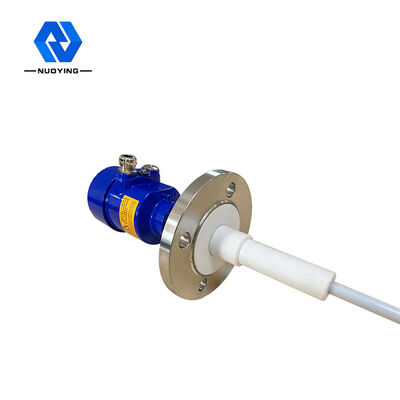

Magnetic Float Level Transmitter Top-mounted Corrosion-resistant Water Treatment

Name: Magnetic Float Level Transmitter Top-mounted Corrosion-resistant Water Treatment
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYUHZ-FQ
Price: 500.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYUHZ-FQ
MOQ:	1pcs
Price:	400-600
Payment Terms:	T/T
Supply Ability:	500pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi,China

Certification:

Typical Application:

Liquid

Product Model:

NYUHZ-FQ

Installation Method:

Top-Mounted

Measuring Range:

0-50~5000mm (cable Type: 25m)50-5000mm

Measurement Accuracy:

+0.5mm

Process Temperature:

- 40~+120 ℃

Process Pressure:

-0.1~1.6MPa,-0.1~2.5MPa

Connection:

Thread, Flange, Bracket (optional)

Packaging Details:

Carton, 90cm×30cm×30cm (reference)

Supply Ability:

500pcs per month

Highlight:

Isolated Magnetic Level Transmitter

Floating Ball Magnetic Level Transmitter

Industrial Magnetic Float Type Level Gauge

Product Description

Magnetic Float Level Transmitter Top-mounted Corrosion-resistant Water Treatment

Working Principle of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance

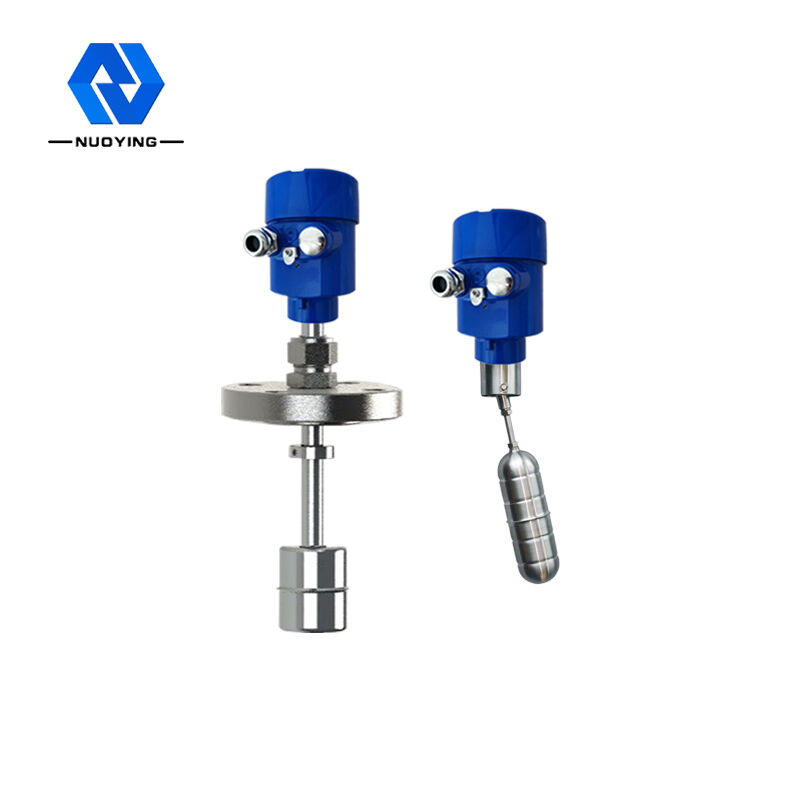

NYUHZ-FQ series maglev level meter is designed based on the principle of buoyancy and magnetic force. Magnetic float ball liquid level meter is installed in a closed non-magnetically conductive tube with one or more reed tubes, and then the tube through one or more hollow and internal annular magnet floating ball, annular magnetic float with liquid rise or fall will drive the float ball up and down together, so that the non-magnetically conductive pipe reed tube suction or disconnect action. Output resistance signal corresponding to the liquid level and converted into 4-20mA standard signal output, can also send contact on (off) conversion signal.

Design feature of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance

◎ customized design, multi-point control, wide application range

◎ stable and reliable performance, strong lightning protection and interference resistance

◎ Multiple probe forms, suitable for various complex working conditions

◎ different floating ball materials can be selected according to different medium density

Technical parameters of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance

Typical application	Liquid level measurement, etc
product model	NYUHZ-FQ
Float material	F4,PP,304,PTFE(selectable)
Probe rod length	200~6000mm(can be customized)
ambient temperature	-40~80℃
Process Temperature	-40~+130℃
Process Pressure	-0.1~2.0Mpa
Process connection	bracket,flange(selectable)
Medium viscosity	≤0.05Pa.S
Medium density	0.5~2.0g/cm³
levels of protection	IP65,IP67,IP68(selectable)
Explosion-proof grade	Exd II CT6 Gb(See certificate for details)

※Note:The product can be customized according to the specific requirements of users.
