Product Details:
|
| Typical Application: | Liquid, Gas, Steam | Power Supply: | 24VDC |
|---|---|---|---|
| Accuracy: | ≤ 0.075%, 0.1%F.S | Working Temperature: | -30 To 85°C Optional |
| Output Signal: | Two Wire 4~20mADC, 4~20mADC With HART | Power Impact: | <0.005%/v |
| Process Connection: | Flange (optional) | Protection Level: | IP65(optional) |
| High Light: | 24VDC Differential Pressure Transmitter,Steam Differential Pressure Sensor Transmitter |
||

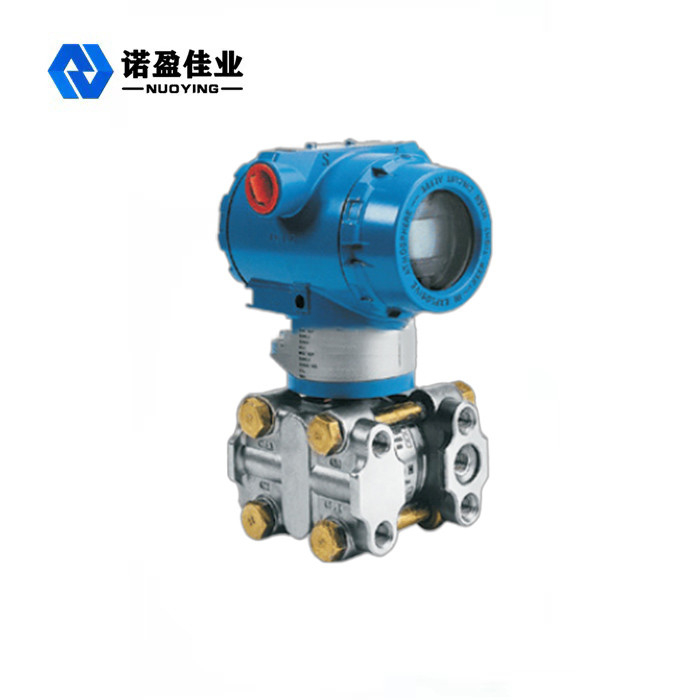

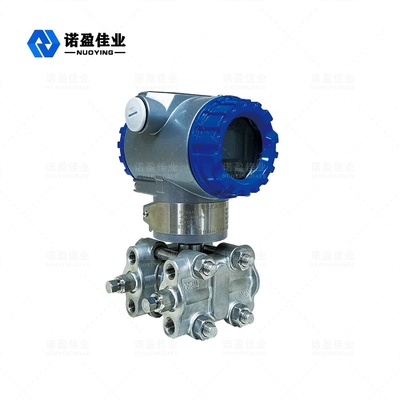

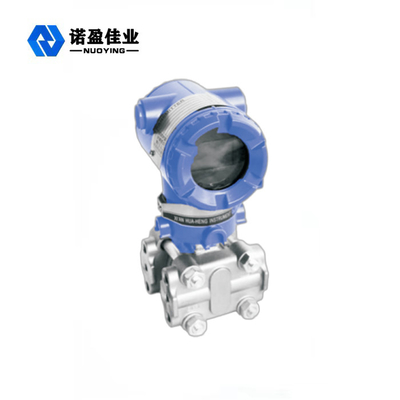

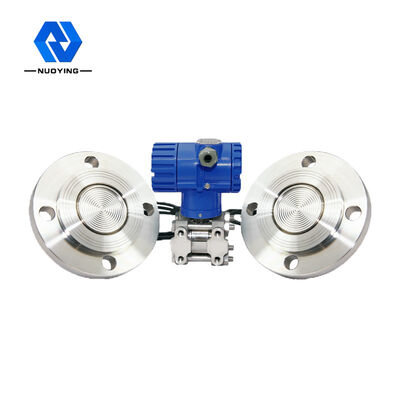

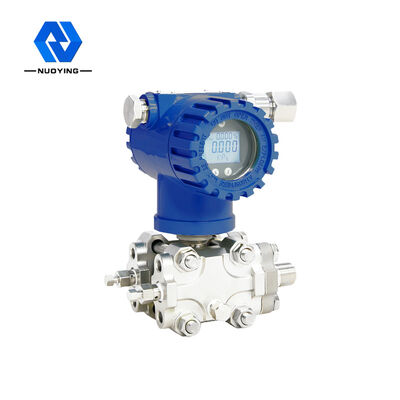

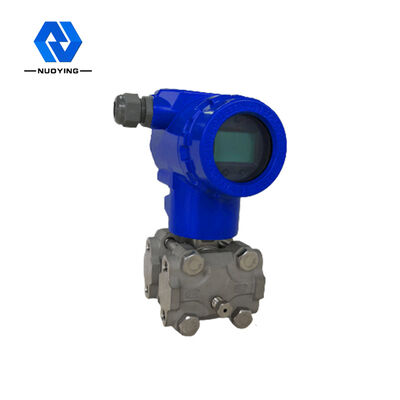

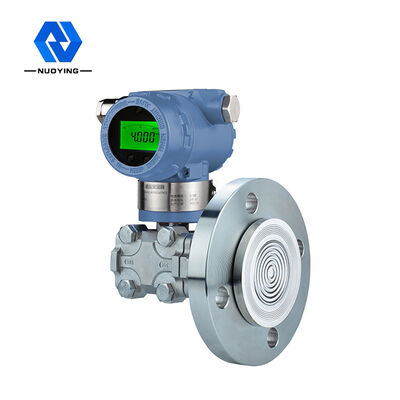

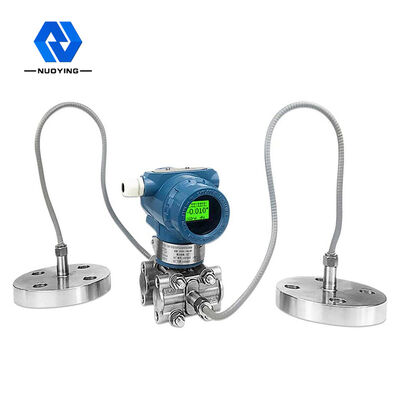

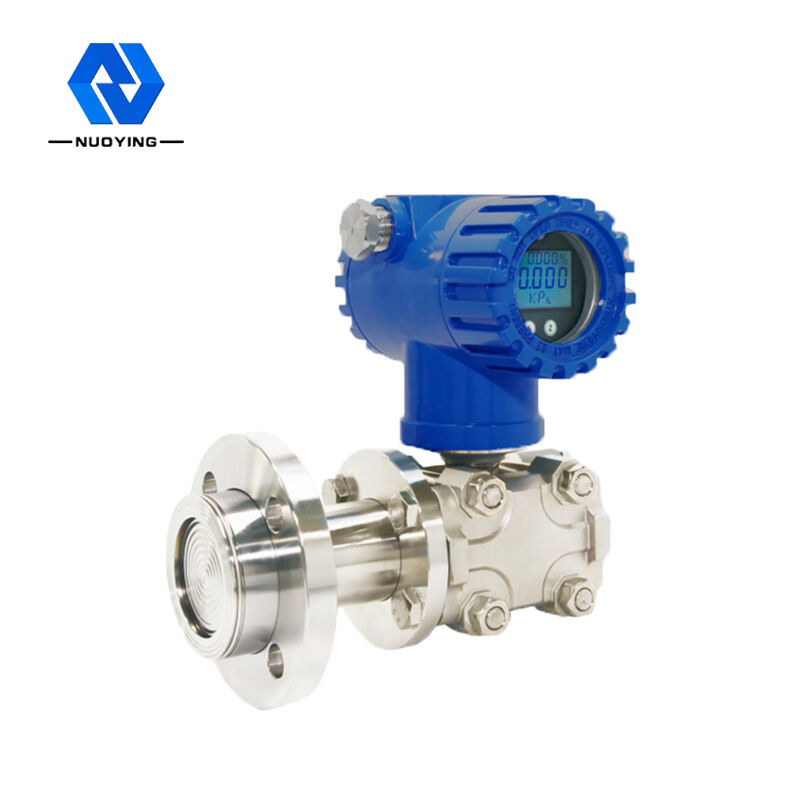

24VDC NY3051-1 Differential Pressure Transmitter For Liquid Gas And Steam
NY3051-1 Differential Pressure Transmitter Working Principle
NY3051 is suitable to measure liquid,gas,or steam flow as well as liquid level, density and pressure. NY3051 outputs a 4~20 mA DC signal corresponding to the measured differential pressure.Its highly accurate and stable sensor can also measure the static pressure which can be shown on integral indicator or remotely monitored via HART communications. Key features include quick response, remote set-up using communications,self-diagnostics and optional status output for pressure high/low alarm.
NY3051-1 Differential Pressure Transmitter Technical Parameters
| Typical application | liquid, gas, steam |
| Measurement Range | upper limit URL(0.006-40) |
| Power supply | 24VDC(±30%) |
| Environment temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃ can be customized) |
| Power impact | <0.005%/v |
| Filling fluid | Silicone oil, inert oil (optional) |
| Vibration effects | <±1% of maximum range (10～60Hz, S=0.07mm; 60～150Hz, g=9.8m/s2, in any direction) |
| Accuracy Level | 0.1 grade,0.2 grade |
| Process connection | flange (optional) |
| Protection level | IP65(optional) |
| Explosion-proof grade | Exia II CT6,Exd II BT5(optional) |
NY3051-1 Differential Pressure Transmitter Design Feature
1. High precision and good stability.
2. With continuous self-diagnosis, linear compensation and digital fine-tuning function.
3. Local adjustment of zero position and range can be realized, and remote adjustment can also be realized by remote hand controller or computer.
4. Linear or square root output can be selected according to different applications.
5. Despite the thunder and lightning, still working steadily.
6. Used in the requirements of strong corrosiveness to the chemical site and harsh environment.
7. Beautiful appearance, showing the beauty of fashion technology.
8. Inner thick and sturdy, meet the most demanding environment.
