Product Details:
|
| Typical Application: | Liquid, Gas, Steam | Power Supply: | 24VDC |
|---|---|---|---|
| Process Temperature: | -25~+125℃ | Filling Fluid: | Silicone Oil, Inert Oil (optional) |
| Accuracy Level: | 0.1 Grade、0.2 Grade | Output Signal: | 15-36V DC,24V DC |
| Insulation Resistance: | >100M Ω @50V | Indicator: | LCD Display |
| High Light: | Thread Intelligent Pressure Transmitter,Intelligent Pressure Transmitter 20mA,LCD Display Pressure Sensor Transmitter |
||

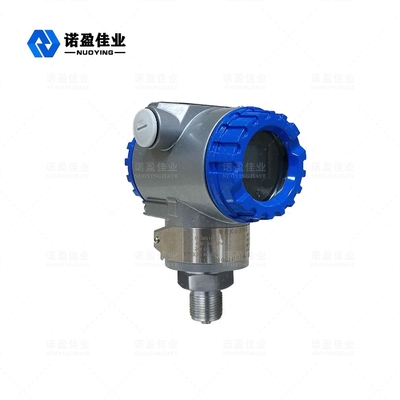

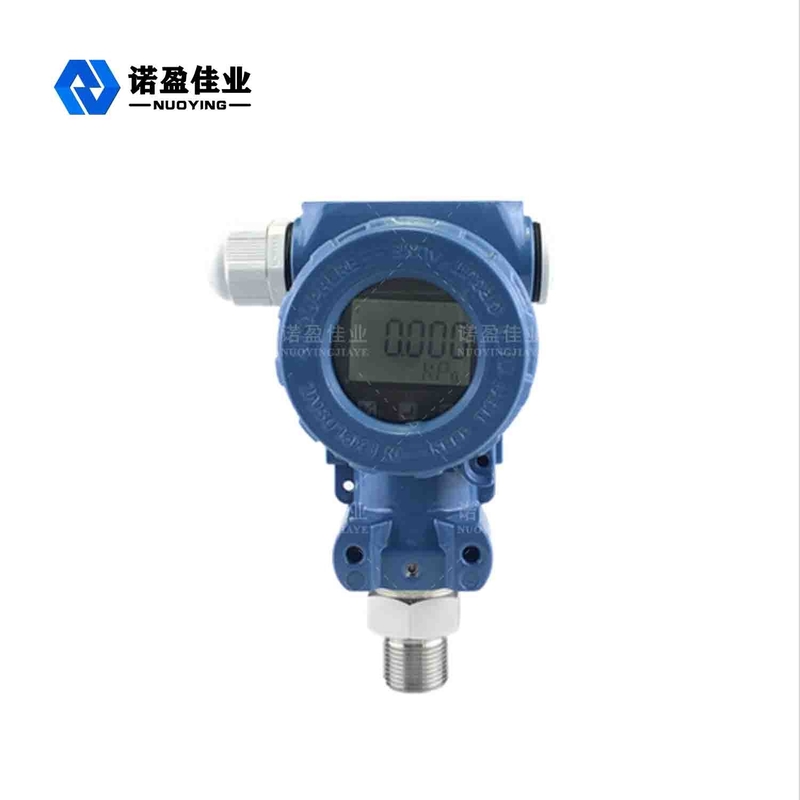

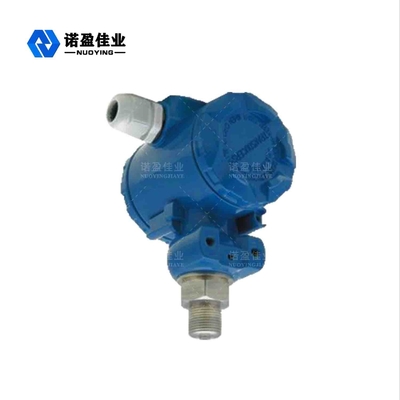

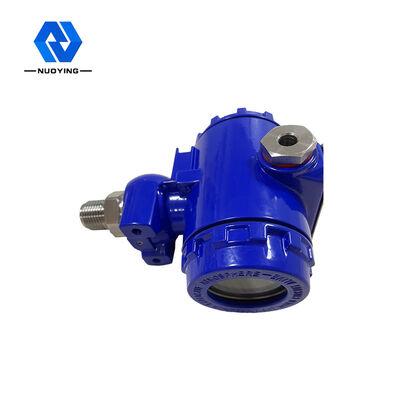

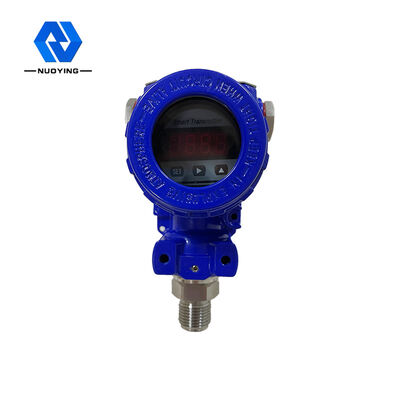

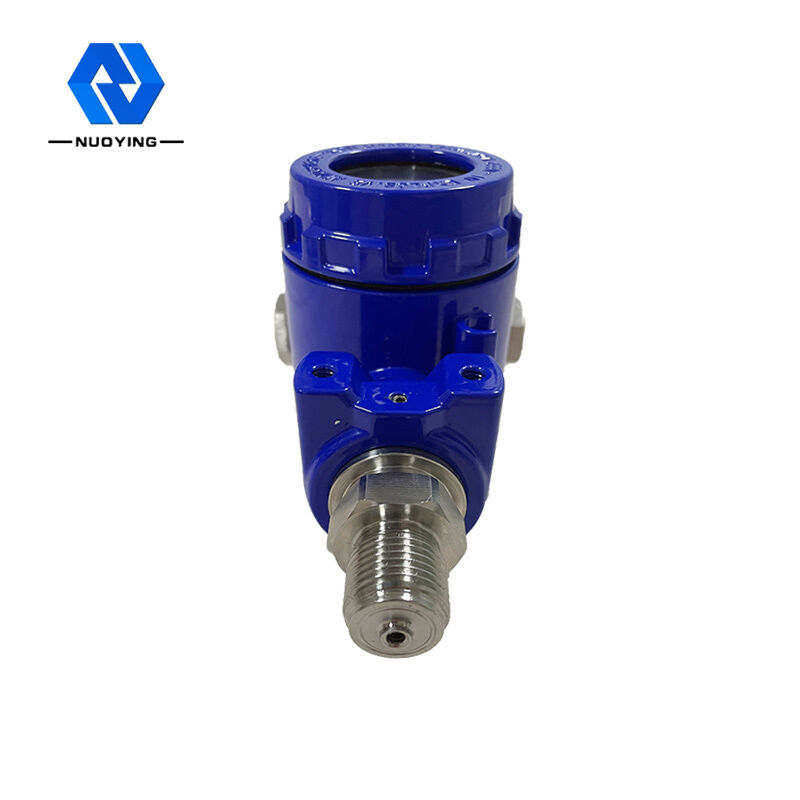

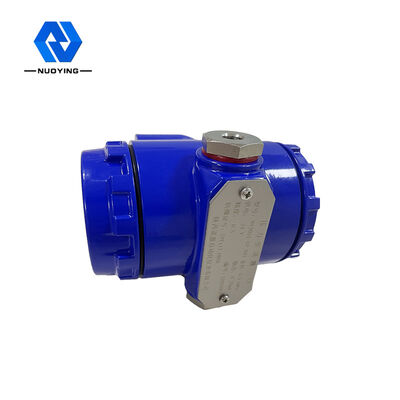

Hot Sale 20mA NY3051-2 Intellient Presssure Transmitter Connected With Thread
NY3051-2 Intellient Presssure Transmitter Working Principle
The intelligent pressure transmitter has explosion-proof large-size shell, optional pressure sensor cores with different measurment principles and intelligent circuit boards with different funtions for conversion output, can better adapt to the pressure measurement of complex industrial sites and automated process control links. More comprehensive funtiond and wider application range.
NY3051-2 Intellient Presssure Transmitter Technical Parameters
| Typical application | liquid, gas, steam |
| Measurement Range | upper limit URL(0.006-40) |
| Power supply | 24VDC(±30%) |
| Environment temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃ can be customized) |
| Power impact | <0.005%/v |
| Filling fluid | Silicone oil, inert oil (optional) |
| Vibration effects | <±1% of maximum range (10～60Hz, S=0.07mm; 60～150Hz, g=9.8m/s2, in any direction) |
| Accuracy Level | 0.1 grade,0.2 grade |
| Process connection | flange (optional) |
| Protection level | IP65(optional) |
| Explosion-proof grade | Exia II CT6,Exd II BT5(optional) |
NY3051-2 Intellient Presssure Transmitter Design Feature
1. The powerful 24-bit CPU realizes high-precision and fast response LCD display.
2. The low temperature can reach -30 ℃.
3. Key operation can rewrite the range on site.
4. Powerful personal protection, transmitter security guard.
5. Damping time can be set to change between 0.1~16s.
6. Pressure value unit conversion between KPa, Pa, InH20 bar, etc. can be realized.
7. Failure and safety modes can be set by toggling the failure/safety switch.
8. With single point, multi-point and burst mode.
9. With power failure protection function, it can save its working data automatically when power failure.
10. Solid components, plug-in printed circuit board Small, light weight, strong and shock-resistant.
