Product Details:
|
| Typical Application: | Liquid And Pressure For Open Storage Tank | Power Supply: | 24VDC |
|---|---|---|---|
| Environment Temperature: | -40~+85℃ | Filling Fluid: | Silicone Oil, Inert Oil (optional) |
| Explosion-proof Grade: | Exia II CT6、Exd II BT5(optional) | Accuracy Level: | 0.1 Grade、0.2 Grade |
| Process Connection: | Flange | Protection Level: | IP65(optional) |
| High Light: | Single Flange Pressure Transmitter,Liquid Level Pressure Transmitter 24VDC |
||

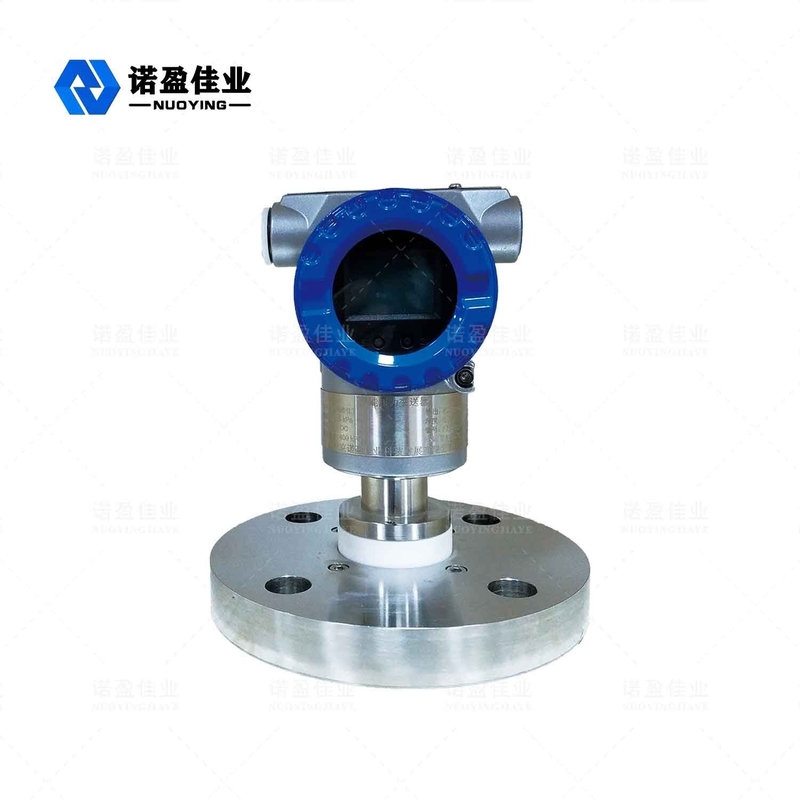

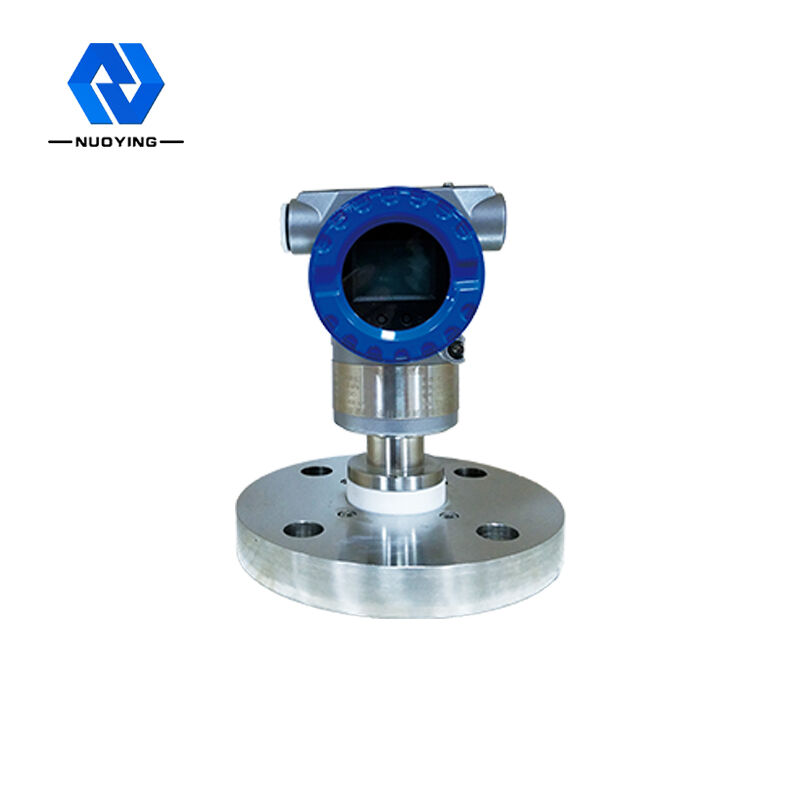

Discounted NY3051-3 Single Flange Pressure Transmitter For Liquid Level Measurement
NY3051-3 Single Flange Pressure Transmitter Working Principle
NP3051 series intelligent differential pressure/pressure transmitter is an intelligent field instrument conforming to HART protocol. Using the original imported diaphragm in the design of the micro external processor and HART communication circuit, you can store any support HART communication protocol of the upper computer software or HART communication protocol in line with the 268, 275 and other hand-operated device for two-way communication, and with a 5-digit intelligent digital LCD display, you can display the differential pressure / pressure value, the output current value and output percentage value, debugging is very convenient, to achieve the Transmitter digital and intelligent functions, and compatible with the traditional 4 ~ 20mA analog output signal, so as not to change the control system to achieve and analog meter interchangeable.
NY3051-3 Single Flange Pressure Transmitter Design Feature
1. The powerful 24-bit CPU realizes high-precision and fast response LCD display.
2. The low temperature can reach -30 ℃.
3. Key operation can rewrite the range on site.
4. Powerful personal protection, transmitter security guard.
5. Despite the thunder and lightning, still working steadily.
6. Used in the requirements of strong corrosiveness to the chemical site and harsh environment.
7. Beautiful appearance, showing the beauty of fashion technology.
8. Inner thick and sturdy, meet the most demanding environment.
NY3051-3 Single Flange Pressure Transmitter Technical Parameters
| Typical application | liquid, gas, steam |
| Measurement Range | upper limit URL(0.006-40) |
| Power supply | 24VDC(±30%) |
| Environment temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃ can be customized) |
| Power impact | <0.005%/v |
| Filling fluid | Silicone oil, inert oil (optional) |
| Vibration effects | <±1% of maximum range (10～60Hz, S=0.07mm; 60～150Hz, g=9.8m/s2, in any direction) |
| Accuracy Level | 0.1 grade,0.2 grade |
| Process connection | flange (optional) |
| Protection level | IP65(optional) |
| Explosion-proof grade | Exia II CT6,Exd II BT5(optional) |
