Product Details:
|
| Typical Application: | Liquid, Gas, Steam | Power Supply: | (12-36)VDC |
|---|---|---|---|
| Environment Temperature: | -40~+85℃ | Signal Output: | 4...20mADC/HART/RS485. |
| Damping Time: | 0.1～16s Adjustable | Long-term Stability: | ≤±0.2%F.S/year |
| Process Connection: | Flange | Explosion-proof Grade: | Exia II CT6、Exd II BT5(optional) |
| High Light: | Directly Cable Waterproof Pressure Sensor Transmitter,Thread Pressure Sensor Transmitter 24VDC,Steam Intelligent Pressure Transmitter |
||

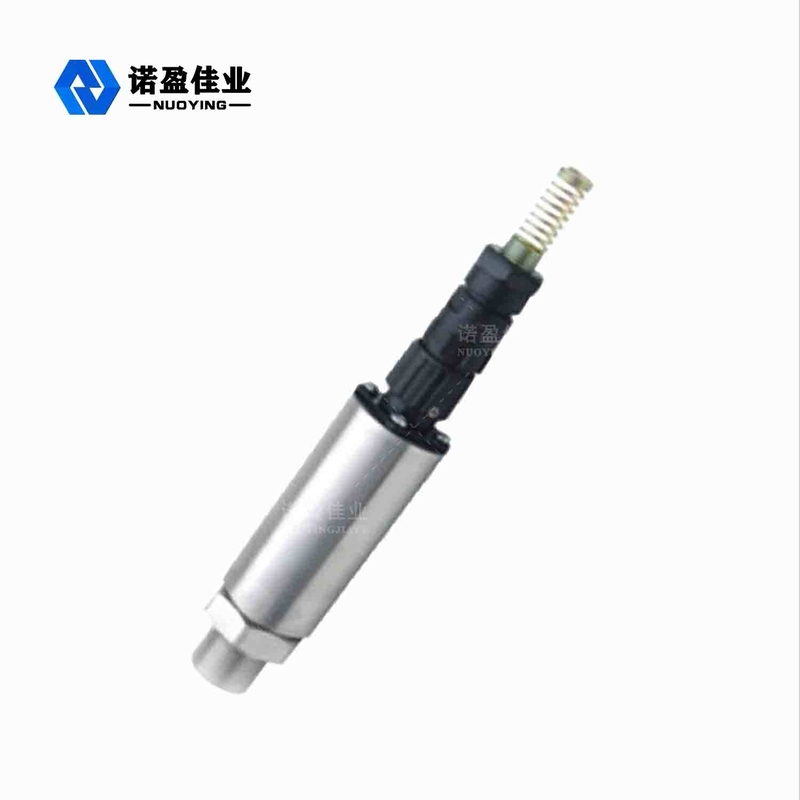

Water-Proof 24VDC NP-93420-IF Pressure Sensor Transmitter Connected With Thread
NP-93420-IF Pressure Sensor Transmitter Working Principle

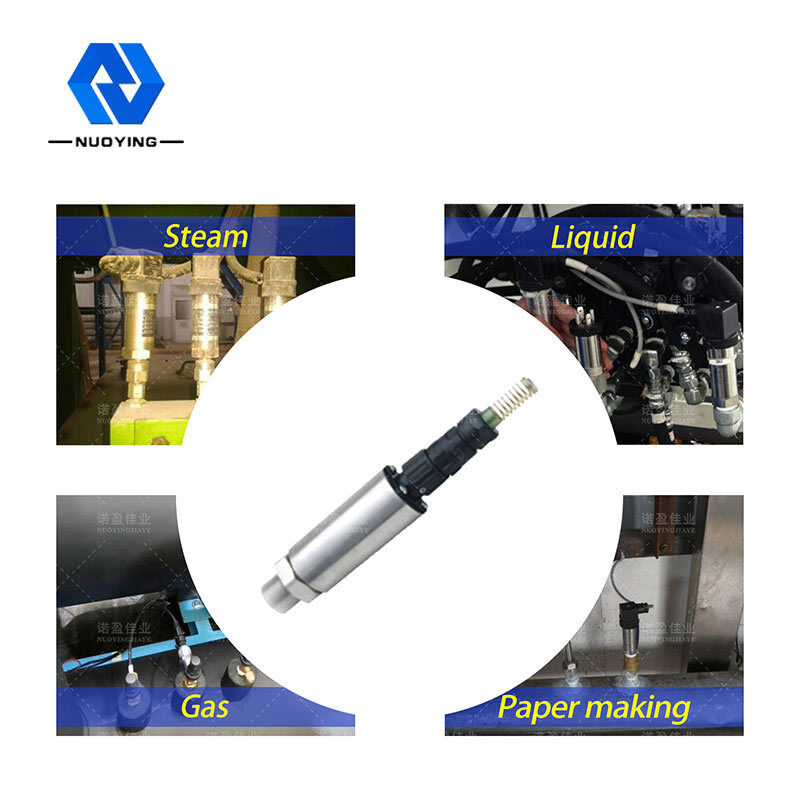

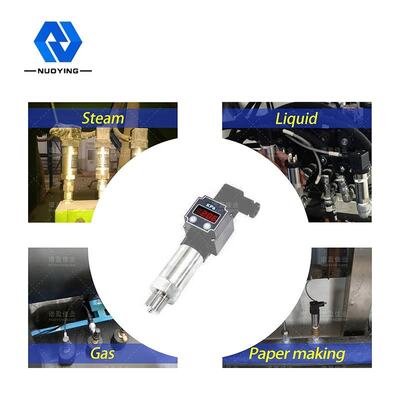

NP93420 has introduced the new robust, small size and programmable pressure sensors of NP93420 series, suitable for domestic drinking water system, air-conditioning, machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

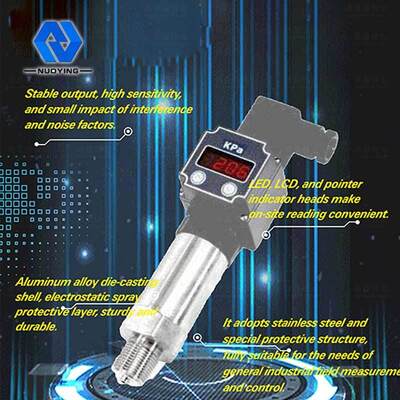

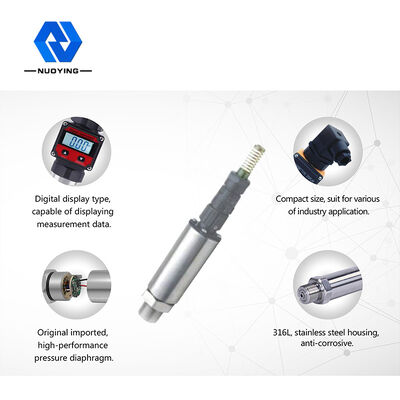

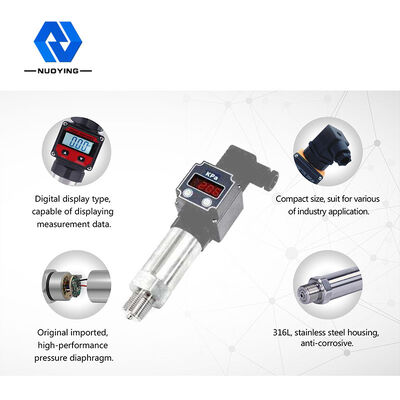

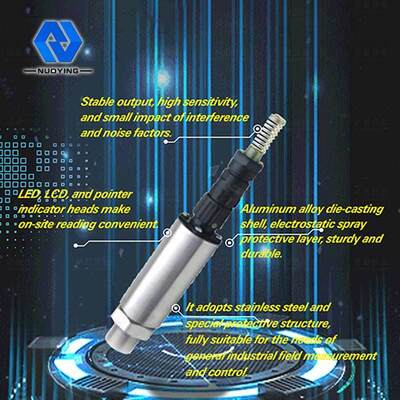

NP-93420-IF Pressure Sensor Transmitter Design Feature
1. Stable output, high sensitivity, relatively small impact of interference and noise and other factors, the corresponding cost of the amplifier circuit is reduced, and the resolution is greatly improved.
2. Special V / I integrated circuit, few peripheral devices, high reliability, simple and easy maintenance, small size, light weight, extremely easy to install and debug.
3. Aluminum alloy die-casting shell, three-terminal isolation, electrostatic spraying protection layer, sturdy and durable.
NP-93420-IF Pressure Sensor Transmitter Technical Parameters
| Typical application | liquid, gas, steam |
| Measurement Range | upper limit URL |
| Power supply | (12-36)VDC(±30%) |
| Environment temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃ can be customized) |
| Signal Output | 4...20mADC/HART/RS485. |
| Damping time | 0.1～16s adjustable |
| Allowable overload | Less than or equal to twice the rated range |
| Long-term stability | ≤±0.2%F.S/year |
| Accuracy Level | 0.1 grade,0.2 grade |
| Housing material | Aluminum, stainless steel (optional) |
| Process connection | Flange, thread (optional) |
| Protection level | IP65(optional) |
| Explosion-proof grade | Exia II CT6,Exd II BT5(optional) |
