Product Details:
|
| Typical Application: | Liquid, Gas, Steam | Power Supply: | (12-36)VDC(±30%) |
|---|---|---|---|
| Environment Temperature: | -40~+85℃ | Process Temperature: | -25~+125℃(>+125℃ Can Be Customized) |
| Signal Output: | 4...20mADC/HART/RS485. | Damping Time: | 0.1～16s Adjustable |
| Explosion-proof Grade: | Exia II CT6、Exd II BT5(optional) | Protection Level: | IP65(optional) |

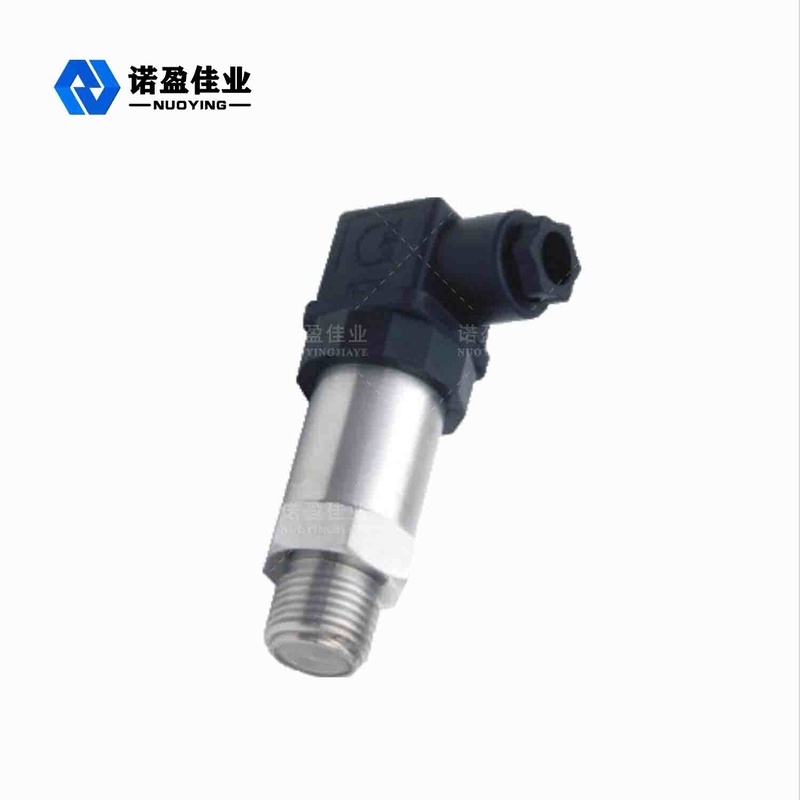

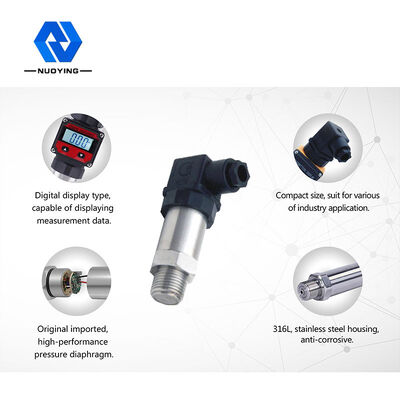

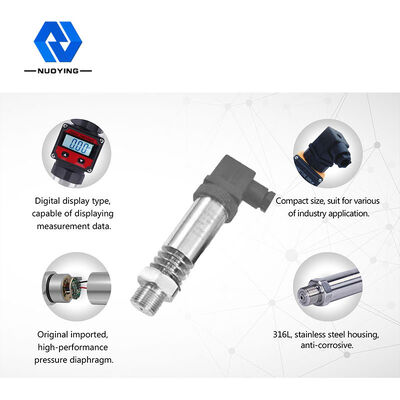

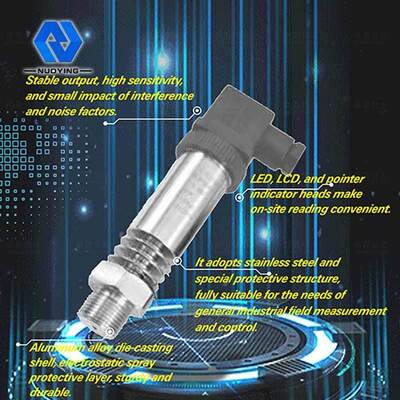

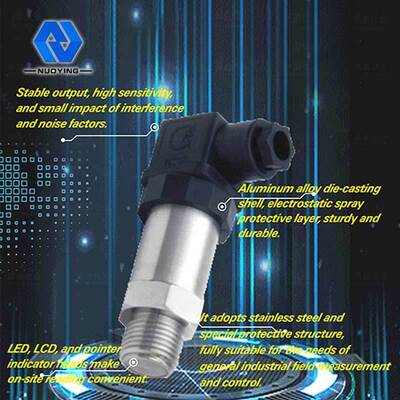

Standard Type 316L IP67 NP-93420-IB Pressure Sensor Transmitter Connected With Thread
NP-93420-IB Pressure Sensor Transmitter Working Principle
NP93420 has introduced the new robust, small size and programmable pressure sensors of NP93420 series, suitable for domestic drinking water system, air-conditioning, machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.
NP-93420-IB Pressure Sensor Transmitter Technical Parameters
| Typical application | liquid, gas, steam |
| Measurement Range | upper limit URL |
| Power supply | (12-36)VDC(±30%) |
| Environment temperature | -40~+85℃ |
| Process temperature | -25~+125℃(>+125℃ can be customized) |
| Signal Output | 4...20mADC/HART/RS485. |
| Damping time | 0.1～16s adjustable |
| Allowable overload | Less than or equal to twice the rated range |
| Long-term stability | ≤±0.2%F.S/year |
| Accuracy Level | 0.1 grade,0.2 grade |
| Housing material | Aluminum, stainless steel (optional) |
| Process connection | Flange, thread (optional) |
| Protection level | IP65(optional) |
| Explosion-proof grade | Exia II CT6,Exd II BT5(optional) |

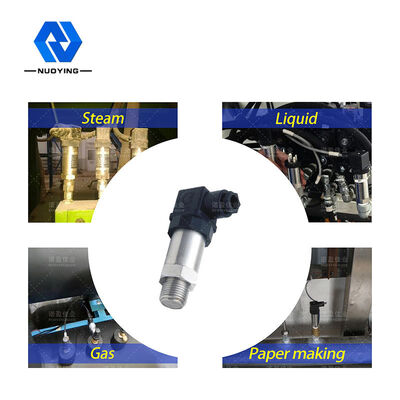

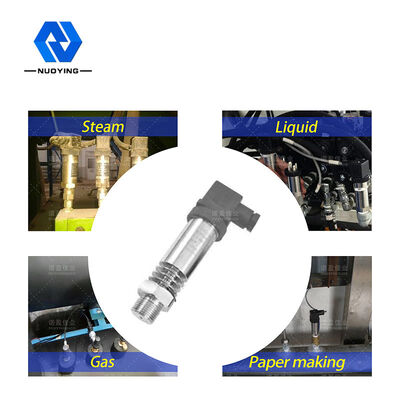

NP-93420-IB Pressure Sensor Transmitter Application Field
1.Petroleum/petrochemical/chemical: with throttling device to provide accurate flow measurement and control. It can measure pressure and level of pipeline and storage tank.
2.Electricity / city gas / other companies and businesses: for measurement requiring high stability and accuracy.
3.Pulp and paper: For applications requiring chemical and corrosive resistant liquids.
4.Steel/nonferrous metals/ceramics: For furnace pressure measurement, etc., where high stability and high accuracy are required.
5.Machinery/Shipbuilding: Used in places requiring stable measurement under strict control (temperature, humidity, etc.) of high precision.
