Product Details:
|
Application: | Liquid | Product No.: | NH-93420 |
---|---|---|---|
Measuring Range: | 0~200m | Diaphragm Material: | 316L/Ceramics (optional) |
Precision Grade: | ±0.25%F.S/±0.5%F.S/±1.0%F.S | Power Supply: | 24VDC |
Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
Process Connection: | Screw Thread, Flange And Bracket Mounting (optional) | Load Capacity: | <(U-15)/0.02A |
Stable Performance: | ±0.5%F.S/Year ±1.0%F.S/Year | Shell Material: | Aluminum, Stainless Steel (optional) |
Protection Grade: | IP68 | Explosion-proof Grade: | ExiaⅡCT6 Ga ,ExdⅡCT6 Gb |
High Light: | RS485 High Temperature Level Sensor Transmitter,Hot Water Heater Level Sensor Transmitter,10V Pressure Sensor Transmitter |
NH-93420 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields. When measuring medium such as sewage and silt, filter structure can be added according to customer's requirements.
Model | NH-93420 |
Power supply | 5VDC,12-36VDC(standard) |
Output single | 4~20mA,1~5V,0~10V,RS485 |
Measuring range | 0.5... 500 metre |
Compensation temperature | -10~70ºC |
Medium temperature | -40~300ºC |
Environment temperature | -40~85ºC |
Measuring media | Water,Oil,Weak acid and base |
Accuracy | 0.1%F.S,0.25%F.S(standard) |
Zero tempe drift | ±0.03%F.S/ºC |
Sensitivity temperature drift | ±0.03%F.S/ºC |
material | 316L core& cable |
Overload | 200%F.S |
Long-term stability | ≤0.2%F.S/year |
Inherent frequency | 5kHz~650kHz |
Protection grade | IP68 |

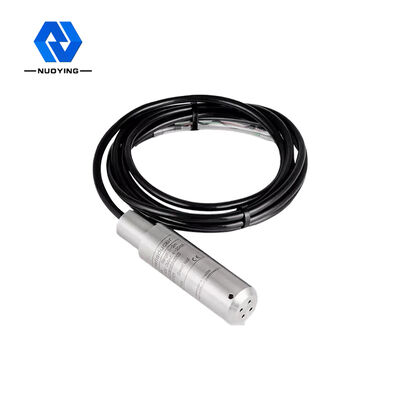

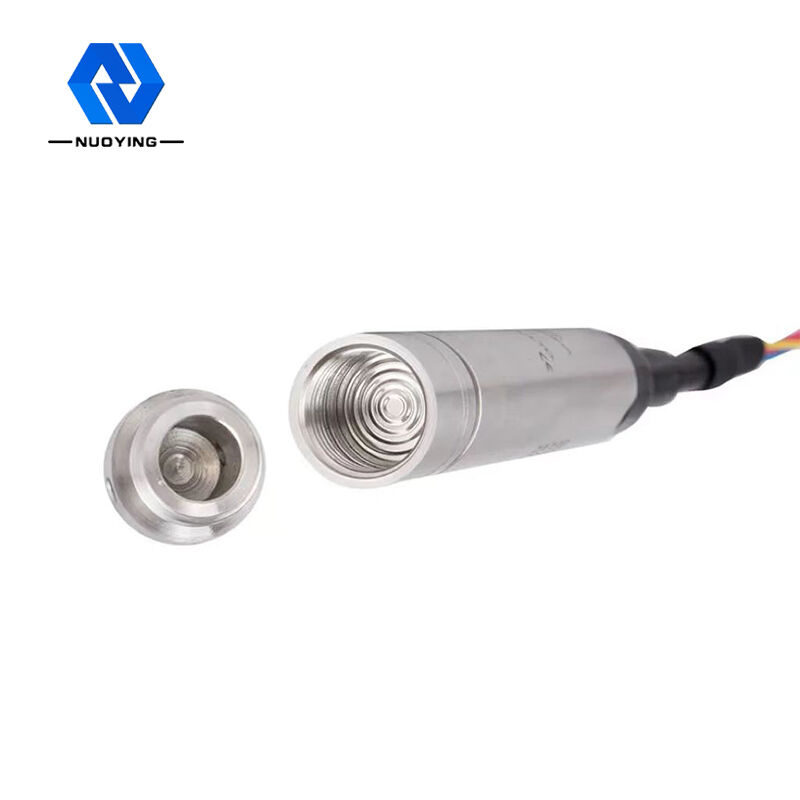

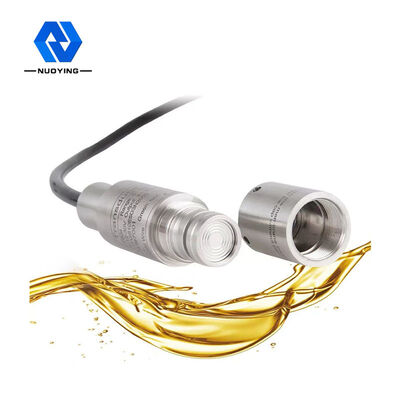

Product Showcase
