Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor
Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor

Large Image :  Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Model Number: NH-93420
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor

Description
Application: Liquid Product No.: NH-93420
Measuring Range: 0~200m Diaphragm Material: 316L/Ceramics (optional)
Precision Grade: ±0.25%F.S/±0.5%F.S/±1.0%F.S Power Supply: 24VDC
Output: 4... 20mA/HART/RS485/Modbus... Display: LCD(Optional)
Process Connection: Screw Thread, Flange And Bracket Mounting (optional) Load Capacity: <(U-15)/0.02A
Stable Performance: ±0.5%F.S/Year ±1.0%F.S/Year Shell Material: Aluminum, Stainless Steel (optional)
Protection Grade: IP68 Explosion-proof Grade: ExiaⅡCT6 Ga ,ExdⅡCT6 Gb

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor


Product Description

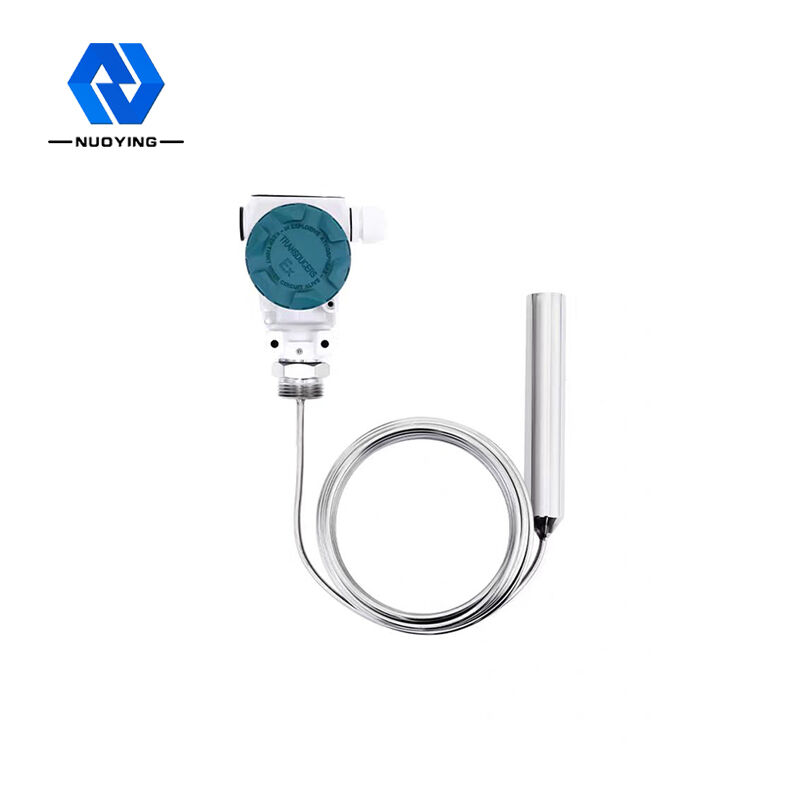

NH-93420 high temperature liquid level transmitter consists of stainless steel gas collector, stainless steel capillary and junction box. The sensor and signal processing circuit are designed in the junction box, and the gas collecting cylinder is put into the measured liquid, which is responsible for collecting pressure signals. The gas in the gas collector transmits the collected liquid level pressure signal to the sensor through stainless steel capillary, thus avoiding the direct contact between the sensor and the measured medium, adapting tohigh temperature corrosion and other occasions, effectively solving the problem of high temperature corrosive liquid and sewage level measurement.

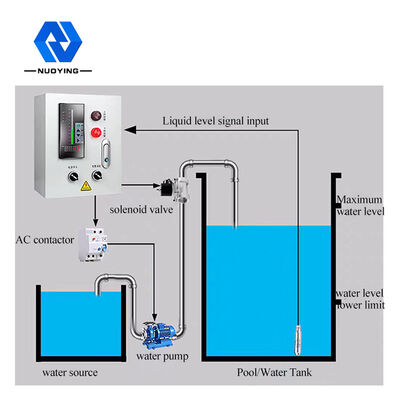

NH-93420 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields. When measuring medium such as sewage and silt, filter structure can be added according to customer's requirements.


Technical Parameters
Technical Parameters
Comprehensive accuracy ± 0.5% F.S (0.25% FS or 0.1% FS customized)
Response time 5ms (up to 90% FS)
Measurement medium Well water, fire water tank, river water, tap water, etc.
Medium temperature -20~60ºC
Warranty 24 months
Overload capacity 200%FS
Power supply 9~30VDC(typical 24VDC),5VDC
Output signal 4~20MA,1~5V,0~5V,0~10V,RS485,switching value, etc.
Housing material Cast aluminum junction box, 304 stainless steel probe, rubber wire
Process connection G1 male
Electrical interface Tight wire waterproof nut and five-core air conducting cable
air conducting cable IP65


Product Showcase



Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 0



Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 1

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 2

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 3

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 4


Stainless Steel Liquid/Fuel/Water Capacitive Level Transmitter/Capacitance Level Sensor




Stainless Steel Liquid/Fuel/Water Capacitive Level Transmitter/Capacitance Level Sensor

Analog Water Tank Liquid Level Transmitter Hydrostatic Level Indicator Sensor 7
