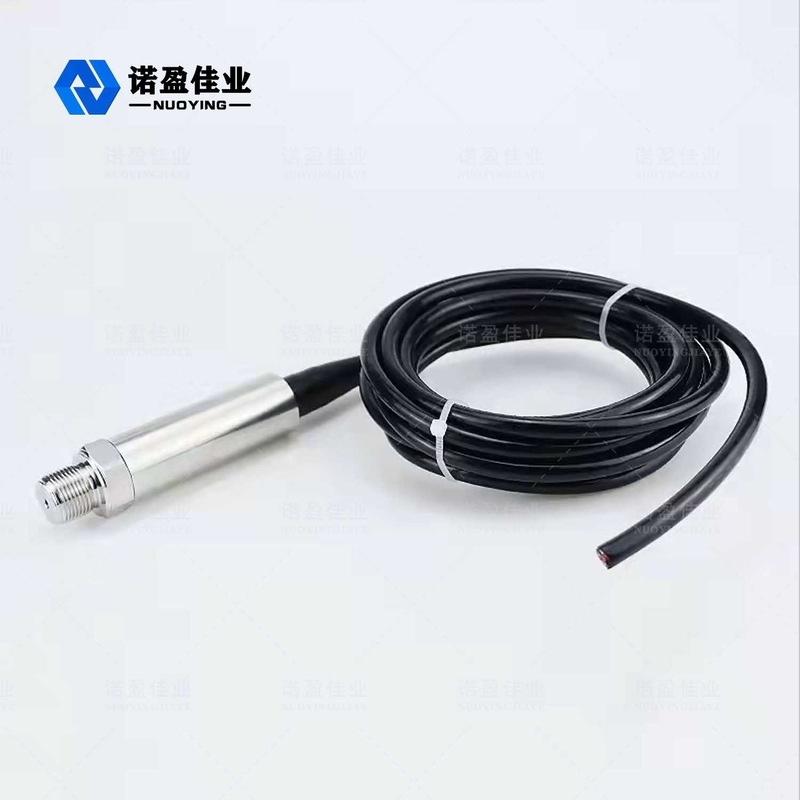

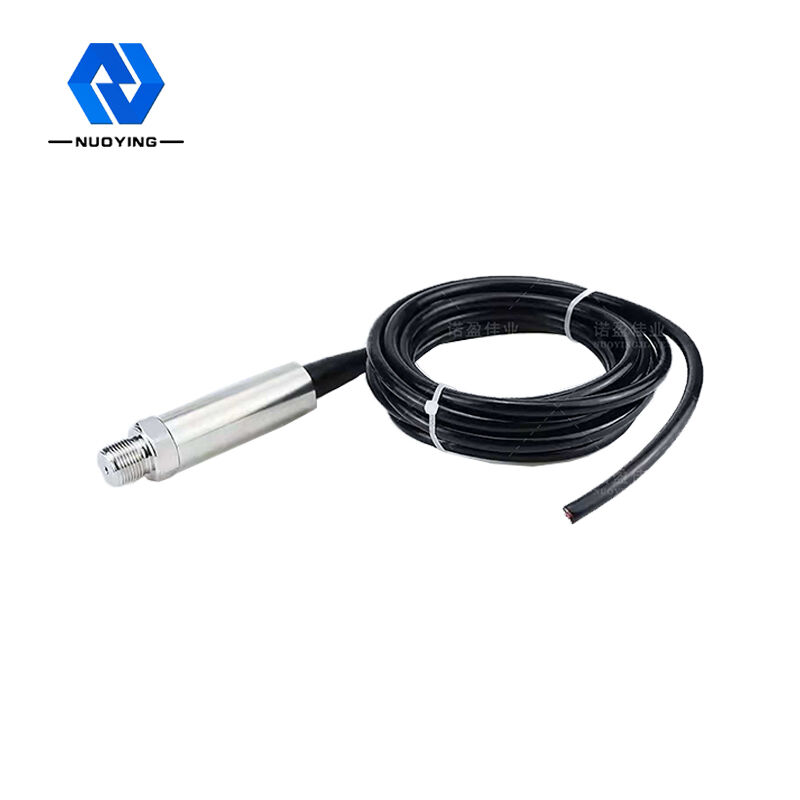

4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring

4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring
4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring 4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring

Large Image :  4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Model Number: NH-93420
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring

Description
Application: Liquid Product No.: NH-93420
Measuring Range: 0~200m Diaphragm Material: 316L/Ceramics (optional)
Precision Grade: ±0.25%F.S/±0.5%F.S/±1.0%F.S Power Supply: 24VDC
Output: 4... 20mA/HART/RS485/Modbus... Display: LCD(Optional)
Process Connection: Screw Thread, Flange And Bracket Mounting (optional) Load Capacity: <(U-15)/0.02A
Stable Performance: ±0.5%F.S/Year ±1.0%F.S/Year Shell Material: Aluminum, Stainless Steel (optional)
Protection Grade: IP68 Explosion-proof Grade: ExiaⅡCT6 Ga ,ExdⅡCT6 Gb

4-20mA Output Liquid Well Water Level Meter for Hydraulic Monitoring



Product Description

NH-93420 liquid level transmitter is based on the principle that the measured static pressure of the liquid level is proportional to the height of the liquid. It uses the diffusive silicon piezoresistive effect to convert the pressure into an electrical signal. After temperature compensation and linear calibration, it is converted into a standard Current, voltage, RS485 and other signal outputs can be directly connected to PLC / DSC, display instruments, computers, etc. Has good stability and reliability. The OEM oil-filled core is enclosed in a stainless steel housing. The front-end protective cap plays a role in protecting the diaphragm of the sensor, and can also make the liquid smoothly contact the diaphragm. The waterproof wire is hermetically connected to the shell, and the vent pipe is connected to the outside in the cable. Anti-condensation design of internal structure. HDL300 has a built-in micro signal processing circuit for remote transmission. HDL300 is widely used for liquid level measurement and control in the fields of environmental protection, water conservancy, variable frequency water supply, industrial process control, and chemical industry.



Technical Parameters
Comprehensive accuracy ±0.5%F.S(0.25%FS or 0.1%FS customized)
Response time 5ms (up to 90% FS)
Medium temperature Well water, fire water tank, river water, tap water, etc.
Medium temperature -20~+60ºC
Warranty period 12 months
Overload capacity 200%FS
Power supply 9~30VDC(typical 24VDC)
Output signal 4 ~ 20MA, 1 ~ 5V, 0 ~ 5V, 0 ~ 10V, RS485, switching value, etc.
Housing material 304 stainless steel probe, rubber wire
Process connection Drop-in type, into the test liquid
Electrical Interface Tight-line waterproof nut and five-core air-conducting cable
Sealing class IP68
30m Hydrostatic Level Transmitter 4-20mA Electrode Water Level Sensor Probe

30m Hydrostatic Level Transmitter 4-20mA Electrode Water Level Sensor Probe
30m Hydrostatic Level Transmitter 4-20mA Electrode Water Level Sensor Probe
30m Hydrostatic Level Transmitter 4-20mA Electrode Water Level Sensor Probe

30m Hydrostatic Level Transmitter 4-20mA Electrode Water Level Sensor Probe





Packaging&Transport


Stainless Steel Liquid/Fuel/Water Capacitive Level Transmitter/Capacitance Level Sensor
