Product Details:
|
| Application: | Liquid | Product No.: | NH-93420 |
|---|---|---|---|
| Measuring Range: | 0~200m | Diaphragm Material: | 316L/Ceramics (optional) |
| Precision Grade: | ±0.25%F.S/±0.5%F.S/±1.0%F.S | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
| Process Connection: | Screw Thread, Flange And Bracket Mounting (optional) | Load Capacity: | ＜(U-15)/0.02A |
| Stable Performance: | ±0.5%F.S/Year ±1.0%F.S/Year | Shell Material: | Aluminum, Stainless Steel (optional) |
| Protection Grade: | IP68 | Explosion-proof Grade: | ExiaⅡCT6 Ga ,ExdⅡCT6 Gb |
NH-93420 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields. When measuring medium such as sewage and silt, filter structure can be added according to customer's requirements.
| Technical Parameters | |
| Comprehensive accuracy | ± 0.5% F.S (0.25% FS or 0.1% FS customized) |
| Response time | 5ms (up to 90% FS) |
| Measurement medium | Well water, fire water tank, river water, tap water, etc. |
| Medium temperature | -20~60ºC |
| Warranty | 24 months |
| Overload capacity | 200%FS |
| Power supply | 9~30VDC(typical 24VDC),5VDC |
| Output signal | 4~20MA,1~5V,0~5V,0~10V,RS485,switching value, etc. |
| Housing material | Cast aluminum junction box, 304 stainless steel probe, rubber wire |
| Process connection | G1 male |
| Electrical interface | Tight wire waterproof nut and five-core air conducting cable |
| air conducting cable | IP65 |

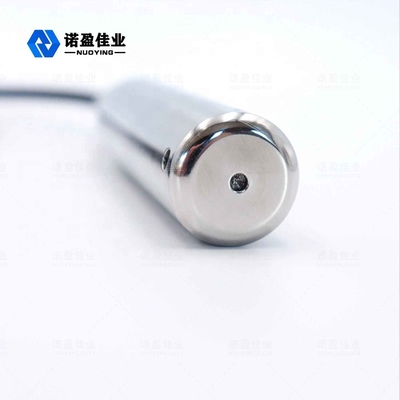

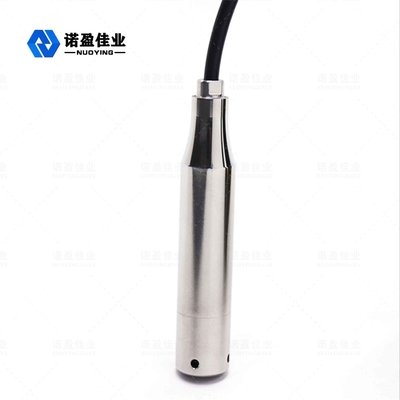

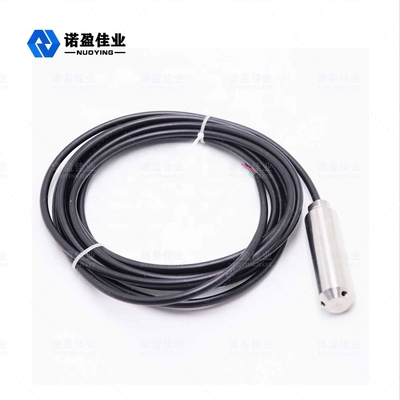

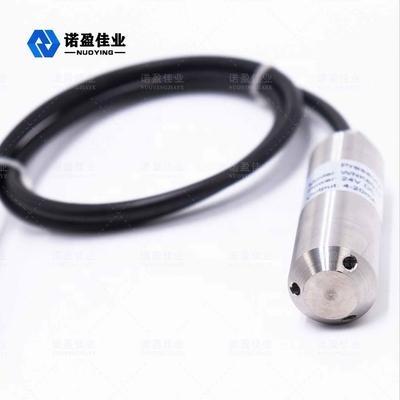

Product Showcase
Packaging&Transport

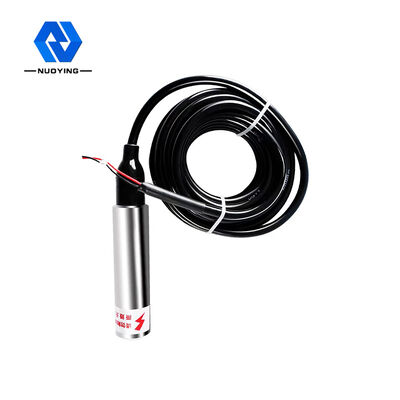

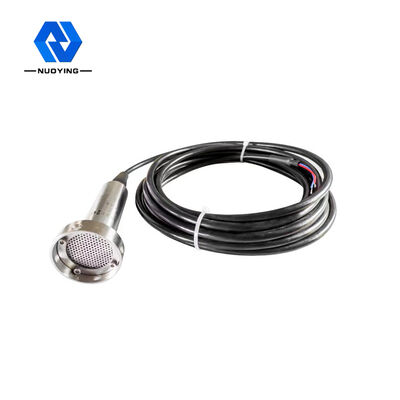

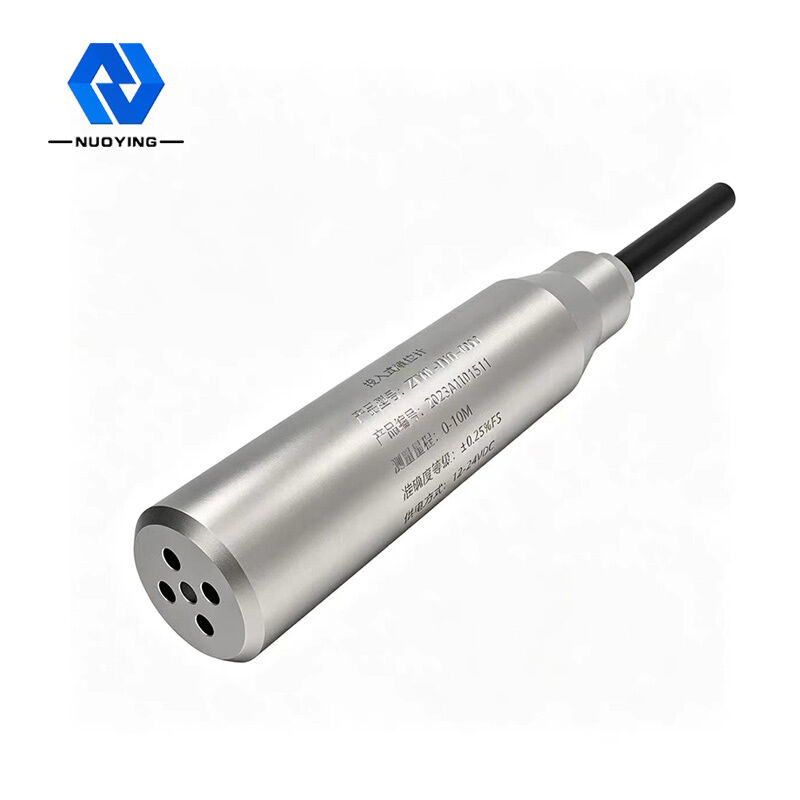

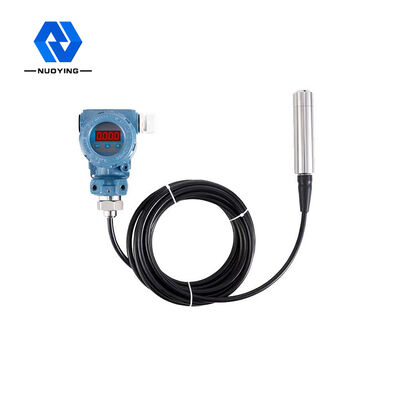

Related products
