Product Details:
|
Typical Application: | Liquid | Probe Type: | PTFE |
---|---|---|---|
Power Supply: | 24VDC | Medium Temperature: | -184~+ 260℃ |
Process Pressure: | -0.1~1.0 MPa | Procedure Linkage: | Thread |
Levels Of Protection: | IP 66 | Signal Output: | 4...20mA |
High Light: | Pressure Capacitance Level Gauge,RF Capacitance Level Gauge 20m,Corrosive Liquid Pressure Sensor Transmitter |

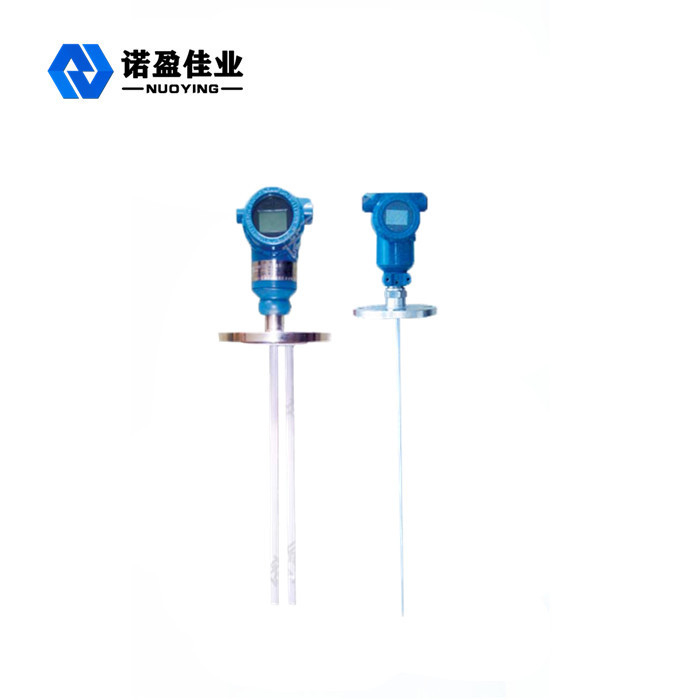

RF Capacitance Level Gauge For Corrosive Liquid With Measuring Range 20m
The working Principle of RF Capacitance Level Gauge For Corrosive Liquid With Measuring Range 20m
A radio frequency is applied to the probe and the effects of the surrounding environment are determined through continuous analysis. Because all materials have a dielectric constant and their conductivity is different from that of air, the total impedance of the probe changes due to a small capacitance offset when it comes into contact with the material. Because the energized probe and the vessel wall form the two plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when the air (dielectric constant 1.0) is replaced by any other material (dielectric constant> 1.0), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and compared to a reference reference established by the sensitivity setting (circuit).
Design features of RF Capacitance Level Gauge For Corrosive Liquid With Measuring Range 20m

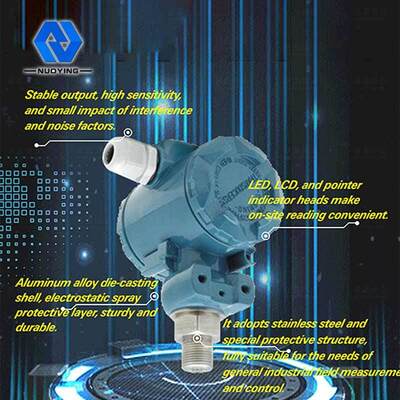

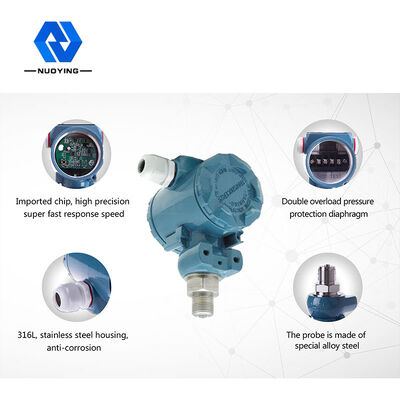

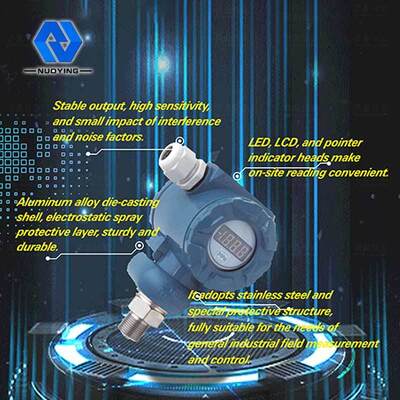

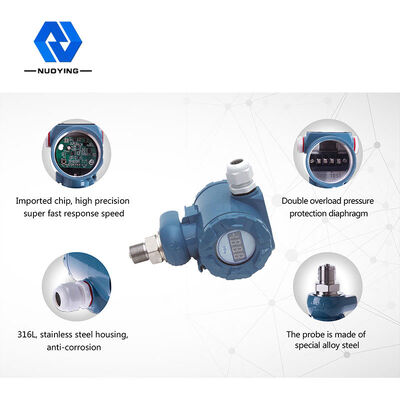

◎ the modular converter is integrated with the sensor, with no moving parts, high reliability and strong anti-interference ability
◎ more widely applicable, with multiple probe forms, multiple process connection forms, and multiple manufacturing materials, which can be customized;
◎ installation, debugging and maintenance are extremely convenient
Technical parameters of RF Capacitance Level Gauge For Corrosive Liquid With Measuring Range 20m

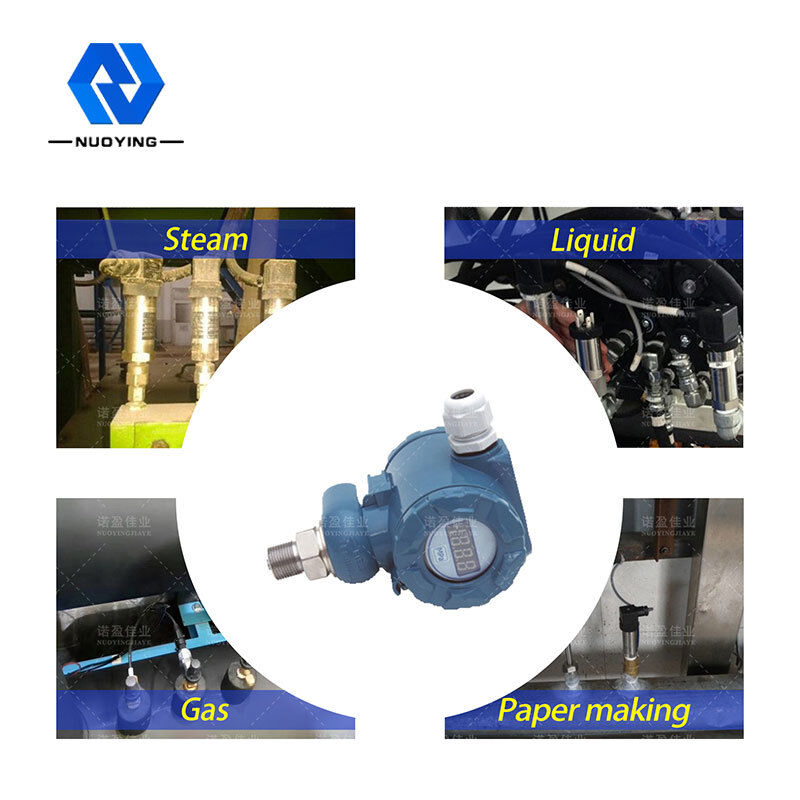

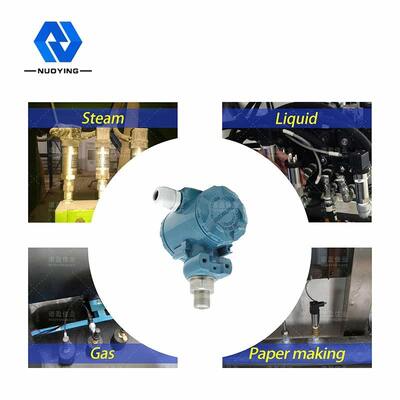

Typical application | Liquid, corrosive liquid, etc |
product model | NYDR-3051 |
Antenna Form | Cable,Rod |
Antenna Material | PTFE,304,316 |
measuring range | 6m, 20m |
Power Supply | 24VDC |
signal output | 4...20mA/HART/ RS485/Modbus... |
Process temperature | -40~+130℃,-184~+260℃ |
Circuit temperature resistance | -40~+80℃ |
Process pressure | -0.1~1.6MPa |
Process connection | screw thread,flange(selectable) |
time delay | 0-30s Continuously adjustable |
Power loss protection | High /low mode, field adjustable |
Electrical interface | M20*1.5,½ ″NPT |
levels of protection | IP65,IP67,IP68 |
Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
