Product Details:
|
| Typical Application: | Liquid | Product Models: | NYUH-Z |
|---|---|---|---|
| Installation Form: | Side Mounted Or Top Mounted | Body Material: | 304 Or 316 |
| Measuring Range: | 0~6 M | Measurement Precision: | ±3mm |
| Medium Density: | ≥0.425 G/cm3 | Density Difference: | ≥0.1 G/cm3 |
| High Light: | Flange Magnetic Flap Level Gauge,Liquid Measurement Magnetic Flap Level Gauge,6m Magnetic Float Type Level Gauge |
||

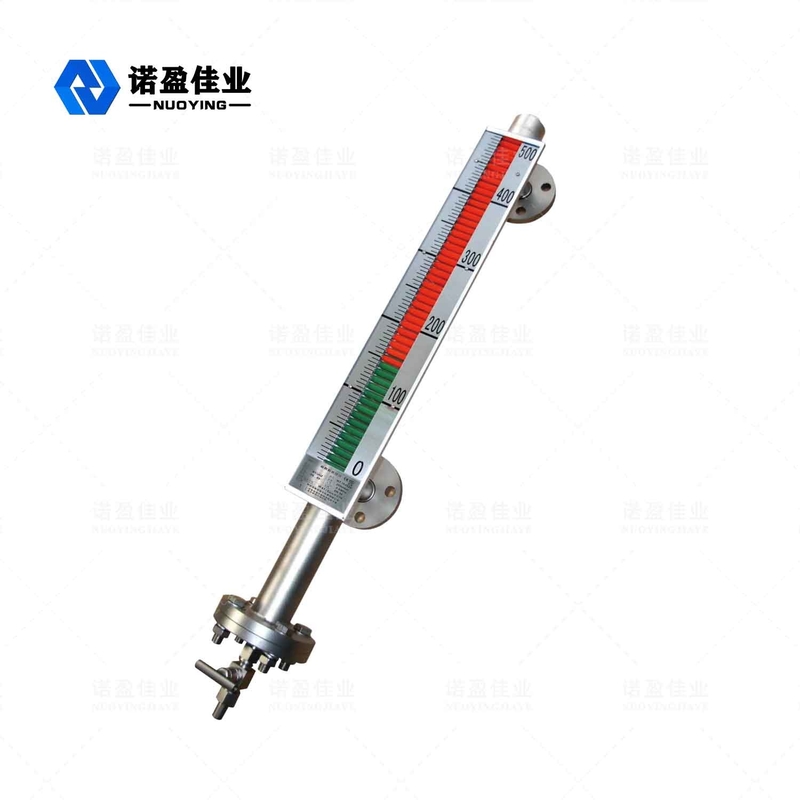

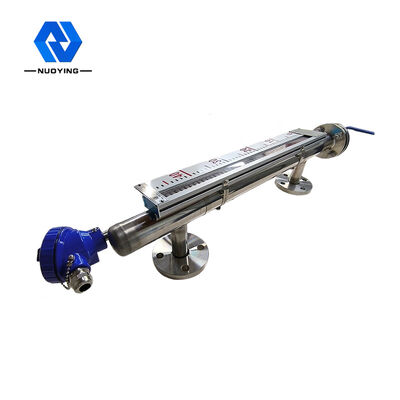

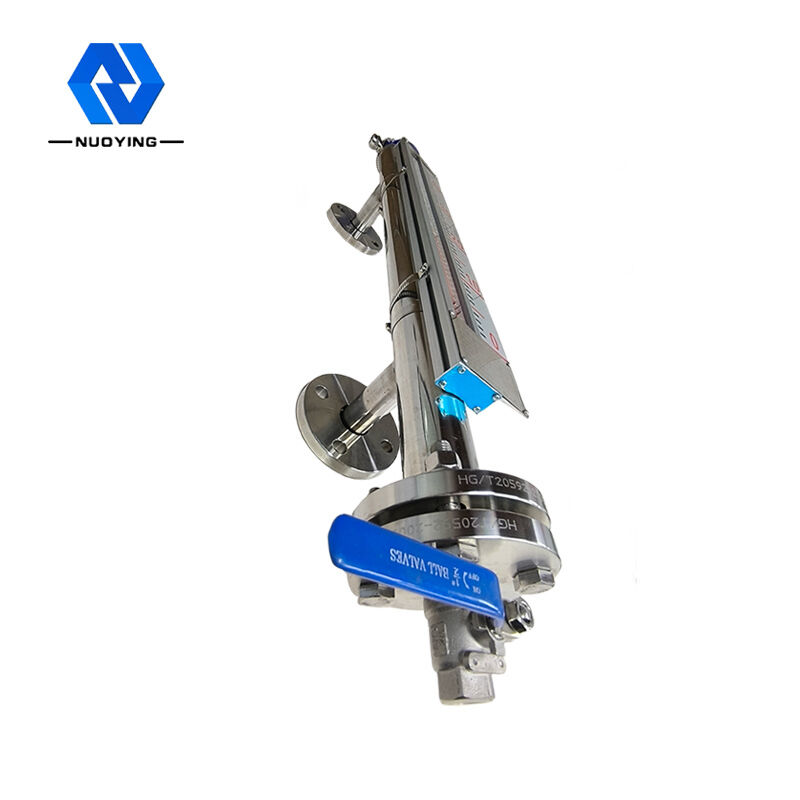

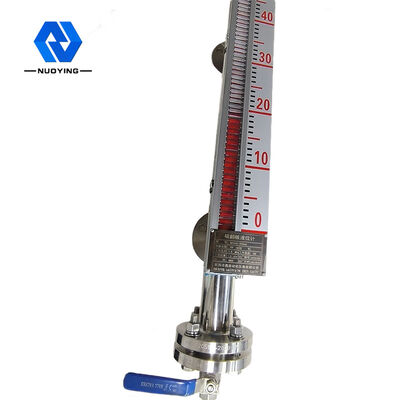

6m Flange Magnetic Flap Level Gauge For Liquid Measurement
Working Principle of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement

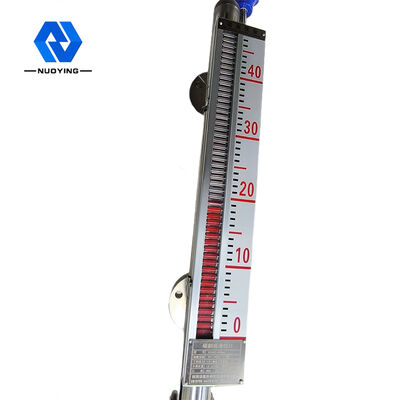

Magnetic flap level gauge is developed based on the principle of buoyancy (Archimedes' law) combined with magnetic coupling. When the liquid level in the measured container rises and falls, the float in the main pipe of the level gauge also rises and falls, and the float The permanent magnetic steel inside is transmitted to the on-site indicator (ruler) through magnetic coupling, which drives the yellow, black (or red and white) turning column to rotate. When the liquid level rises, the turning column turns from white to red. When the liquid level drops, the turning column turns from red to white. The junction of red and white of the indicator is the actual height of the medium level gauge in the container.
Design feature of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement
◎ simple structure, solid and reliable, stable operation
◎ on site display scale is clear, striking and easy to read
◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid
◎ multiple installation forms and connection forms can be selected
◎ design pressure range: full vacuum to 10MPa
◎ design temperature range: - 160 ~ + 450 ℃
◎ professional design for special pressure and temperature
Technical parameters of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement
| Typical application | Liquid level measurement |
|
product model |
NYUHZ |
| Installation form | Side mounted, top mounted |
| Body Material | 304,316 |
| measuring range | 0~6m |
| Measurement precision | ±3mm,±5mm, ±10mm, ±20mm (selectable) |
| Medium density | ≥0.425g/cm3 |
| Density difference | ≥0.1g/cm3 |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmission output | 4...20mA(power supply 24VDC) |
| Process Temperature |
-50~+350℃ |
| Process Pressure | -0.1~+16MPa |
| Process connection | flange(selectable) |
| resolution ratio | ±1mm |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
