Product Details:
|
| Typical Application: | Liquid Measuring | Product Models: | NYU HZ |
|---|---|---|---|
| Installation Form: | Side Mounted | Body Material: | 304 |
| Measuring Range: | 0~ 6 M | Measurement Precision: | ±3 Mm |
| Medium Density: | ≥0. 425 G/cm3 | Density Difference: | ≥0. 1 G/cm3 |
| High Light: | Top Mounted Magnetic Flap Level Gauge,Flap Magnetic Level Transmitter,6m Magnetic Flap Level Gauge |
||

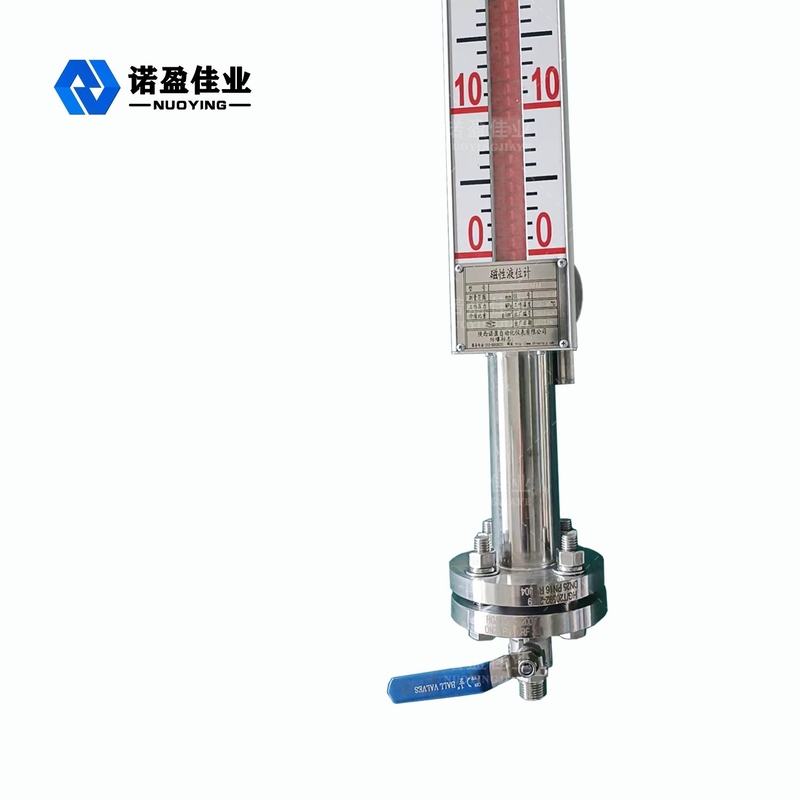

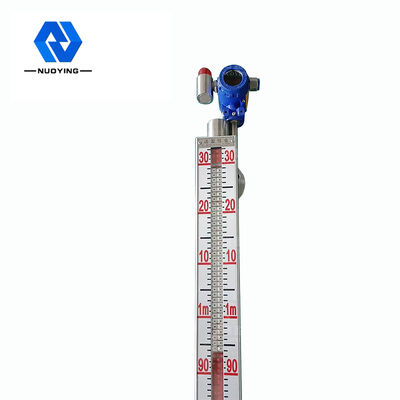

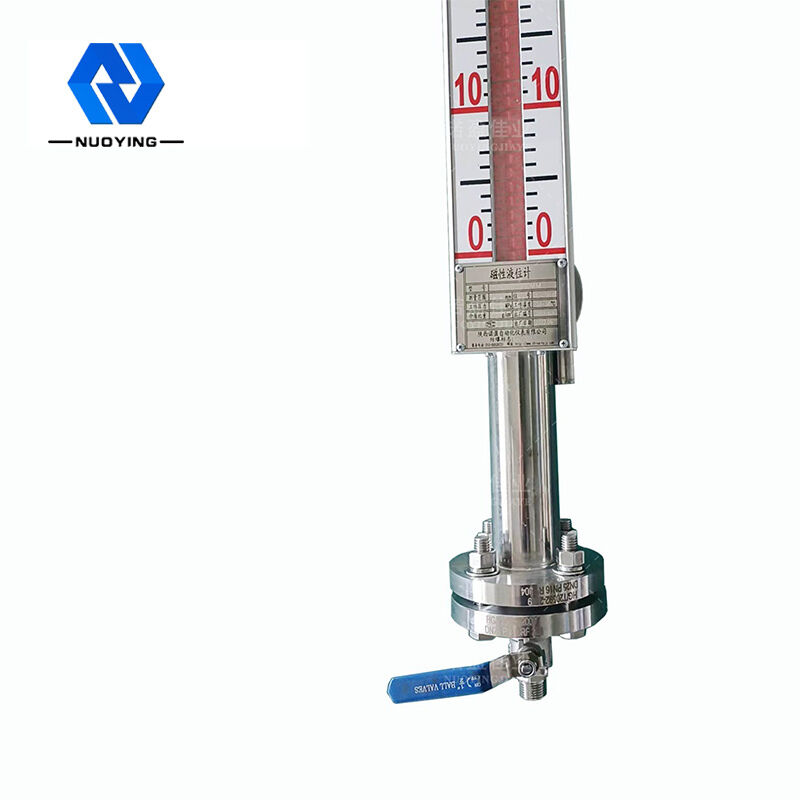

Top Mounted Magnetic Flap Level Gauge With High Accuracy
Working Principle of Top Mounted Magnetic Flap Level Gauge With High Accuracy
The magnetic flap level gauge is based on the principle of connecter and magnetic coupling to realize the real-time measurement of liquid level. When the liquid level in the measured vessel rises and falls, the magnetic float in the float will also rise and fall. The permanent magnetic steel in the float drives the magnetic flap outside the float to turn 180 ° through magnetic coupling. The two sides of the flap are painted with different colors (usually red and white) to indicate the position of the liquid level. Generally, when the liquid level in the container rises, the flap changes from white to red. When the liquid level in the container drops, the flap changes from red to white. The red white junction of the indicator is the actual height of the liquid level in the container, so as to achieve accurate measurement of the liquid level.
Design feature of Top Mounted Magnetic Flap Level Gauge With High Accuracy
◎ simple structure, solid and reliable, stable operation
◎ on site display scale is clear, striking and easy to read
◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid
◎ multiple installation forms and connection forms can be selected
◎ design pressure range: full vacuum to 10MPa
◎ design temperature range: - 160 ~ + 450 ℃
◎ professional design for special pressure and temperature
Technical parameters of Top Mounted Magnetic Flap Level Gauge With High Accuracy
| Typical application | Liquid level measurement |
|
product model |
NYUHZ |
| Installation form | Side mounted, top mounted |
| Body Material | 304,316 |
| measuring range | 0~6m |
| Measurement precision | ±3mm,±5mm, ±10mm, ±20mm (selectable) |
| Medium density | ≥0.425g/cm3 |
| Density difference | ≥0.1g/cm3 |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmission output | 4...20mA(power supply 24VDC) |
| Process Temperature |
-50~+350℃ |
| Process Pressure | -0.1~+16MPa |
| Process connection | flange(selectable) |
| resolution ratio | ±1mm |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
